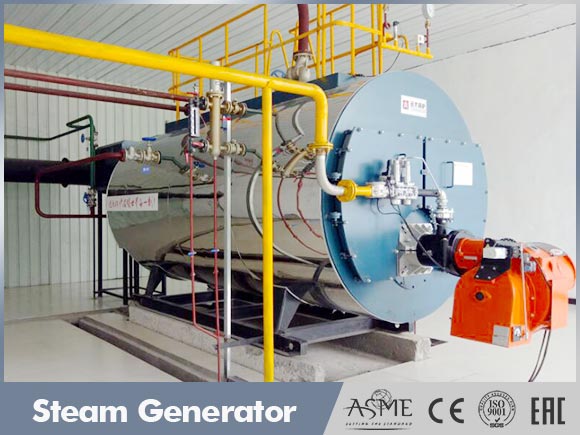

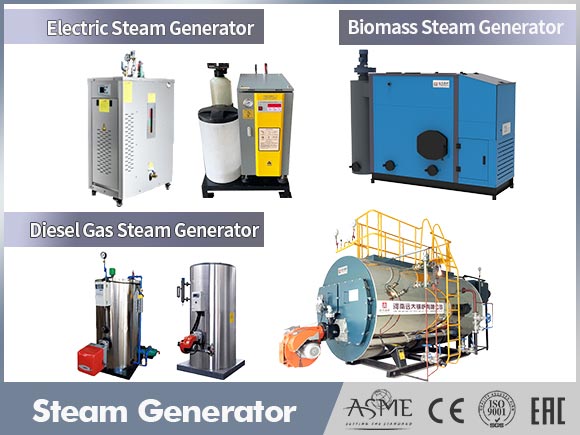

Steam generator
  • Steam generator

Steam generator

  • Capacity:30kg-1000kg
  • Pressure:0.4-1.6Mpa
  • Steam temperature:0-226℃
  • Structure:Water Tube
  • Application:Food Industry, Brewery, Dairy Products, Laundry, etc
Get price Send Message
Introduction

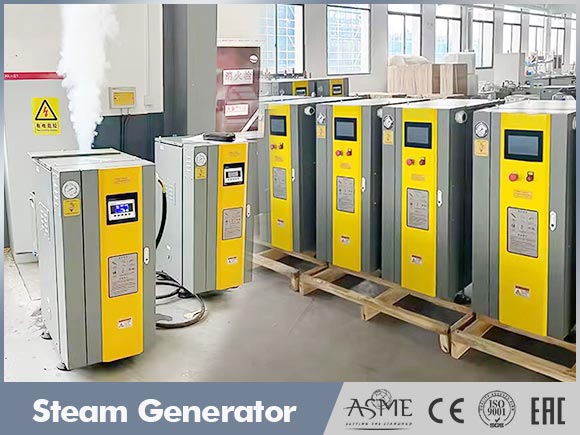

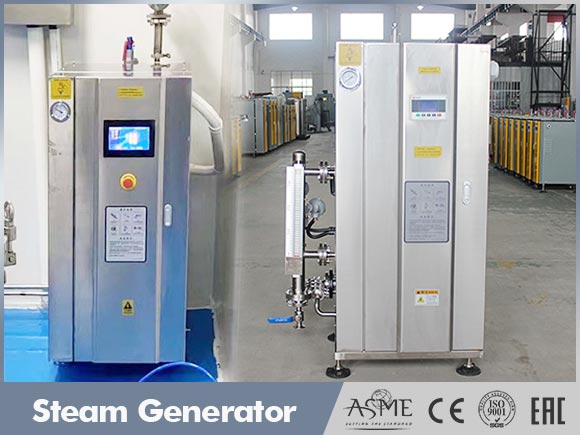

YD-CH36/48/72 is small capacity steam output electric power steam generator, design natural circulation model, there are water tubes inside, has high efficiency reach to 98%.
Steam Generator Advantages

1. The tank has a large steam storage space, and the steam is pure without moisture.

2. Temperature and pressure can be adjusted, power can be adjusted in four steps.

3. Mechanical float control water level, pure water can be used.

4. Small size, light weight, complete machine, easy to install.

5. Dual safety guarantee for adjustable pressure controller and safety valve.

6. Hydro-power independent box, convenient for maintenance and maintenance, safe and reliable.

7. Double set of high quality seamless stainless steel heating tubes, adjustable power.

8. Electric heating, no open flame, no safety hazard, with brakes Vientiane casters.

Application

1. Ironing washing industry---Dry cleaning machine, dryer, washing machine, dehydrator, ironing machine, iron, etc.

2. Electroplating cleaning industry---Bath of plating bath, acid bath, cleaning pool heating constant temperature;

3. Food processing industry---Tofu machine, rice noodle machine, steam box, sterilization tank, chartered plane;

5. Hotels, enterprises and institutions canteen and various service stations disinfection, steamed rice and water supply and other industries;

6. Biological chemical---Fermentation tank, reaction kettle, interlayer pot, mixer, emulsifying machine and other supporting use;

7. Packaging machinery---The label machine set standard machine supporting use;

8. Other industries---steam cleaning industry, (hotel, dormitory, school) steam heating or hot water supply, (bridge, railway) concrete curing, etc.

Parameter
Model No. YD-CH36 YD-BH48 YD-BH72
Application Steam Generator Steam Generator Steam Generator
Power Electric Electric Electric
Number of Drums Single Singel Single
Pressure(mpa) 0.4 0.4 0.4
Rated Voltage(v) 380 380 380
Rated Power(kw) 36 48 72
Steam Capacity(kg/h) 50 65 100
Saturated Steam Temperature(°C) 148 148 148
Steam Pipe Diameter(mm) 25 40 40
Sewage Pipe Caliber(mm) 25 40 40
Inlet Pipe Diameter(mm) 25 40 40
Thermal Efficiency 98 98 98
Cyclic mode Natural Circulation Natural Circulation Natural Circulation
Structure Water Tube Water Tube Water Tube
Length(mm) 770 870 870
Width(mm) 570 630 630
Hight(mm) 1060 1160 1160
