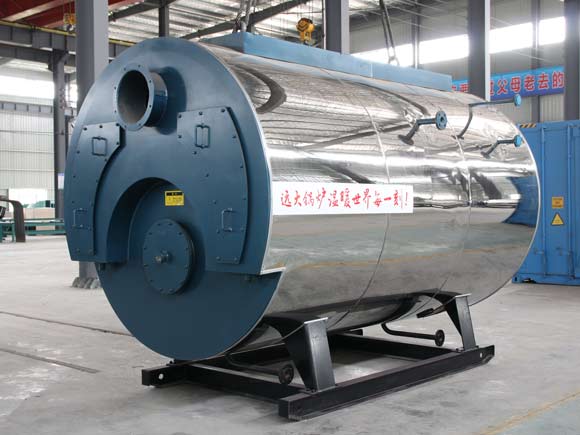

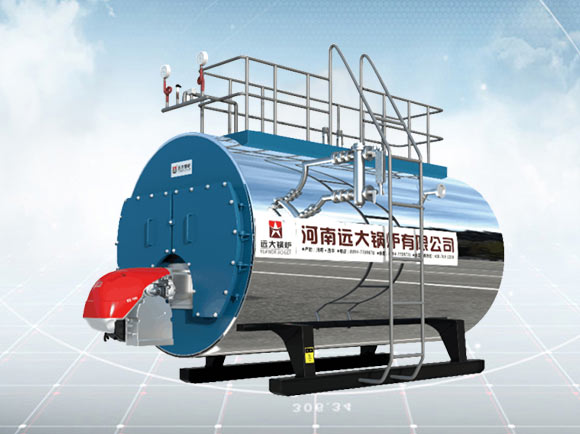

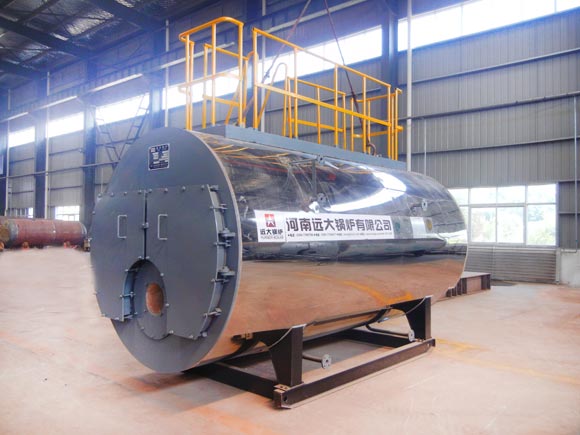

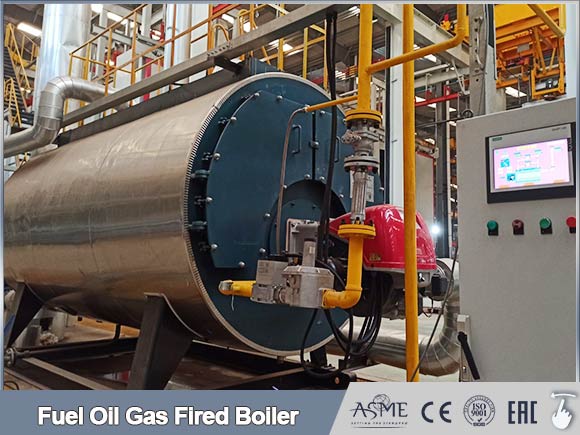

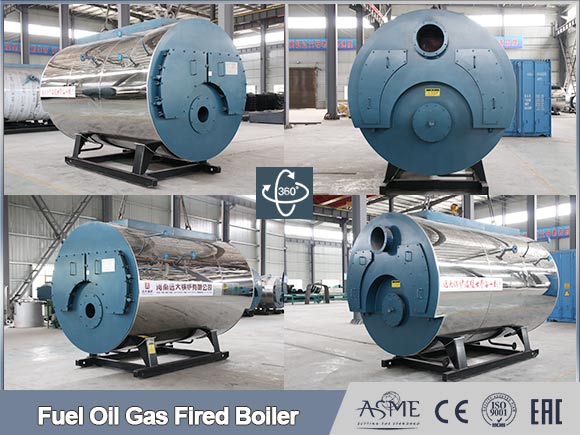

Gas/Oil Hot Water Boiler

  • Model:WNS
  • Capacity:0.3MW-30MW
  • Rated outlet temp.:95℃
  • Return Water temp.:70℃
  • Application:Center heating, Greenhouse, Hospital, Hotel, Swimming pool,etc
Get price Send Message
Introduction

Application:
Gas/Oil Hot Water Boiler generally used for following business: Schools, Hotel, Bath Center, Swimming Pool, Hospital,Hotel, Chemical plant, Textile plant, Food & Beverage, Garment, Paper Plant, Printing and dyeing mill, Cement Plant, Fertilizer plant, Feed mills, Rubber factory, etc

The most important thing is that our boilers are all tailor-made.They are designed all depending on your business,including on the fuel,capacity,pressure and so on you need.

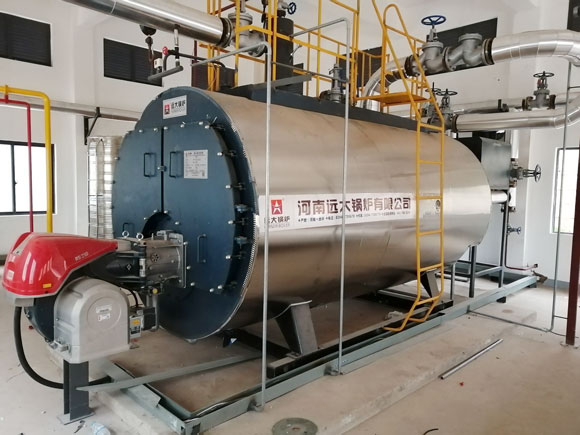

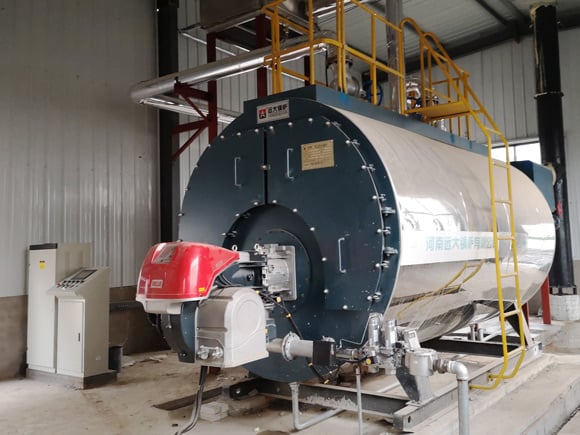

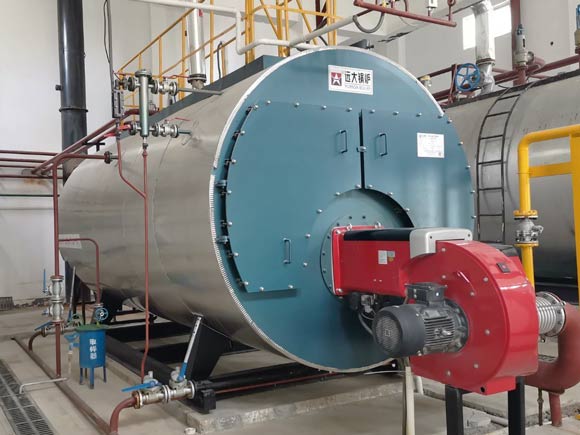

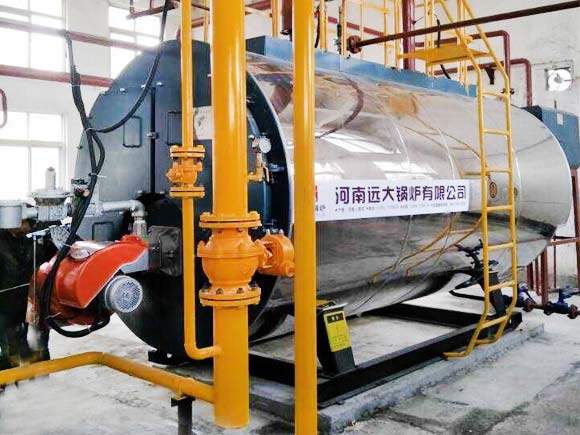

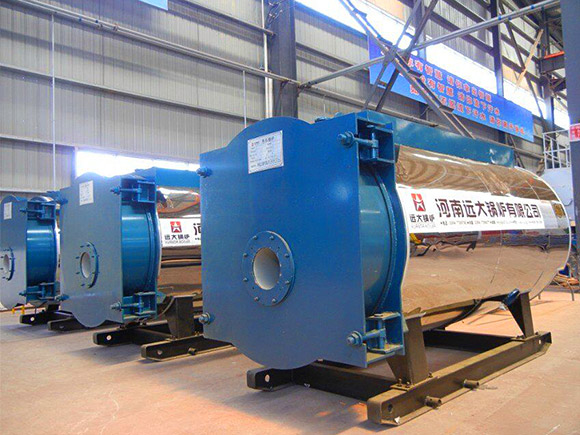

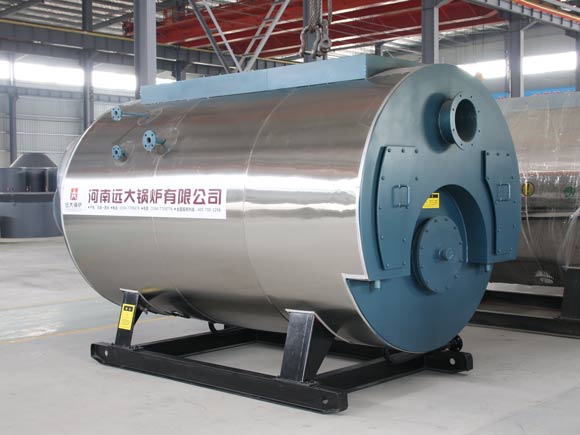

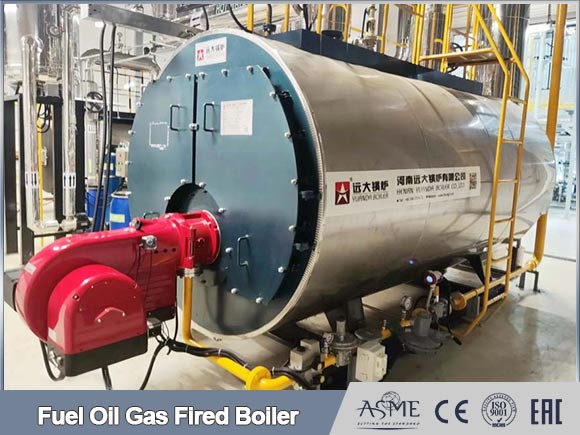

This boiler is horizontal type,fire tube,three pass shell boiler.It can burn heavy oil,light oil,city gas,natural gas,lpg,lng,cng(depend on the burner selected).Boiler furnace is corrugated furnace,burning under positive pressure,fully automatic control.

Accessories Of Gas/Oil Hot Water Boiler:

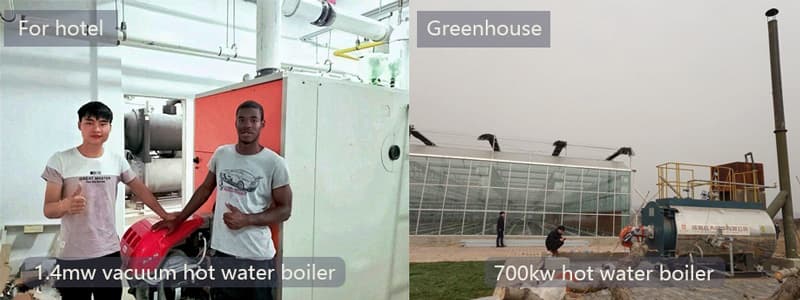

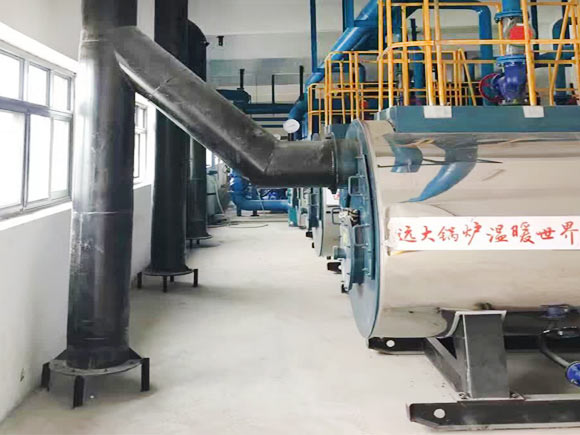

Customer visit:



Get Quick Quote & Professional Proposal For Your Project, Contact us Now !

Tailor-made boiler service, Email us at any time:shirley@yuanda-boiler.com

Features

This boiler flue gas flow have three pass, fuel oil atomized by the burner burn in the corrugated furnace( first pass),then go to the reversal chamber for fire tube( second pass),then go into front chamber for fire tube again(third pass),then go to reversal chamber to chimney. There are chamber door and hole for maintance.

Parameter
WNS series hot water boiler technology parameter table
Boiler model Rated capacity Rating pressure Rated outlet temp.
Return Water temp.
Fuel consumption Thermal efficiency Weight Dimensions
Light oil Heavy oil natural gas liquefied gas City gas
MW MPa Kg/h Kg/h m3/h m3/h m3/h

%

t mm
WNS0.7-0.7/95/70-Y(Q)
0.7 0.7 95 70 65.5 67.3 84.2 29 176 92 4.3 3561×1690×1910
WNS1.4-0.7/95/70-Y(Q)
1.4 0.7 95 70 129.6 132.2 165 57.3 346 92 7 4111×1950×2199
WNS2.8-0.7/95/70-Y(Q)
2.8 0.7 95 70 256 261.9 323.6 109 682 92 9.5 4732×2150×2448
WNS4.2-0.7/95/70-Y(Q)
4.2 0.7 95 70 380 390.6 450 164 1020 93.5 16 5500×2600×2990
WNS5.6-1.0/95/70-Y(Q)
5.6 1 95 70 503 517 642 209 1321 93.5 24.6 6450×2800×3200
WNS7-1.0/95/70-Y(Q)
7 1 95 70 628 643 805 264 1654 94 26.2 6800×2900×3394
WNS10.5-1.0/95/70-Y(Q)
10.5 1 95 70 940 965 1182 400 2417 94 37 7150×3200×3540
WNS14-1.0/95/70-Y(Q)
14 1 95 70 1250 1301 1597 520 3299 94 55 8200×3400×3826

Notes: The lower heating value of the fuel is calculated by the following values, light oil 10240kcal/kg, heavy oil 10000 kcal/kg, natural gas 8000kcal/Nm3, liquefied gas 24000 kcal/Nm3, and city gas 3800 kcal/Nm3. The parameters are for reference only. If the technology is improved, please refer to random technical parameters.
