Step Grate Biomass Boiler, Reciprocating Grate Biomass Boiler
Step Grate Biomass Boiler, Reciprocating Grate Biomass Boiler
  • biomass reciprocating grate boiler
  • step grate biomass boiler
  • biomass steam boiler
  • Step Grate Biomass Boiler, Reciprocating Grate Biomass Boiler
  • Step Grate Biomass Boiler, Reciprocating Grate Biomass Boiler

Biomass Bagasse Straw Boiler

  • Capacity:1t/h-50t/h
  • Pressure:0-3.8Mpa; 0-38Bar

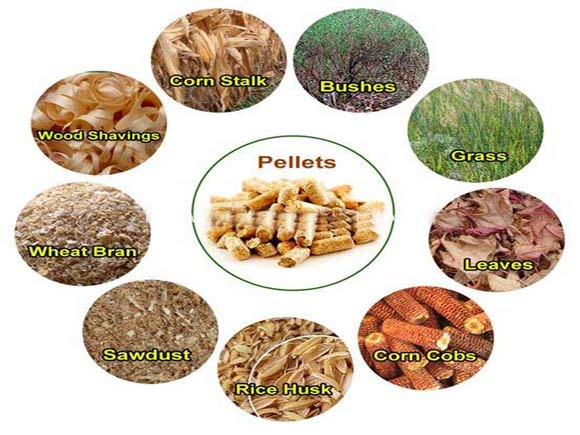

  • Fuel:Biomass, coal, palm shells/fibre, bagasse, husk, straw, sawdust...
  • Features:Large stove biomass boiler / step grate biomass boiler / reciprocating grate biomass boiler / bagasse boiler / sawdust boiler / palmshells palmfibre boiler
Get price Send Message
Introduction

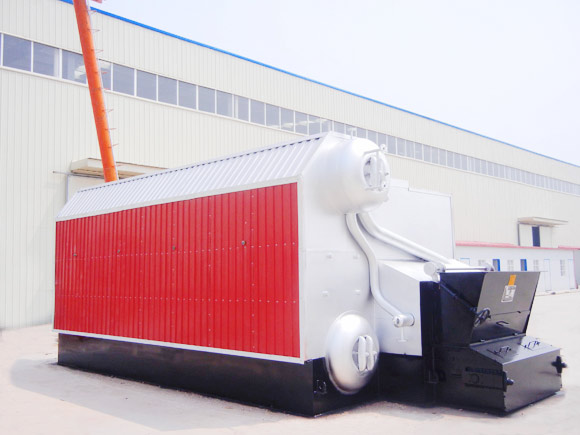

SZL reciprocating grate /step grate biomass boiler, its doule drums and water tube boiler, scientifically design stove furnace to reach a higher thermal efficiency and energy saving, also environment protection.

step reciprocating grate biomass boilerreciprocating grate, step grate

Patents Technology Biomass Boiler

1. The hearth is designed with a cyclone reburning chamber, and high temperature fume achieves the effects of primary dedusting energy conservation and environmental protection through high speed revolution, mixed combustion and dust separation;

2. With a hearth with large volume and strong coal adaptability, it can use various biomass as the fuel;

3. It has large heating surface, rapid boost, sufficient capacity, rapid warming and low energy consumption.

Diagram Boiler System

biomass boiler, biomass fired boiler, biomass steam boiler

Whole System Equipment List
Boiler Body Forced/ID Fan Slag Remover Water Softener & Tank Steam Header
Control Cabinet Dust Collector Water Pumps Chimney Boiler Sample-Water Cooler
Biomass Feeding Device Grate Speed Regulator Economizer Pipes & Gauges & Valves & Instrument
PS: If you need price list for all items, ask by shirley@yuanda-boiler.com

You may like

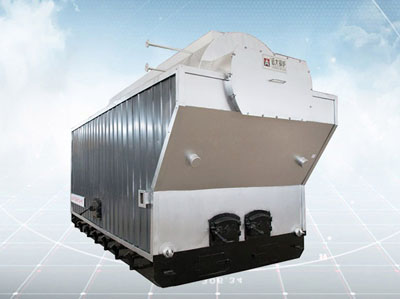

 DZG fixed grate boiler       DZL chain grate boiler      DZH travelling grate boiler


DZL biomass boilerDZH biomass boiler

Why Choose Us ?

1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.

2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.

3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.

4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.

Global Boiler Service

1. Offer catalogue, various boiler model for choose, inquire one you prefer.

2. Technical discussion on boiler system solution for your company use.

3. Warmly welcome all customers come to visit the production base

4. Trustable after sale service, for boiler installation, training operators.

5. Whole life service for boiler consult, contact us whenever.

6. We are one of the leading enterprises which first obtained the national boiler manufacturing license in China. Until 2019, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !

Yuanda Boiler Factory

Parameter
SZL Series Steam Boiler Technical Parameter Table
Model Rated capacity(t/h) Rated pressure (Mpa) Rated steam temperature(℃) feed temperature(℃) Thermal efficiency(%) Boiler water volume(m³) Exhaust temperation(℃) Fuel comsumption(Kg/h) max transportation weigh(t)
SZL2 2 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >83.13 6.76 130.7 385.8 22
SZL4 4 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.23 5.1 142 807 29
SZL6 6 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >84.81 8.4 142 1209 34
SZL8 8 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >85.02 9.4 149.1 1563.9 40.5
SZL10 10 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.2 8.35 152.7 2149.3 24
SZL12 12 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.56 12.8 148.7 2399.7 37
SZL15 15 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.29 15.2 149.8 2568.4 24.7
SZL20 20 1.25/1.6/2.5/3.82 194/204/226/450 20/104 >86.8 15.5 147.4 4266.9 26
Note: Parameter is for reference only, if any changes should follow the factory technical data.
