Biofuel Boiler  #biomass-boiler #biomass-gas-boiler

Yuanda Boiler Projects Cover 132 Countries & Regions, Qualified With Internation Standard ISO CE ASME DOSH EAC.

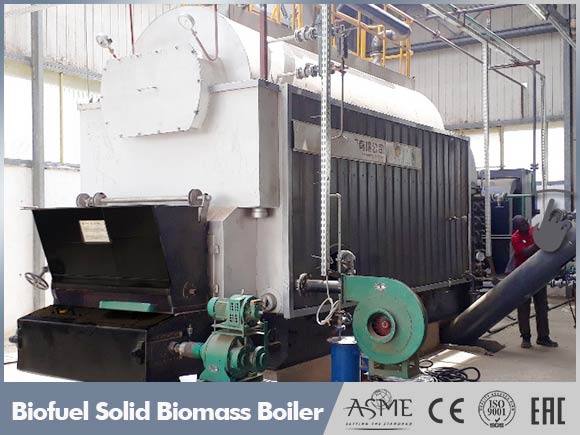

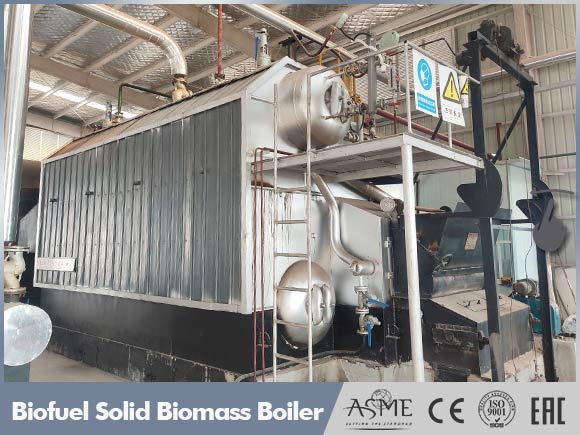

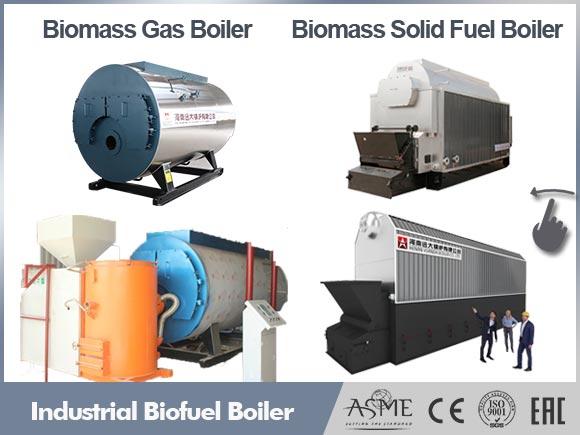

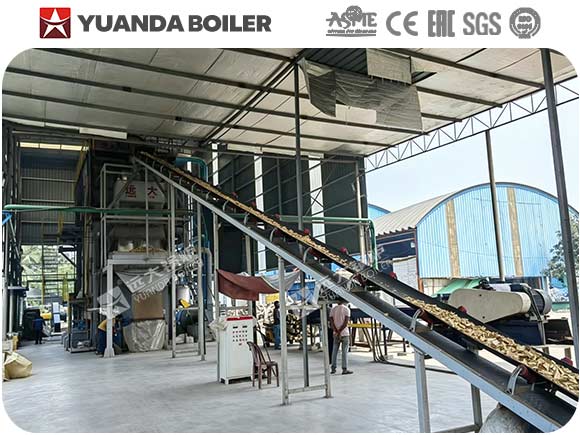

 Solution A  Solid Biomass Boiler

DZL Chain grate biomass boiler, it is horizontal three-pass water & fire tube boilers with grate combustion device. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides from a radiation heating surface in the furnace.

 DZL Biomass Boiler Features

1. Smoke and dust separator chamber

Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.

2. Optimized design CAD

Choose the best furnace from dozens of options,improve economical efficiency.

3. Convex tube plate

1) Improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.

2) Prevent tube plate cracking, cancel bracing,simplify the structure.

4. Large size of simple circulation loop drop pipe and lower set box

Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle

5. New pattern of furnace arch

Strengthen the combustion, could burn kinds of fuel: wood, coal and biomass, improve combustion efficiency.

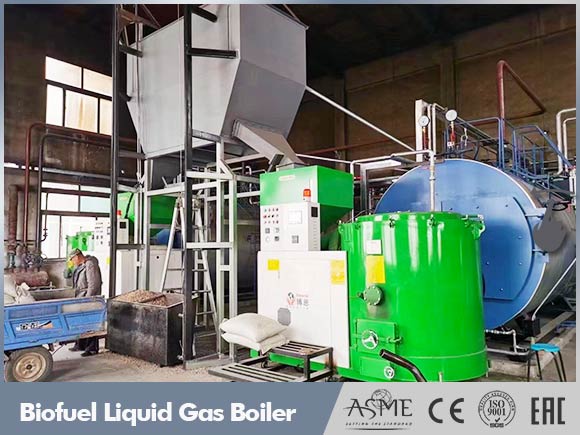

 Solution B  Biomass Gas Boiler

Biomass Gas Boiler, fuel power is gas extracted from biomass.

 Biomass Gas Boiler Features

1. The biomass burning boiler Integrated the advantages of chain type biomass boiler and gas boiler.It is biomass fuel boiler of low cost, energy conservation, environmental protection and thermal efficiency can reach above 90%.

2. Installation is simple, maintenance is convenient.

3. The structure of three return, threaded pipe technology and the characteristics of the wet back structure, increase the heating area. improve the efficiency of the boiler.
