5kw-90kw Electric Heating Boiler
- Thermal Power：5kw-90kw
- Heating Space：50-1000㎡

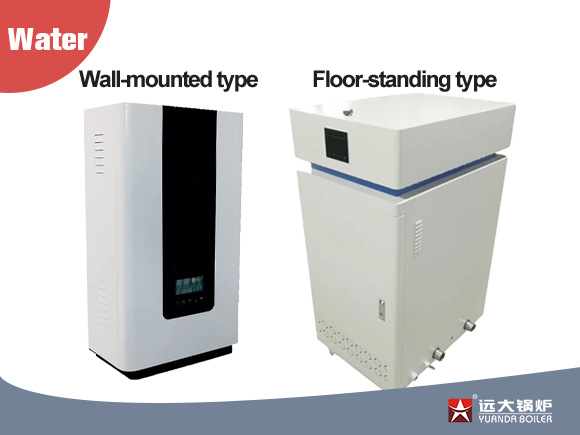

- Types：Wall-mounted or Floor-standing
- Voltage：Available in 220V 380V
- Features：High thermal efficiency 98%, Intelligent Funtions, No Noise, No Scaling, 100% Safety with multi-protections
Nano Electric Heater Boiler Intro

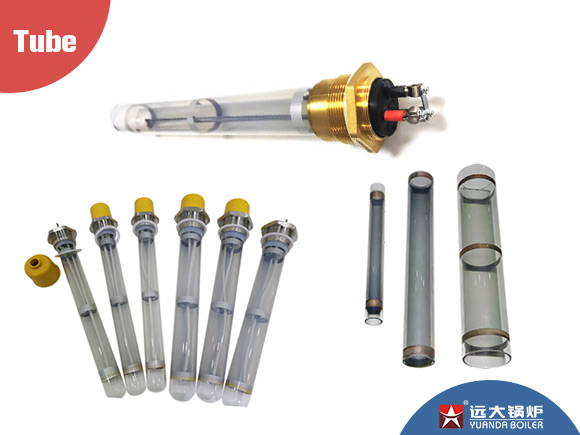

Nano-coating technology heaters are mainly used for liquid/air heating. It has acid resistance, alkali resistance, corrosion resistance, no fouling, and has a service life of up to 20,000 hours (1000 hours for traditional heater products),It is well received by domestic and foreign customers.
The nano electric heating boiler adopts the technology imported from Germany, which is made by our company with special technology. It can save energy of 30-40% more than the conventional resistance wire heating method,and the product life is up to 5-10 years.
Thermal Capacity: 5kw 10kw 15kw 20kw 30kw 45kw 60kw 90kw
Electric boiler suitable for central heating & water heating in household, gym, school, hotel, commercial heating, agricultural, etc.
Advantages Nano Electric Boiler
98% Thermal Efficiency
The thermal efficiency of nano-tube is up to 98%, 20%~30% power saving than conventional electric heating tube.
100% Safety
Automatic Disconnection/Opening of Temperature Short Circuit.Not easy to scale,long product life, semi-permanent. Automatic water replenishment and power off for water shortage.
High Tech Design
Hydropower separation, noiseless, no radiation, quiet and comfortable space for you and your famaily.
Super Advantage
Almost no scaling, long lifespan time, semi-permanent, clean pipeline.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
| Model | Type | Power | Voltage | Heating Area | Weight | Size L*W*H (cm) |
|---|---|---|---|---|---|---|
| YD-005 | Wall-mounted | 5kw | 220V | 50-60㎡ | 20kg | 41*21.5*72.5 |
| YD-010 | 10kw | 220V | 80-110㎡ | 21.7kg | 41*21.5*72.5 | |
| YD-015 | 15kw | 380V | 110-160㎡ | 28.5kg | 45*26*72.5 | |
| YD-020 | Floor-standing | 20kw | 380V | 160-220㎡ | According to reality | 60*60*85 |
| YD-030 | 30kw | 380V | 220-330㎡ | 60*60*85 | ||
| YD-045 | 45kw | 380V | 330-500㎡ | 60*85*110 | ||
| YD-060 | 60kw | 380V | 500-660㎡ | 60*85*130 | ||
| YD-090 | 90kw | 380V | 660-1000㎡ | 60*85*135 | ||
| if any data changes, obey to factory. | ||||||
