6kw-7000kw Steam Generator
- Capacity:6kw-7000kw
- Work Pressure:1bar-20bar
- Heating Temperature:0-300℃
- Application:Food Industry, Brewery, Dairy Products, Laundry, etc
- Features:Kinds of Steam Generator such gas steam generator, electric steam generator, diesel steam generator, pellets steam generator

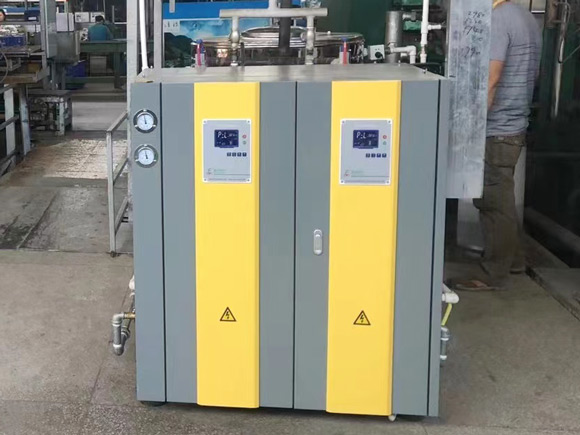

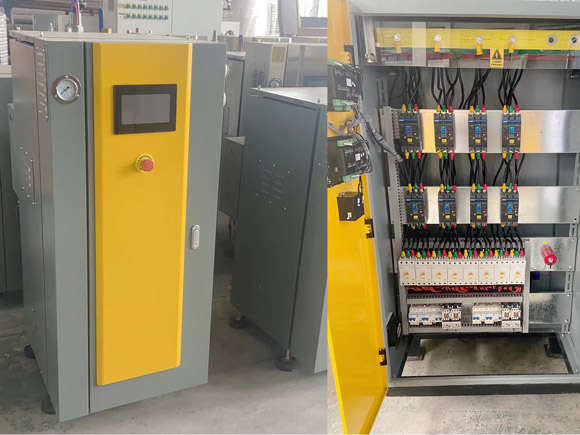

1. Electric Steam Generator 6kw-7000kw
LDR electric steam generator,fully-automatic running by electricity power, quick start by one button, very simple structure steam generating machine which is easy to operate. You can use it 100% safety, available to move everywhere by using bottom wheel. Make your best economic and saving money choice-electric steam generator.
Advantages of Electric Steam Generator
1) Use LCD Automatic Intelligent Electronic Control System.
2) Use High-quality Core Components — Electric Heating Pipe.
3) Available to Move by Bottom Wheels, Portable Type.
4) Multiple Safety Interlock Protection, 100% Safety.
5) Set Reasonable Electric Load, Save Energy & Extend Life Cycle.
6) Easy to Install, Small Occupied Area, Quick Start in Five Seconds.
7) Scientific Design and Attractive Appearance, Beauty & Durable.
8) No Pollution, Environmentally Friendly and More Economical.
9) Fully Automatic Operating & Running, Help Saving Labor Cost.

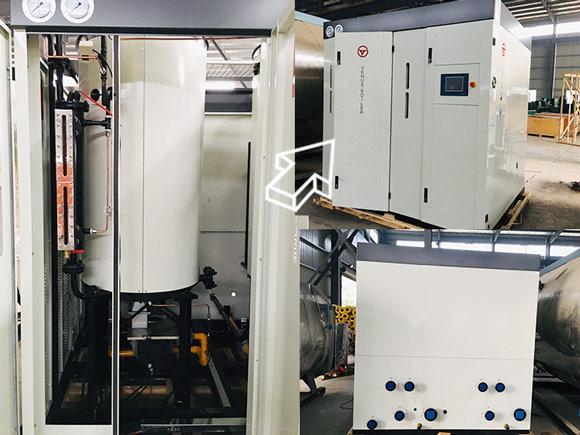

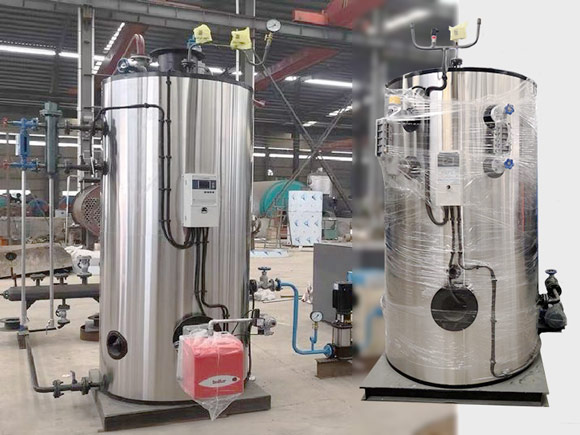

2. Gas/Diesel Steam Generator 70kw-7000kw
LSS series gas/diesel steam generator, water tube structure.
3. Pellets Steam Generator 45kw-7000kw
Wood/biomass pellet steam generator boiler, inner water-tuube & fire-tube heating, compact structure, small size, low noise, high thermal efficiency, modular integrity, good stability, movable type, able to connect with soft or hard pipes, easy to install etc.

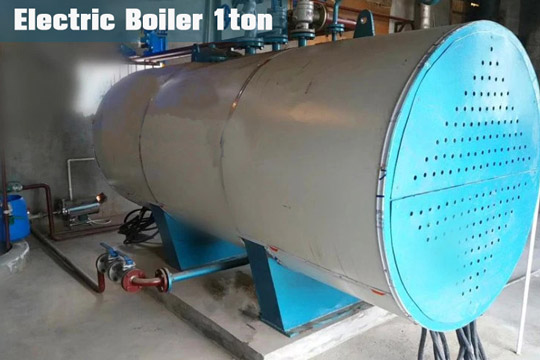

Related WDR Horizontal Electric Boiler
WDR series electric boiler, it is horizontal type electricity heating tube type boiler.
Link: https://www.yd-boiler.com/products/electric-boiler/electric-boiler.html
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
Model | Types | Thermal capacity (kg/h) | Thermal capapcity (kw) | Working pressure | Steam temperature | Thermal efficiency | Dimension (mm) | Weight (kg) |
---|---|---|---|---|---|---|---|---|
LDR0.013 | Vertical | 13 | 9 | 0.3Mpa-1.5Mpa 3bar-15bar (Customized design) |
130ºC-194ºC (Customized design) |
98%-99.5% | 650*390*750 | 70 |
LDR0.017 | 17 | 12 | 650*390*750 | 75 | ||||
LDR0.025 | 25 | 18 | 750*450*1050 | 90 | ||||
LDR0.035 | 35 | 24 | 750*520*1050 | 95 | ||||
LDR0.05 | 50 | 36 | 750*580*1150 | 101 | ||||
LDR0.065 | 65 | 48 | 800*580*1200 | 115 | ||||
LDR0.075 | 75 | 54 | 800*580*1300 | 140 | ||||
LDR0.085 | 85 | 60 | 800*600*1300 | 145 | ||||
LDR0.1 | 100 | 72 | 860*650*1390 | 172 | ||||
LDR0.11 | 110 | 80 | 860*650*1390 | 185 | ||||
LDR0.125 | 125 | 90 | 860*650*1430 | 190 | ||||
LDR0.15 | 150 | 108 | 920*760*1600 | 245 | ||||
LDR0.18 | 180 | 126 | 920*760*1600 | 260 | ||||
LDR0.2 | 200 | 144 | 1130*750*1780 | 450 | ||||
LDR0.25 | 250 | 180 | 950*900*1830 | 650 | ||||
LDR0.3 | 300 | 216 | 1320*1040*1920 | 760 | ||||
LDR0.4 | 400 | 288 | 1380*1040*2070 | 890 | ||||
LDR0.5 | 500 | 360 | 1020*890*2350 | 1020 | ||||
WDR0.5 | Horizontal | 500 | 360 | 1755*1180*1510 | 1400 | |||
WDR1.0 | 1000 | 700 | 2530*1380*1480 | 1730 | ||||
WDR2 | 2000 | 1400 | 2530*2000*2080 | 2730 | ||||
WDR3 | 3000 | 2100 | 2630*2210*2160 | 3420 | ||||
WDR4 | 4000 | 2800 | 3680*2360*2380 | 4320 | ||||
WDR5 | 5000 | 3500 | 3980*2580*2560 | 5130 | ||||
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
