Hotel Hot Water Heater Boiler Hotel Laundry Steam Boiler
- Products:Diesel Boiler, Lpg Gas Boiler, Electrical Boiler, Biomass Wood Boiler, Coal Boiler. Manufacture Code ISO CE ASME EAC
- Thermal Heat Capacity:100kw to 14000kw, 100000kcal to 12mkcal, 1mmbtu-100mmbtu
- Steam Capacity:100kg to 50000kg/hour
- Usage:Hotel system, swimming pool, laundry, kitchen...
Yuanda Boiler For Hotel, Laundry, Swimming pool, Kitchen

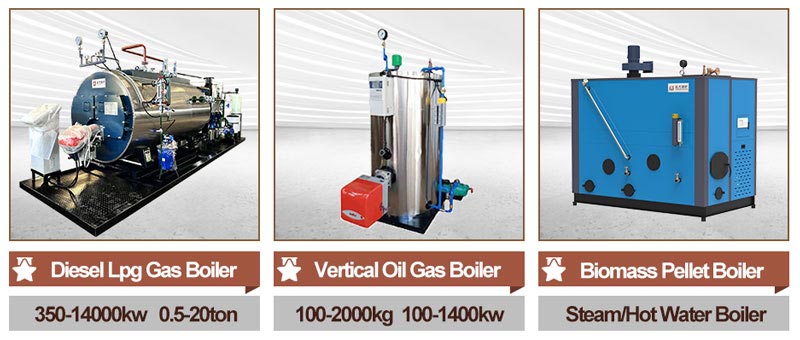

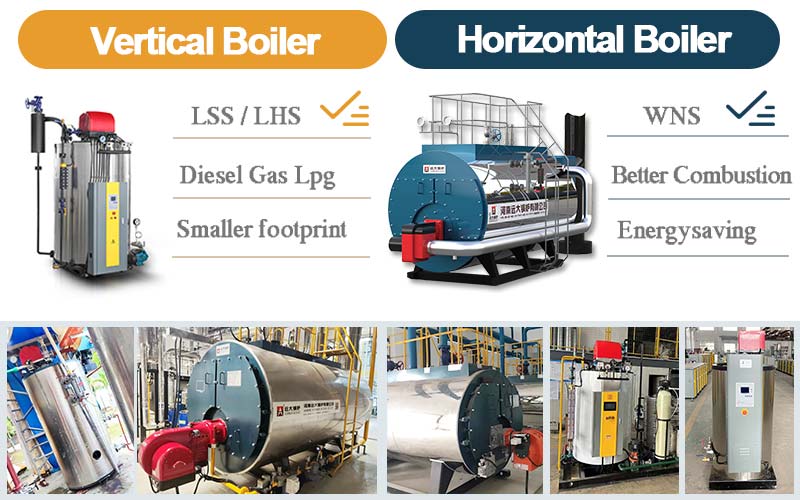

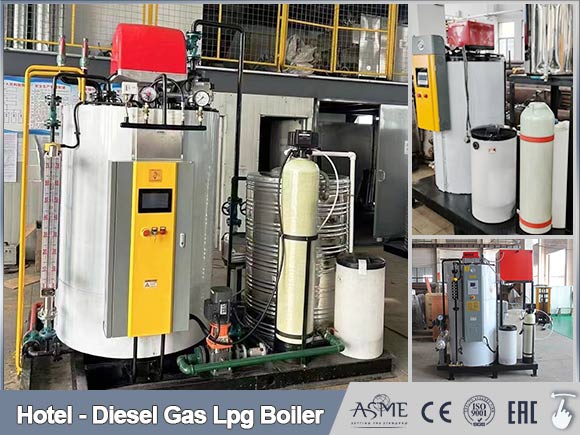

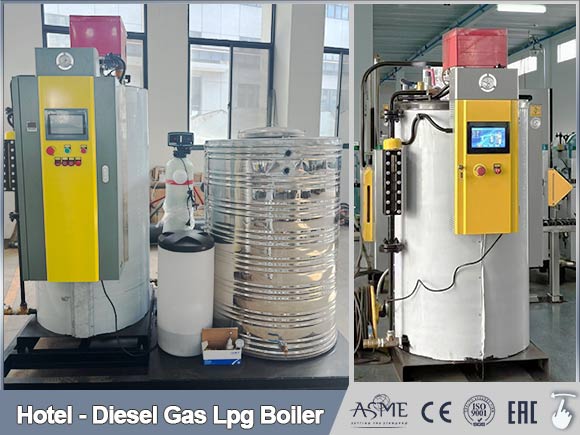

Diesel Lpg Gas Boiler

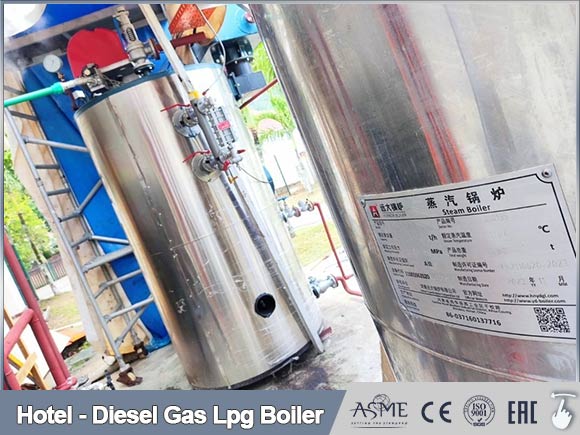

1. 100kw-14000kw Vertical diesel gas hot water boiler, smaller occupied area, simple structure, low cost, long lifespan.

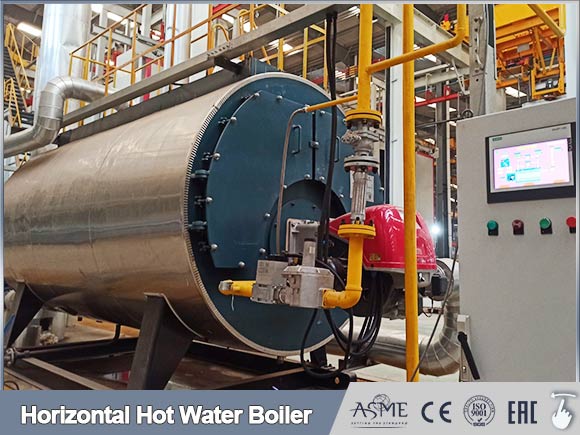

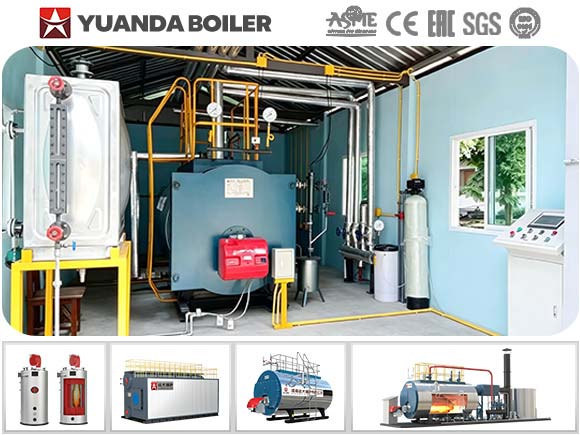

2. 0.35mw-28mw Horizontal diesel gas hot water boiler, packaged fire tube boiler & water tube boiler, with advantages of high efficiency, low emission, low running cost.

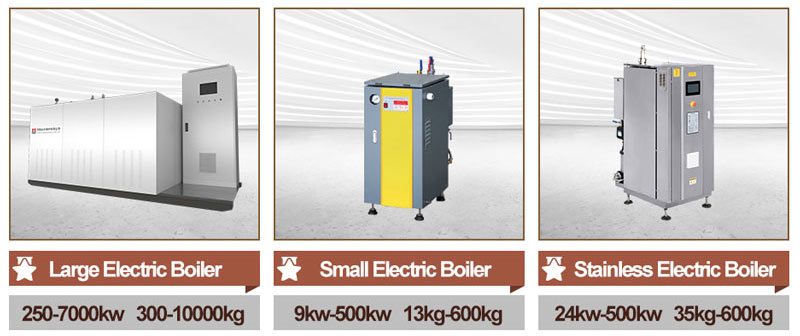

Electric Boiler

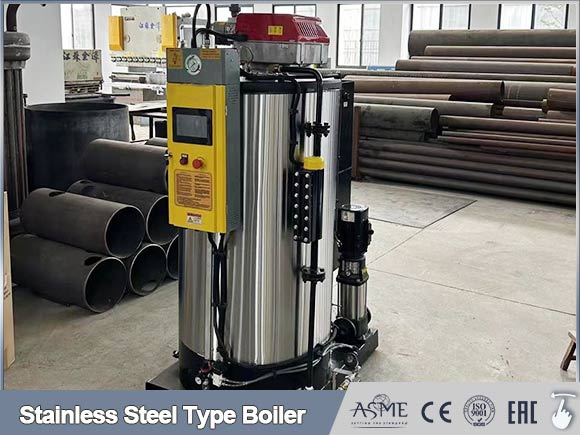

Electric hot water boiler & Electric steam boiler. Vertical or Horizontal type, no pollution, stainless steel materials, automatic control system.

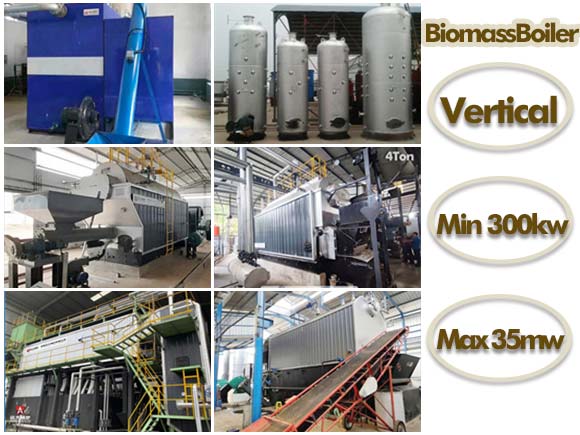

Coal/Biomass Boiler
1. Small coal / biomass fired boiler, in 46kw-1400kw. Manual feeding type, for greenhouse, swimming pool, hotel, factory system.
2. Large Coal Biomass Boiler 700kw 1400kw 2100kw 2800kw 4200kw 5600kw. Automatic or manual feeding type hot water boiler.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
Diesel Gas Boiler | Rated power(MW) | Rated pressure (Mpa) | Rated output temperature(℃) | Rated return water temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
---|---|---|---|---|---|---|---|---|---|
light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
WNS0.35 | 0.35 | 0.7/1.0/1.25 | 95/115/130 | 70 | >97 | 60-75 | 31.6 | 36.6 | 2.65 |
WNS0.7 | 0.7 | 0.7/1.0/1.25 | 95/115/130 | 70 | >97 | 60-75 | 60.4 | 69.3 | 4.66 |
WNS1.4 | 1.4 | 0.7/1.0/1.25 | 95/115/130 | 70 | >97 | 60-75 | 122.8 | 146.1 | 6.53 |
WNS2.1 | 2.1 | 0.7/1.0/1.25 | 95/115/130 | 70 | >97 | 60-75 | 192.3 | 227.1 | 7.3 |
WNS2.8 | 2.8 | 0.7/1.0/1.25 | 95/115/130 | 70 | >97 | 60-75 | 246.1 | 286.5 | 8.1 |
WNS4.2 | 4.2 | 0.7/1.0/1.25 | 95/115/130 | 70 | >97 | 60-75 | 367.1 | 412.6 | 15.1 |
WNS5.6 | 5.6 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 60-75 | 490.2 | 543.7 | 18.2 |
WNS7.0 | 7.0 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 60-75 | 593.6 | 660.7 | 25.6 |
WNS10.5 | 10.5 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 60-75 | 936.5 | 998.8 | 29.1 |
WNS14.0 | 14.0 | 0.7/1.0/1.25/1.6 | 95/115/130 | 70 | >97 | 60-75 | 1200.8 | 1330.7 | 47.8 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
