forno crematorio pet,incinerator animale pet,hornos crematorios para mascotas

Your position: Home > Products > Incinerator

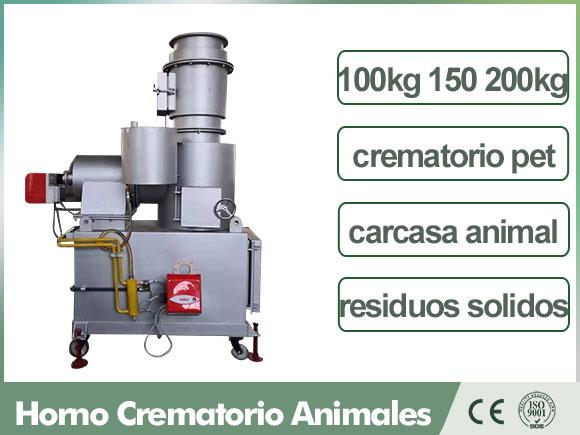

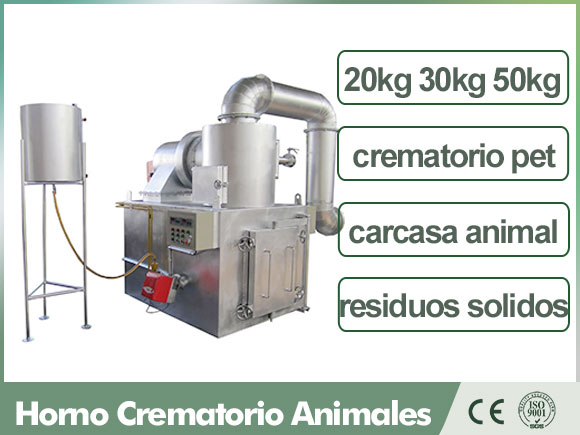

Horno Incinerador Animal Mascota Pet Gato Perro Animales Muertos Cremation Oven

Incinerador Para：Mascotas, Gatos pequeños y grandes, Perros, Animales muertos, Cerdos, Ovejas, Vacas, Pollos, Residuos sólidos

Power：Gas, Diesel, Waste Oil, Lpg, Heavy Oil

Diferente volumen：20kg 30kg 50kg 100kg 150kg 200kg 300kg 500kg

Working：Semi-Automatic

Manufacture Standard：ISO CE

Get price Send Message

Email:

shirley@yuanda-boiler.com

Tel/whatsapp:

+86-18236986701

Introduction 360° Show Parametro tecnico Product Case Inquiry

Introduction

20kg-1000kg Mascotas Animales Cremacion Incinerador

animals cremation furnace,pets crematione equipment,animals cremation oven

Venta caliente volumen del incinerador en 20kg 30kg 50kg 100kg 150kg 200kg 300kg 500kg 750kg

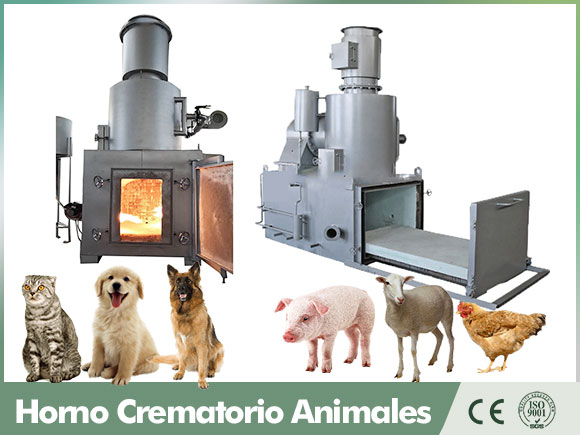

pets incinerator,dog cats incinerator,animals incinerator

Caracteristicas

1. Funcionamiento totalmente cerrado, adecuado para manipular desechos médicos infecciosos para evitar la contaminación secundaria.

2. Las tecnologías superiores hacen que la emisión de humo y el contenido de hollín sean inferiores a los estándares de emisión nacionales.

2. Tamaño pequeño y área de piso pequeña, también es de tipo portátil, puede usarlo de manera flexible.

3. No habrá humo, olor ni contaminación después de la quema de desechos.

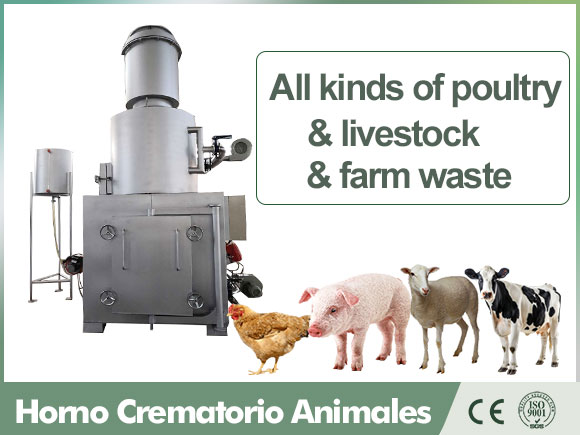

animals incinerator,pets incinerator,livestock incinerator

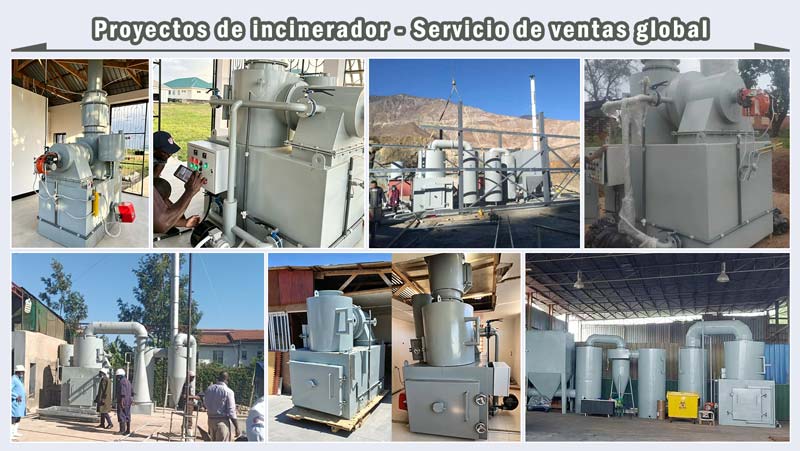

Projects Site

incinerators

Waste Incineration

1.Medical waste: syringes, neddles, gloves, straps, gauze, blood vessels, organs and other infectious waste.

2. Industrial waste (polymer waste): Plastic PE, PU, rubber (tire), Styrofoam, PET bottle, fiber, foam, cloth, bags, resin, acrylic, leather, Wood flour, urea powder, melon cloth, tapes, paints, polymers and so on.

3. General garbage: cardboard, paper scraps, sawdust, leaves and so on.

4. Special waste: waste oil, waste solvents, oil sludge, ash dust, iron paint, mold filter residue and so on.

5.Animal carcass cremation.

360° Show

medical incinerator, pet cremation incinerator

animals incinerator,china incinerator,pets incinerator

Parameter

Modelos		YDF-20	YDF-30	YDF-50	YDF-100	YDF-150	YDF-300	YDF-500
Capacidad procesamiento (kg/lote)		10-20	20-30	30-50	50-100	100-150	200-300	300-500
Working Hours Per Batch Cycle* (min)		90-120
Primary Chamber Volume (m3)		0.2	0.38	0.5	1	1.5	2.4	3.5
Waste Feeding Gate Size (mm)		380 x 480	480 x 600	620 x 800	700 x 900	760 x 960	900 x 1100	1080 x 1280
Temperature (℃)	Primary Chamber	900
Temperature (℃)	Second Chamber	1300
Smoke Residence Time (s)		> 2 sec in second chamber
Applicable Waste Type		Hazard Medical Waste/Consumables, Plastic, Paper, Domestic Waste, Animal Corpse, Electronic Component
Primary Burner - Baltur Italy		BTL-6, 0.11kw	BTL-6, 0.11kw	BTL-10, 0.11kw	BTL-10, 0.11kw	BTL-10, 0.11kw	BTL-10, 0.11kw	BTL-14, 0.18kw
Second Burner - Baltur Italy		BTL-10, 0.11kw	BTL-14, 0.18kw	BTL-14, 0.18kw	BTL-20, 0.18kw	BTL-20, 0.18kw	BTL-26, 0.25kw	BTL-35, 0.37kw
Total Diesel** Consumption (litre/h)		11-18	11-18	14-23	16-35	16-35	20-40	38-57
FD Fan Power (kw)		0.37	0.37	0.55	0.75	0.75	0.75	0.75+0.75
Applicable Voltage		380V 3Phase / 220V 1Phase
Outer Dimensions (m)		1.6 x 1.3 x 2.65	1.45 x 0.9 x 2.6	1.8 x 1.2 x 3	1.86 x 1.4 x 3.2	2.1 x 1.5 x 3.5	2.25 x 1.6 x 3.8	3.0 x 2.0 x 4.8
Chimney Dimensions (mm)		φ280 x 6000	φ280 x 6000	φ300 x 9000	φ330 x 9000	φ380 x 9000	φ400 x 9000	φ460 x 9000
Weight (kg)		2000	3000	5000	6800	8000	9600	15000
Manufacturing Standard		GB 18484-2020 (equals to EPA or EU standards)

Product case

pig incinerator,slaughter house incinerator,agricultural waste incinerator

Albania Slaughterhouse Animals Waste Incinerator 500kg/batch Automatic Incinerator

dog cremation machine,pet cremator,pet incinerator furnace

YDF-30 Incinerator For Pet Dog 25kg Cremation Service

pet cremation service machine,pet incinerator furnace,pet cremation equipment

Australis Client Order Small Pet Cremation Incinerator Furnace 50kg
