Textile Dyeing  #Steam-Boiler #Thermal-Oil-Boiler

Steam Boiler To Heating the dye bath: Textile materials are immersed in a dye bath containing water and dye. The steam boiler is used to heat this dye bath to the required temperature for dyeing

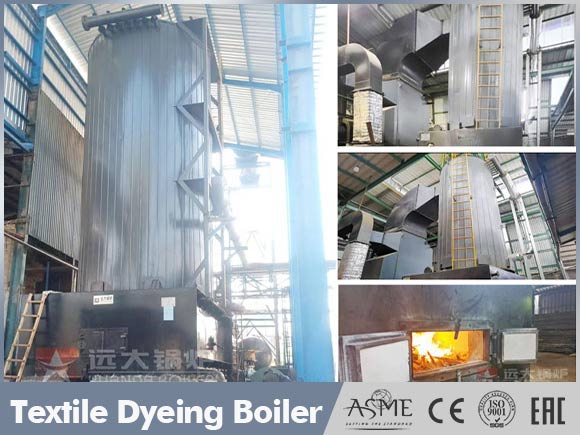

Thermal Oil Heater Boiler For Heat transfer: Thermal oil boilers heat up a thermal fluid, typically a specialized oil, to high temperatures. This heated oil is then circulated through heat exchangers or directly to the dyeing equipment where it transfers heat to the dye bath or dyeing machinery.

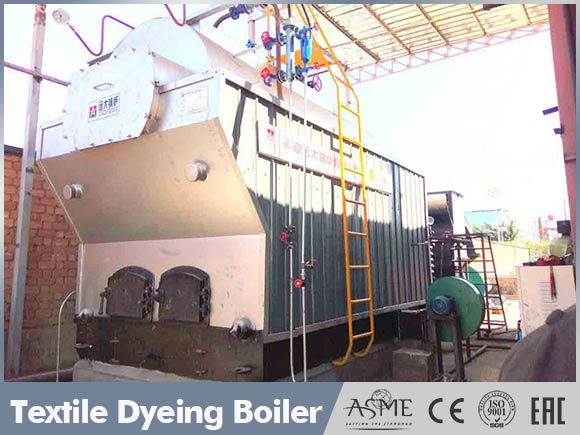

 Steam Boiler  Automatic Biomass Coal Boiler

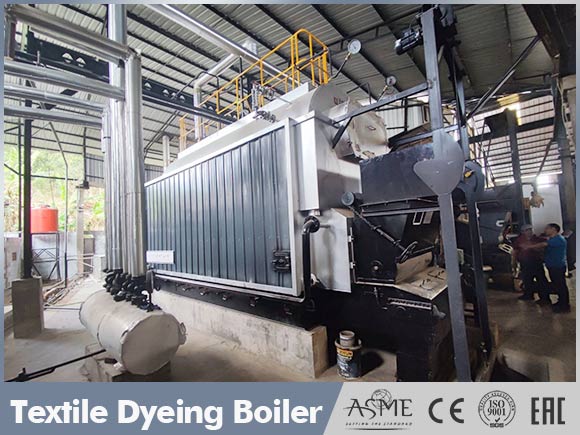

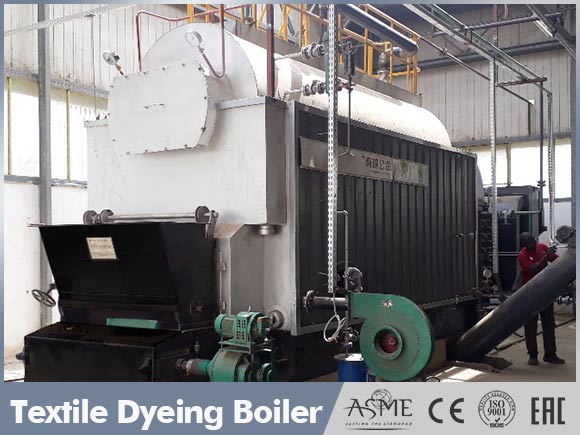

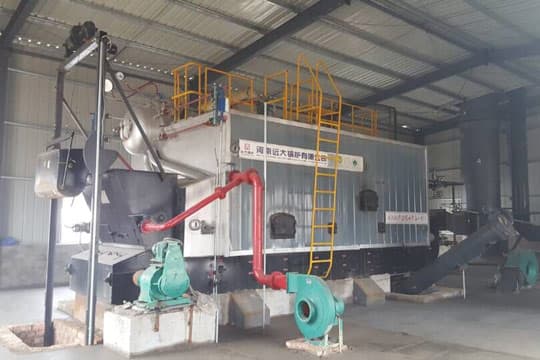

DZL series chain grate boiler, it is horizontal three-pass water-tube & fire-tube boiler. DZL use chain grate combustion stoker for coal combustion efficiently, automatically.

1. It could burn coal, biomass, wood, ricehusk, palm shells, bagasse, solid waste.

2. Water-tube and fire tube use spairally corrugated tubes, enhance heat transferring

3. Furnace arch with upside down "α" flue gas flow, make coal/biomass burning sufficiently

4. Set steam-water separaing equipment, has high-quality & sufficient steam output

Boiler Characteristics:

1. Easy Installation: Fast-assembly leave from factory, easy to transport and install at site.

2. Full Combustion: Reasonable design of furnace structure with best suitable grate device, fuel fired fully.

3. High Efficiency Grate: Chain grate, easy operation, have lots of advantages compared to traditional grate.

4. High Security: Equip with water lack protection and over pressure protection devices, security and reliable.

5. Long Life and Durable: Advanced production processes, strict quality inspection, boiler life span above 20 years.

6. Environmental Protection and Low Noise: Low noise fans, dust remove device, meet local emission requirements.

 Thermal Oil Boiler  Burn Coal Wood Biomass

Coal/Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

Question: How boiler heating oil circulately ?

1. Feeding tansfer oil into boiler through oil-gas seperator powered by oil-pump.

2. Full-oil boiler, cold oil will stay forced circulating for 6-8Hours, sametime exhaust the gas in oil.

3. Then running thermal oil boiler, deliver the heat between heating equipment and boiler. It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

Boiler Characteristics:

1. Reach high temperature, boiler operation under low pressure, in stable heating and precise temperature control.

2. 100% safety, equipped with perfect device for operation and safety test. Alarm for over-temperature, for low flow.

3. Multi-loop coil design for thermal oil boiler inner structure, countercurrent heat transfer process of thermal fluid oil.

4. Energy saving, set up air preheater, waste heat boiler, reuse heat of thermal oil, make a higher thermal efficiency.

5. New furnace arch with upside down "α" flue gas flow, advanced and scientific fabric technology, improve burning effect.

 Catalogue   All Products

1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler

2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler

3. Electric boiler, Electric steam generator, Electric hot water boiler,

4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)

5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
