Palm Oil Mill Boilers
- Also Named：Palm Kernel Shells Boiler
- Capacity：1t/h-50t/h
- Pressure：0-3.8Mpa
- Heat Temperature：0-450°C
- Fuel：Palm kernel shells, Wood, Ricehusk, Coal, Agro waste
Most Popular Biomass Palm Kernel Shells Boiler
Steam Boilers are used to generate steam for sterilization of the palm fruits, extraction of oil from the fruits, and other heating processes in the mill.
Most popuar palm oil mill boiler, using palm kernel shells or empty fruit bunches as fuel. These biomass materials are by-products of the palm oil extraction process, making the overall production process more sustainable.

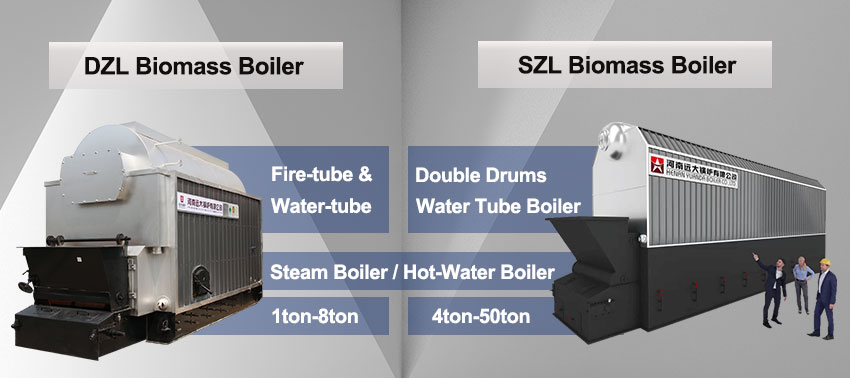

DZL & SZl series palm kernel shells fired boiler, 1ton-50ton/hour.

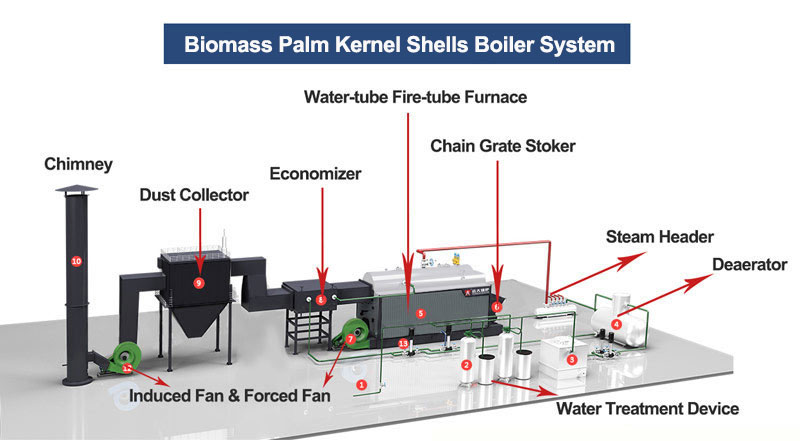

Palm Kernel Shells Boiler System Yuanda Boiler
Boiler & Accessories. (In complete system, some accessories are optional, also can add other accessories)

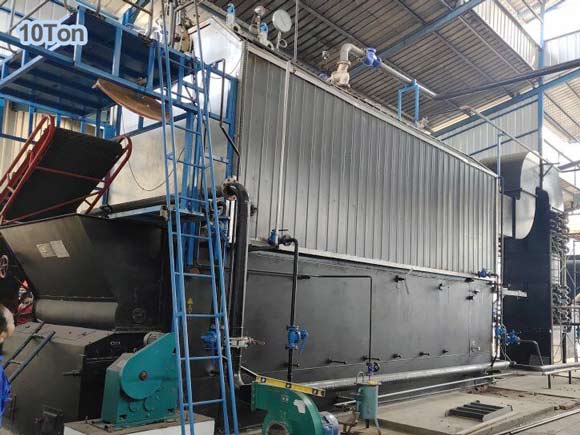

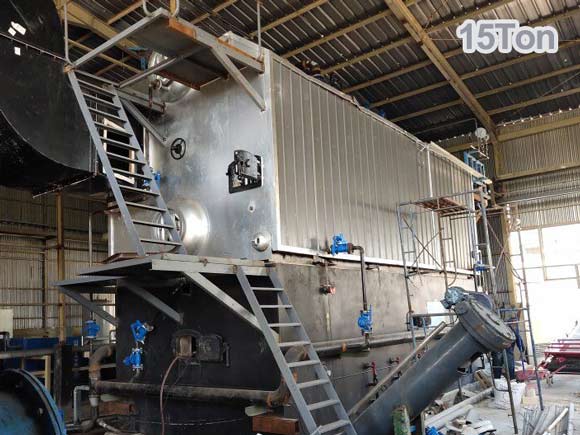

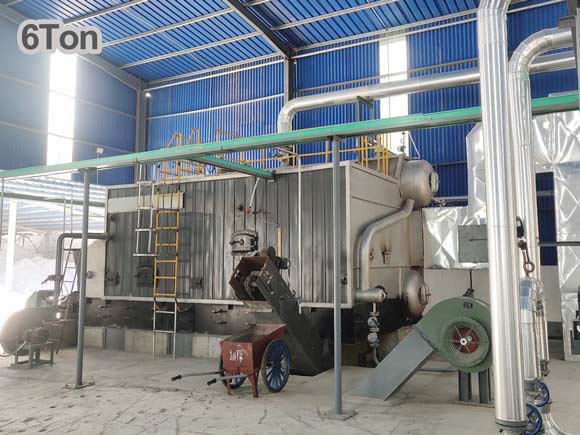

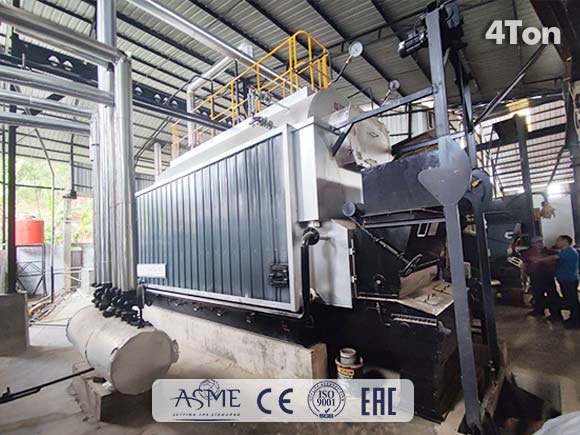

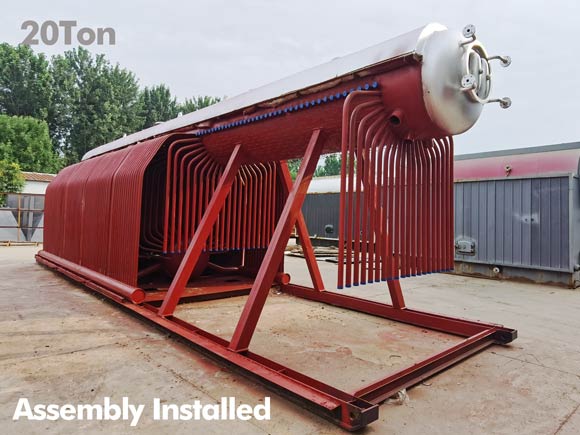

Biomass Boiler Projects 4ton-50ton
Yuanda boiler manufacture industrial biomass boiler, design according to customer's project.

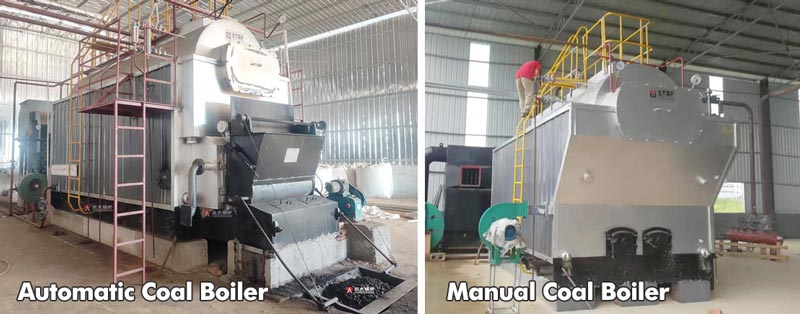

Related Coal Fired Boiler Projects

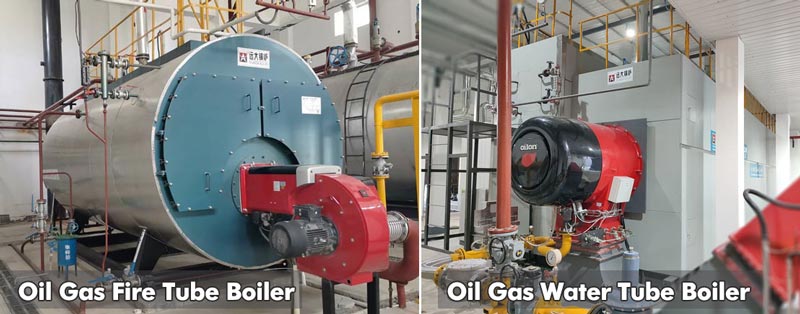

Related Oil Gas Fired Boiler Projects
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
| SZL Series Steam Boiler Technical Parameter Table | |||||||||
|---|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Boiler water volume(m³) | Exhaust temperation(℃) | Fuel comsumption（Kg/h） | max transportation weigh(t) |
| SZL2 | 2 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞83.13 | 6.76 | 130.7 | 385.8 | 22 |
| SZL4 | 4 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞84.23 | 5.1 | 142 | 807 | 29 |
| SZL6 | 6 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞84.81 | 8.4 | 142 | 1209 | 34 |
| SZL8 | 8 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞85.02 | 9.4 | 149.1 | 1563.9 | 40.5 |
| SZL10 | 10 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.2 | 8.35 | 152.7 | 2149.3 | 24 |
| SZL12 | 12 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.56 | 12.8 | 148.7 | 2399.7 | 37 |
| SZL15 | 15 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.29 | 15.2 | 149.8 | 2568.4 | 24.7 |
| SZL20 | 20 | 1.25/1.6/2.5/3.82 | 194/204/226/450 | 20/104 | ＞86.8 | 15.5 | 147.4 | 4266.9 | 26 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
