Portable Industrial Steam Generator Boiler Hot Water Boiler in Mobile Containerised in Skid Mounted
- Our Products:Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Capacity:100kg-20000kg, 100kw-14000kw
- Fuel:Oil Diesel Gas Bunker, Electricity, Coal Wood Biomass
- Working Pressure:1bar-38bar 0.1mpa-3.8mpa
- Manufacture Standard:ISO CE ASME DOSH EAC

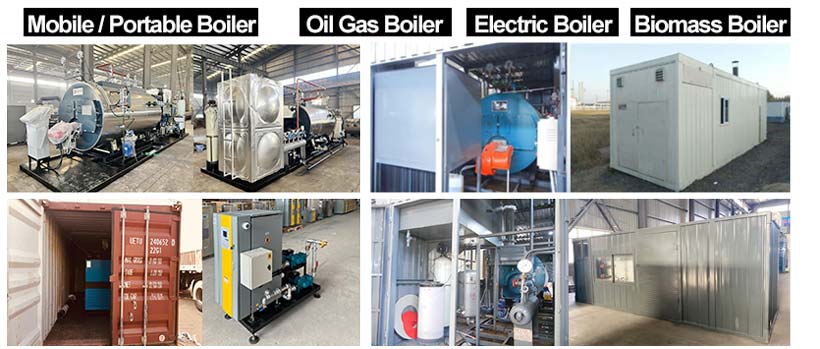

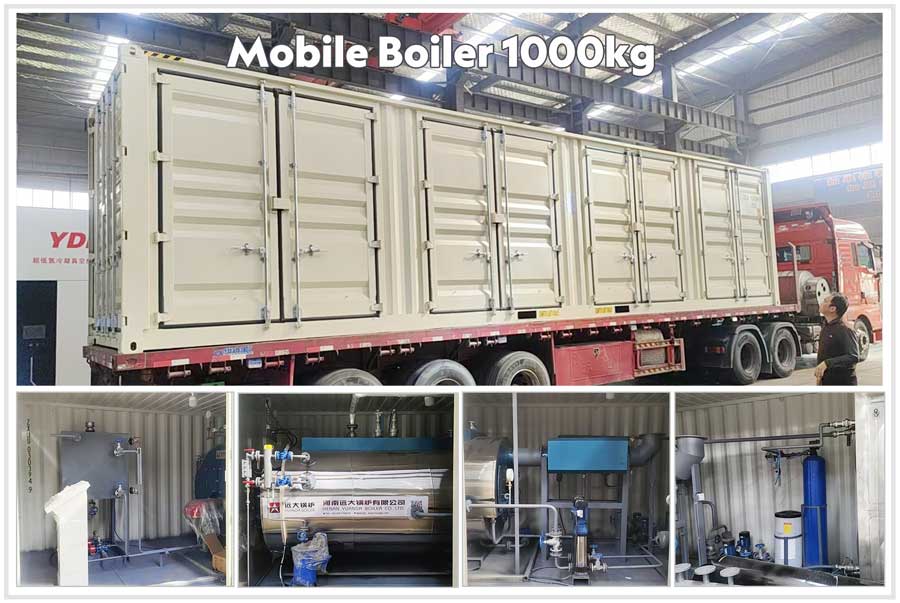

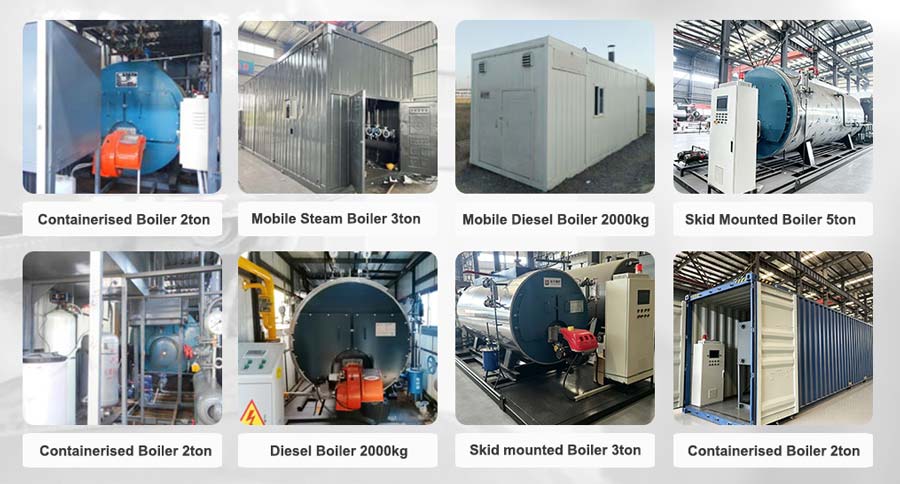

Portable Skid Mounted or Mobile Boiler
Portable Boiler working with Diesel, Gas, Heavy Oil, Electricity, Coal Wood Biomass

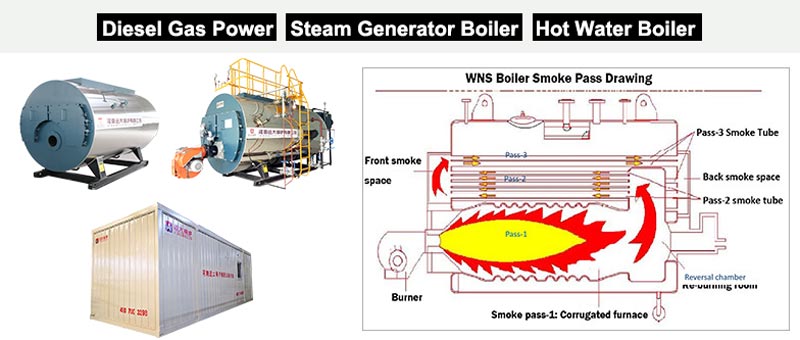

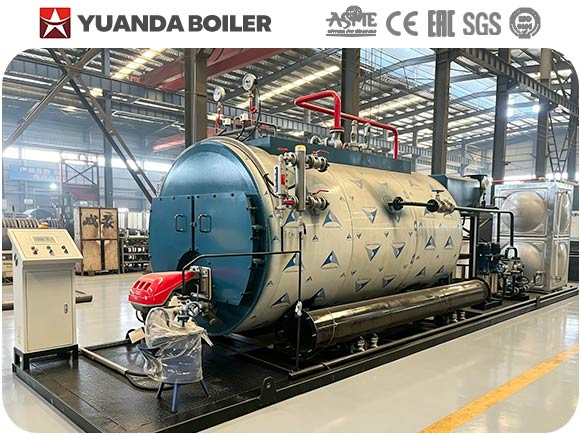

Hot Sell Diesel Gas Steam Generator Boiler
Thermal Capacity in 0.5ton-20ton/hour, 350kw-14000kw
Liquid Fuel Oil Diesel Gas Boiler, in Containerised or Skid Mounted Type. Before delivery, we will Install Boiler & Buner & All Accessories ready in container or plat form, Only need simple works for boiler running.
Boiler Advantages: Automatically gas/oil burner boiler, adopt three pass design, high efficiency 98% energy-saving low consump cost, equipped with economizer. It's kind of Full automatic steam boiler that burning diesel fuel, help saving your time and energy, widely used in oil fields and outdoor fields.
Yuanda Projects
Global Sale Service Cover 132 Countries Worldwide.

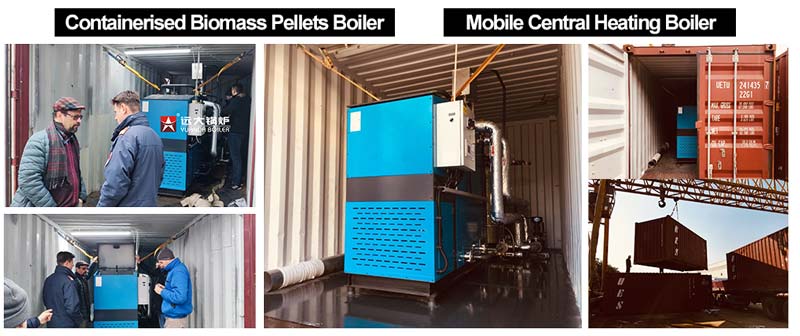

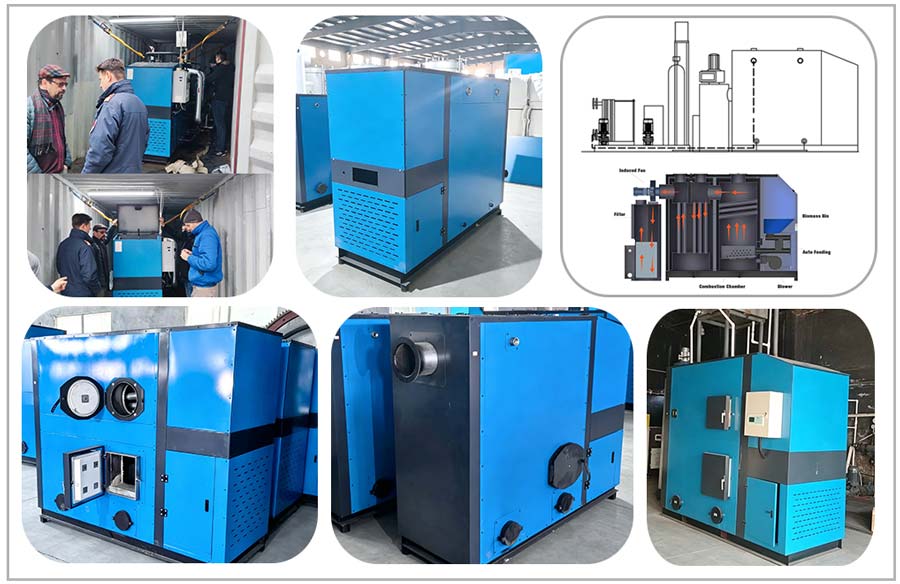

Hot Sell Containerised Coal Wood Biomass Boiler
Small coal/wood biomass hot water boiler in containerised, It's easier to transport everywhere if you need to use it. Widely used in district heating, home-heating, school-heating, buildings-heating, public area heating..

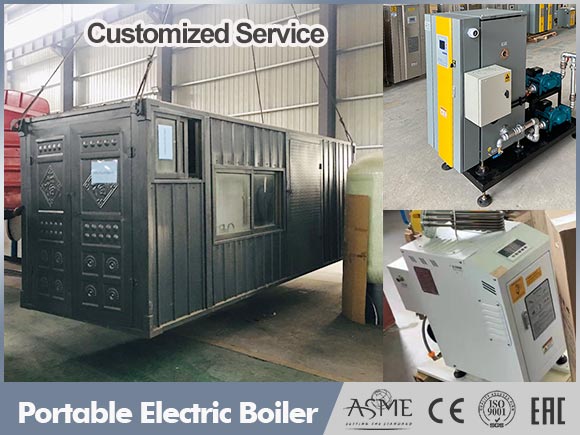

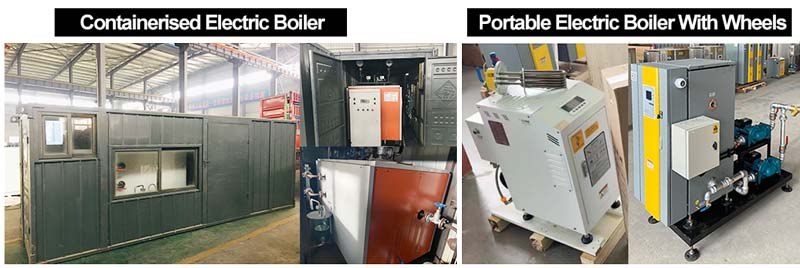

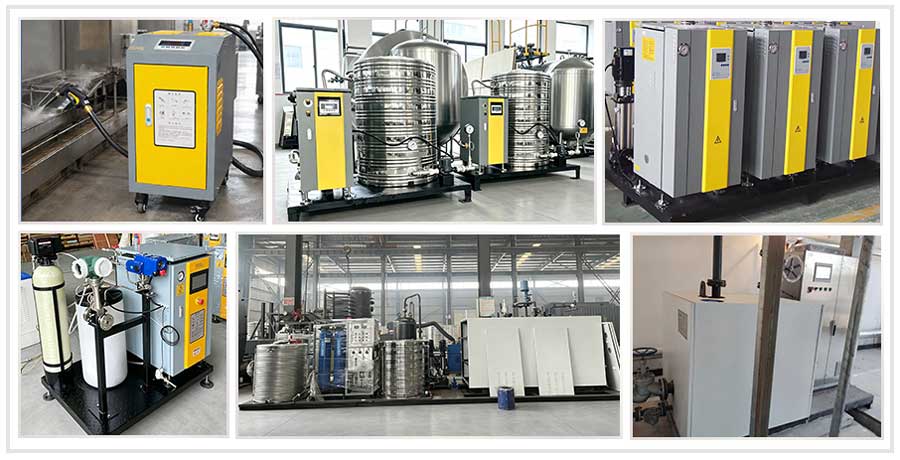

Hot Sell Portable Electric Boiler
Electric Steam Boiler, Electric Steam Generator, Electric Hot Water Boiler
6kw-3500kw 9kg-5000kg Electric Boiler, Customized in Portable or Skid Mounted or Mobile Containerised Type.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
2. Qualified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 132 countries all over the world, trustable quality & services for lifespan.
Oil Gas Boiler | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
---|---|---|---|---|---|---|---|---|---|
light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
WNS0.5 | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 32.5 | 35.7 | 3.5 |
WNS1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 64.5 | 70.1 | 5.5 |
WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 129.3 | 140.3 | 8 |
WNS3 | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 192.9 | 212.1 | 10.7 |
WNS4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 258.2 | 283.4 | 11.6 |
WNS6 | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | >98 | 60-75 | 388.6 | 424.2 | 17.5 |
WNS8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 60-75 | 514.6 | 566.3 | 22.5 |
WNS10 | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 60-75 | 641.7 | 707.8 | 26.8 |
WNS15 | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 60-75 | 960.1 | 1061.7 | 35.2 |
WNS20 | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | >98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
