Stainless Steel Diesel Gas Steam Boiler & Stainless Steel Electric Steam Generator & Vertical or Horizontal Boiler
- Our Products ：Diesel Boiler, Natural Gas Boiler, Electric Boiler, Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Heater Boiler
- Capacity is：10kg/hour-50000kg/hour
- Material：Stainless Steel Boiler Shell, Stainless Steel Tubes
- Manufacture Standard：GB, ISO, CE, ASME, DOSH, EAC

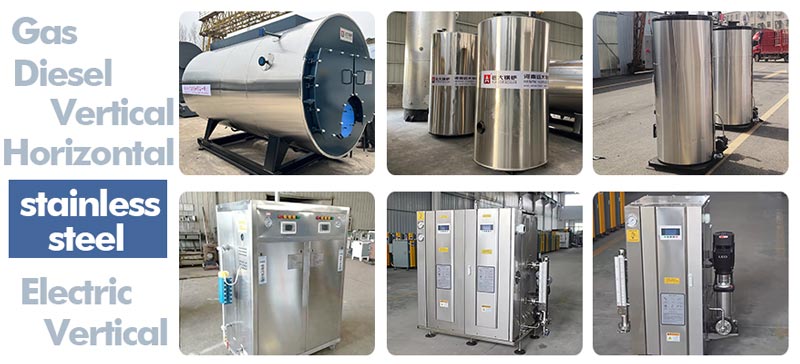

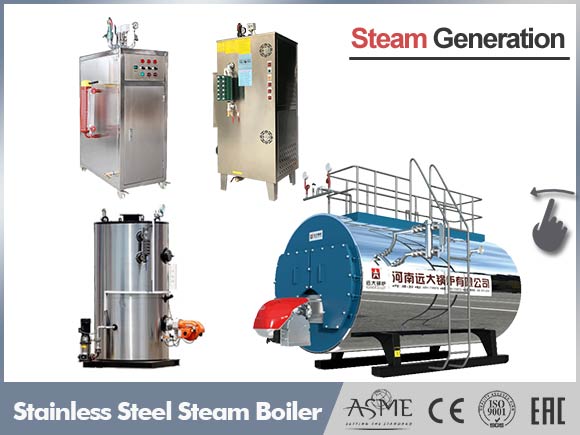

Stainless Steel Steam Boiler & Steam Generator
Yuanda Boiler Qualified With ISO CE ASME DOSH EAC, Global Sales Services.

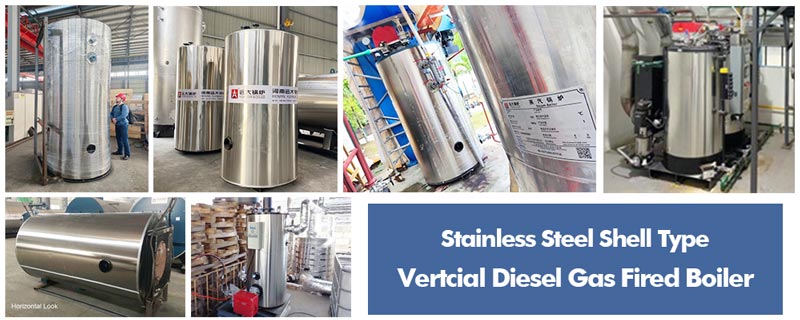

Hot Product Vertical Diesel Gas Boiler
Stainless Steel Vertical Diesel/Gas Boiler
Vertical steam generator boiler 100kg 200kg 300kg 500kg 600kg 1000kg 1500kg 2000kg Diesel/Natural Gas/Lpg Fired

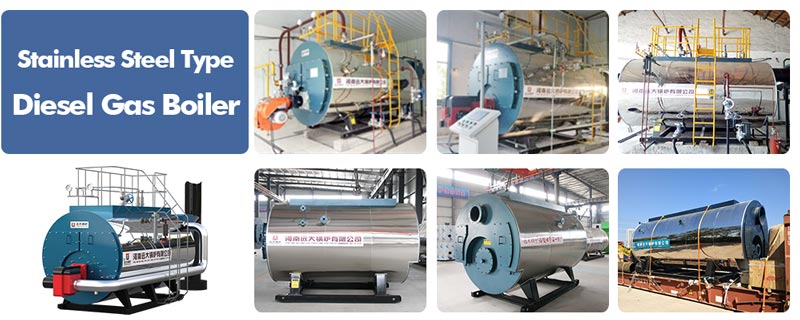

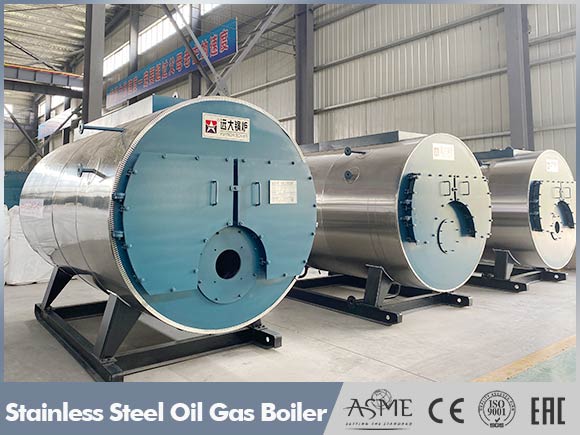

Hot Product Horizontal Oil Gas Boiler

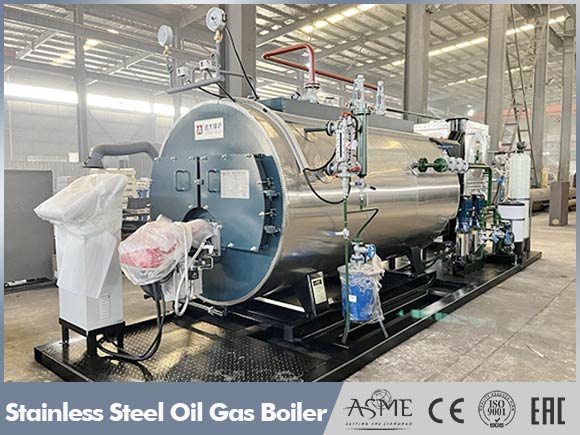

Stainless Steel Fire Tube Diesel/Gas Fired Boiler
WNS series horizontal diesel/oil/gas fired boiler, the boiler's external packaging is made of stainless steel, adopt three pass corrugated furnace boiler, wet back structure boiler. Higher thermal efficiency & lower consumption. Available to be Mobile Containerised or Skid-mounted.

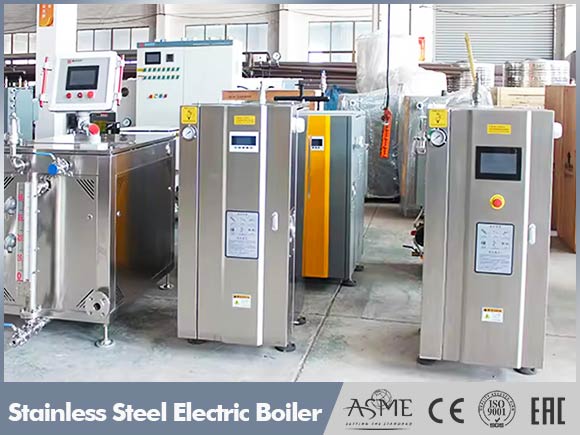

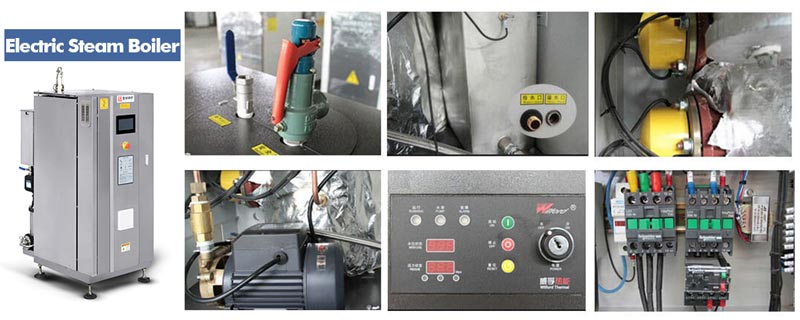

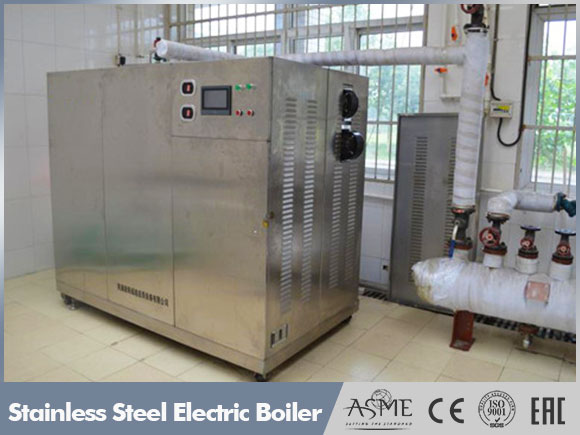

Hot Product Electric Steam Generator Boiler
Stainless Steel Electric Steam Generator Boiler 6kw-3500kw, 10kg-5000kg/hour
Vertical Electric Steam Geneator Boiler With stainless steel material packaing and stainless steel tubes heating, Small size steam generating machine, portable with wheels, easy to install & operate. Fast steam & Clean steam generating & low electricity cost.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. Qualified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 132 countries all over the world, trustable quality & services for lifespan.
| Gas Oil Fired Steam Boiler Technical Parameter | ||||||||
|---|---|---|---|---|---|---|---|---|
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
| light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
| WNS0.5 | 0.5 | 0.1mpa-3.8mpa | 100°C-450°C | 20°C/104°C | ＞98 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | ＞98 | 64.5 | 70.1 | 5.5 | |||
| WNS2 | 2 | ＞98 | 129.3 | 140.3 | 8 | |||
| WNS3 | 3 | ＞98 | 192.9 | 212.1 | 10.7 | |||
| WNS4 | 4 | ＞98 | 258.2 | 283.4 | 11.6 | |||
| WNS6 | 6 | ＞98 | 388.6 | 424.2 | 17.5 | |||
| WNS8 | 8 | ＞98 | 514.6 | 566.3 | 22.5 | |||
| WNS10 | 10 | ＞98 | 641.7 | 707.8 | 26.8 | |||
| WNS15 | 15 | ＞98 | 960.1 | 1061.7 | 35.2 | |||
| WNS20 | 20 | ＞98 | 1276.2 | 1415.8 | 45.5 | |||
| SZS10 | 10 | ＞98 | 618 | 660 | 36 | |||
| SZS15 | 15 | ＞98 | 927 | 987 | 45 | |||
| SZS20 | 20 | ＞98 | 1256 | 1316 | 52.6 | |||
| SZS25 | 25 | ＞98 | 1545 | 1660 | 55.3 | |||
| SZS30 | 30 | ＞98 | 1856 | 1981 | 63.7 | |||
| SZS40 | 40 | ＞98 | 2470 | 2630 | 77.4 | |||
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | ||||||||
