Dairy Plant Milk Pasturization Industrial Hot Water Boiler Steam Generator Boiler
- Our Products :Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Power:Electricity, Gas, Lpg, Diesel, Wood, Coal, Biomass
- Capacity:100kg-50000kg, 100kw-35000kw
- Structure:Fire-tube, Water-tube, Vertical, Horizontal
- Manufacture Standard:GB, ISO, CE, ASME, DOSH, EAC

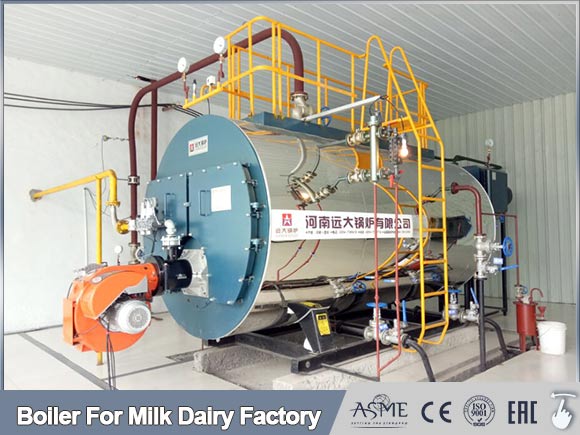

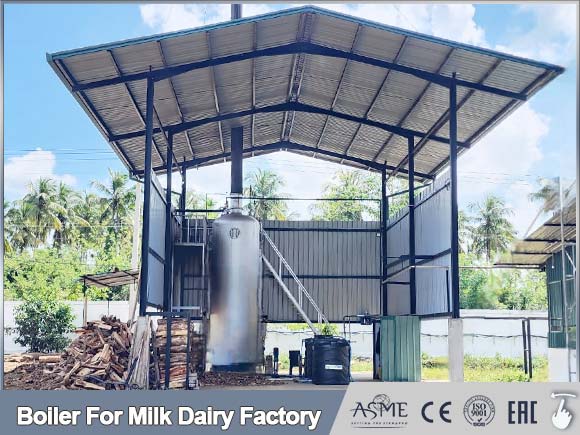

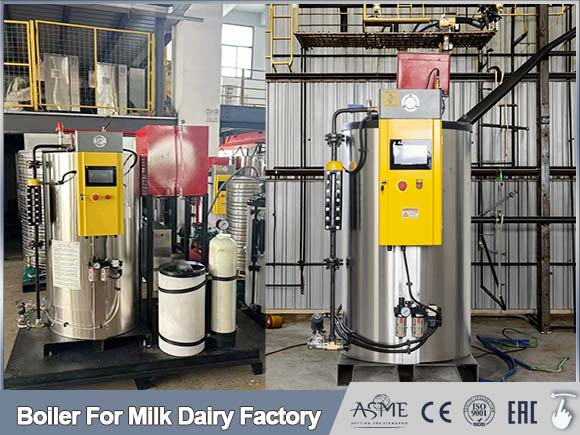

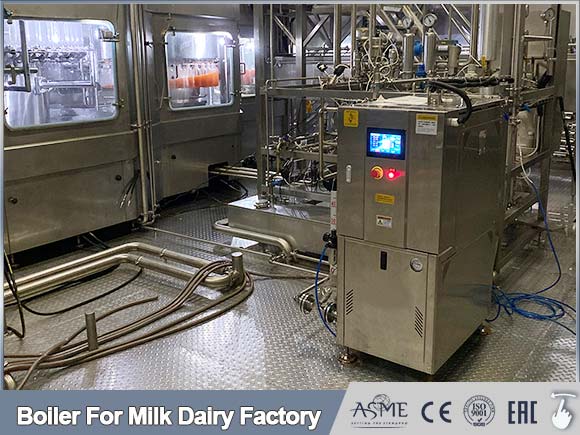

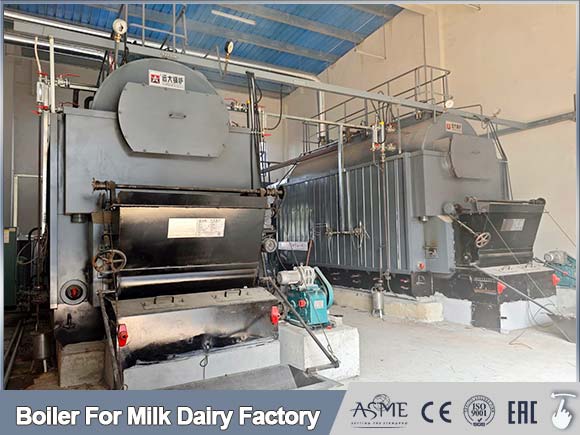

Dairy Industry-Steam Boiler-Hot Water Boiler
Yuanda Company Qualified With ISO CE ASME DOSH EAC
Catalogue Industrial Hot Water Steam Boiler
1. Steam Boiler & Steam Generator, mostly work for industries such foods, beverage, milk, feedmill, garments, textile, plywood, paper plant, chemical industry, laundry, rice mill, refinery oil plant, etc.
Steam Temperature in 100°C-450°C
fuel/power: Diesel, Lpg Gas Heavy-oil, Electricity, Coal, Wood Biomass Ricehusk Bagasse Sawdust Palm-fibre etc.
2. Industrial Water Heating Boiler, mostly work for industrial system, central heating system in buildings, heating water in factory productions, commercial application.
Heat Water Temperature in 40°C-115°C
||| Most Popular: Industrial Fuel Oil Diesel Lpg Gas Boiler |||
||| New Trend: Electrical Hot Water Steam Generator Boiler |||
||| Economic Small Wood Boiler Biomass Boiler Coal Boiler |||
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler

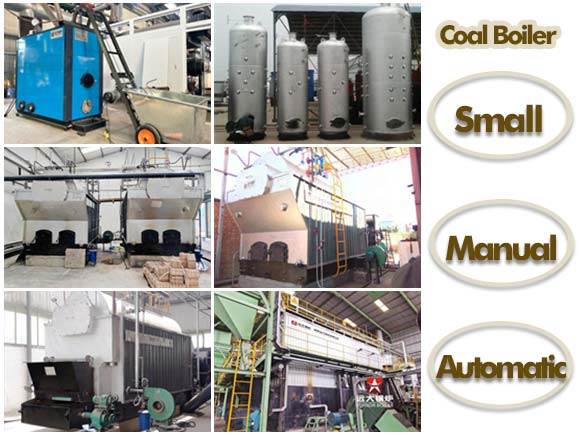

2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler

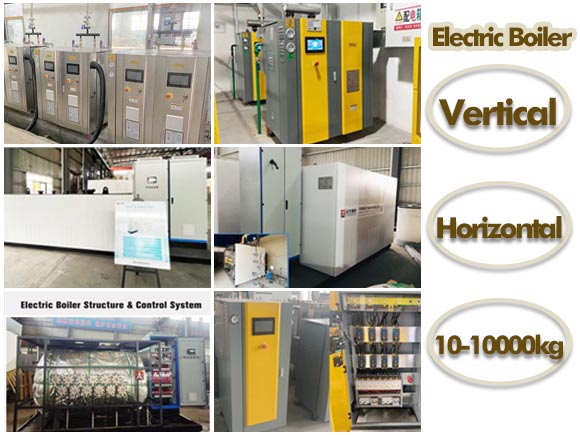

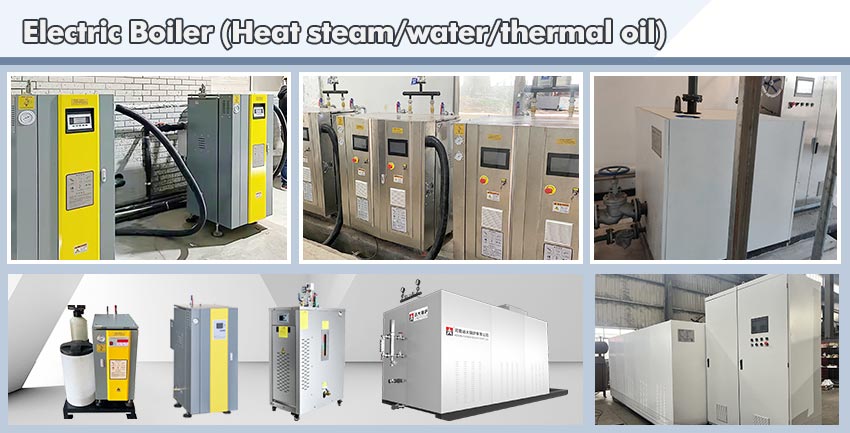

3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
2. Qualified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 132 countries all over the world, trustable quality & services for lifespan.
Lpg/Gas/Diesel Fired Steam Generator Boiler | |||||||||
---|---|---|---|---|---|---|---|---|---|
Model | LSS0.05-0.7-Y.Q | LSS0.1-0.7-Y.Q | LSS0.125-0.7-Y.Q | LSS0.2-0.7-Y.Q | LSS0.25-0.7-Y.Q | LSS0.3-0.7-Y.Q | LSS0.5-0.7-Y.Q | ||
Project | Unit | ||||||||
Rated evaporation | Kg/h | 50 | 100 | 125 | 200 | 250 | 300 | 500 | |
Rated working pressure | MPa | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | 0.7 | |
Staturated steam temperature | ℃ | 170 | 170 | 170 | 170 | 170 | 170 | 170 | |
Fuel consumption | Light diesel oil | kg/h | 3.5 | 6.8 | 8.5 | 14 | 16 | 20 | 33 |
Natural gas | Nm³/h | 3.5 | 7.3 | 9.2 | 14.5 | 19 | 22 | 36.5 | |
LPG | Nm³/h | 3.3 | 5.7 | 7.2 | 11.4 | 7.5 | 17.3 | 28.7 | |
City gas | Nm³/h | 8.5 | 18 | 22.5 | 34 | 43 | 52 | 88 | |
Water capacity | L | 29 | 49.3 | 49.3 | 49.5 | 49.5 | 49.5 | 49.6 | |
a Main steam valve diameter | DN | 15 | 25 | 25 | 32 | 32 | 32 | 50 | |
b Safety valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 40 | |
c Inlet diamater | DN | 15 | 15 | 15 | 15 | 15 | 15 | 15 | |
d Blowoff Valve diameter | DN | 20 | 20 | 20 | 25 | 25 | 25 | 25 | |
Chimney diameter | DN | 80 | 125 | 125 | 150 | 150 | 150 | 250 | |
Overall size | L | mm | 820 | 880 | 900 | 1400 | 1500 | 1500 | 1800 |
W | mm | 890 | 1100 | 1150 | 1000 | 1100 | 1200 | 1300 | |
H | mm | 1600 | 1800 | 1900 | 1000 | 2200 | 2200 | 2350 | |
Weight | kg | 180 | 220 | 240 | 850 | 1150 | 1200 | 1680 |
