Indonesia Boiler Supplier Yuanda Steam Boiler & Steam Generator & Thermal Oil Heater Boiler & Hot Water Boiler

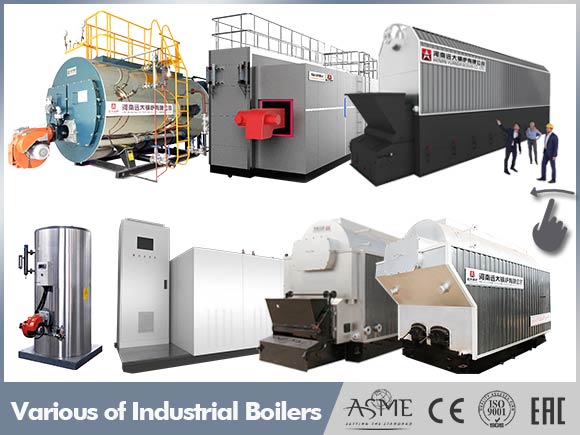

- Our Products :Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Fuel:gas, diesel, lpg; electric; coal, wood, biomass
- Capacity:0.1t/h-50t/h; 10hp-3000hp; 100kw-35000kw
- Structure:Fire Tube, Water Tube, Vertical, Horizontal
- Manufacture Standard :GB, ISO, CE, ASME, DOSH, EAC

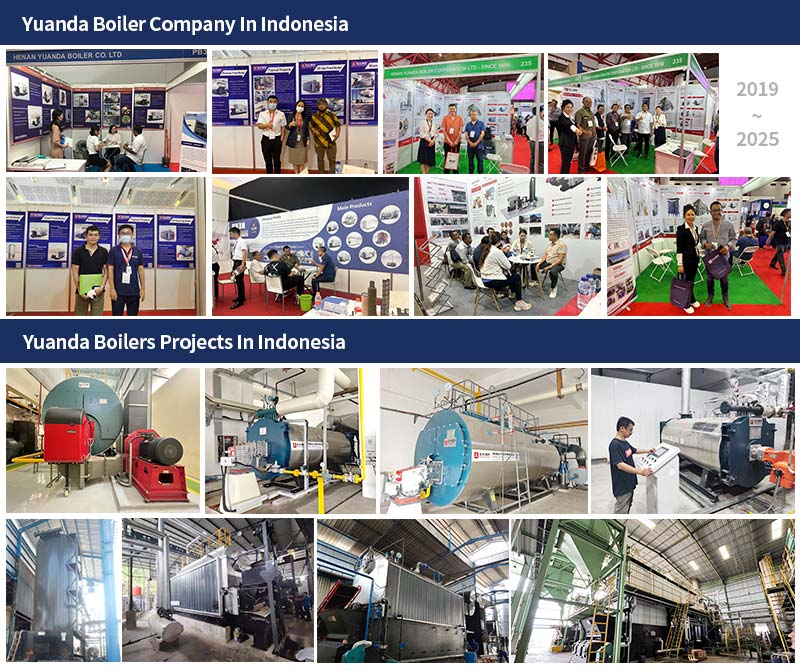

Yuanda Boiler Services In Indonesia
Indonesia is one of the main markets for Yuanda Boiler. There are project cases in many provinces in Indonesia, such as Java, Jakarta, East Java, West Java, Central Java, Sumatra, and Riau.
Yuanda Boiler Projects In Indoensia
Our boilers projects cover all kinds of industries in Indonesia, such Food & Beverage Factory, Palm Oil Mill, Paper Plant,Textile Factory, Plywood Veneer Factory, Asphalt Bitumen Plant, Package Factory, Feed Mill, etc.
Till now, we have sold more than 500 sets boiler to Indonesia. Noteworthy that we had sold 14 sets to PT Wings Group Companies, including 12sets 20ton coal steam boiler, and 4sets 20ton gas steam boiler. PT Wings is one of the greatest food & beverage manufactures in indonesia, we have been the trustable partner.
Note: After initial communication and confirmation of project status, we will offer the customers List of our cooperative companies in Indonesia.

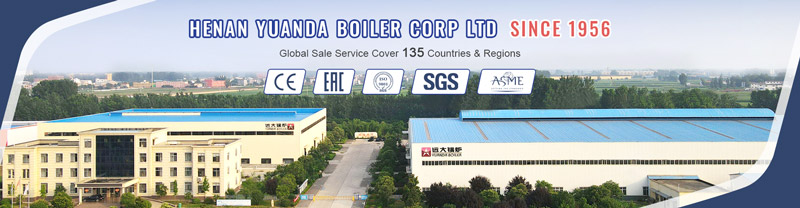

About us Yuanda Boiler
1. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
2. Qualified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 132 countries all over the world, trustable quality & services for lifespan.
What We Have Yuanda Boiler
1. Steam Boiler, Steam Generator, Superheated Steam Boiler, Saturated Steam Boiler, High Pressure/Low Pressure Steam Boiler.
2. Thermal Oil Heater, Thermic Fluid Heater, Gas Diesel Thermal Oil Heater, Coal Wood Biomass Thermal Oil Boiler, Electric Thermal Oil Heater, Horizontal Thermal Oil Boiler, Vertical Thermal Oil Boiler.
3. Gas Steam Boiler, Lpg Steam Boiler, Diesel Steam Boiler, Heavy Oil Steam Boiler, Dual Fuel Steam Boiler.
4. Biomass Boiler, Coal Boiler, Briquette/Pellets Boiler, Wood Boiler, Riceuhusk Boiler, Plam Kenel Shells Boiler, Empty Fruit Bunch Fired Boiler, Bagasse Boiler, Coconut Shells Boiler, Peanuts Shells Boiler, etc.
5. Mostly, Yuanda Boiler Work For Factory Product Processing & Electricity Generation System.
Inquiry Email Address: shirley@yuanda-boiler.com
Solution A Gas-fired Diesel-fired Oil-fired boiler
Choose Small Vertical gas/lpg/diesel fired boiler, Vertical Steam Generator Boiler, Vertical Hot Water Boiler.

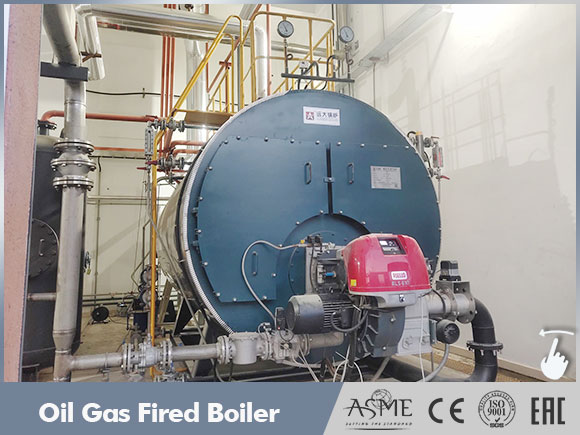

Choose Horizontal WNS series fire tube hot-water steam boiler, horizontal three pass corrugated furnace boiler, wet back structure boiler, higher thermal efficiency & lower consumption. Fuel options: Gas Lpg Biogas Dual-fuel Diesel Heavy-oil Exhaust-gas. Available to be Mobile Containerised or Skid-mounted.
Choose SZS series water tube boiler, Large furnace water membrane wall sturcture boiler, adopts double drums "D-type" vertical arrangement. 10ton-50ton, 7mw-35mw.
Solution B Electrical Boiler, Steam Generator
Industrial Electric Boilers, use electricity as an energy source and converts it to heat energy, generating hot steam/water/oil.

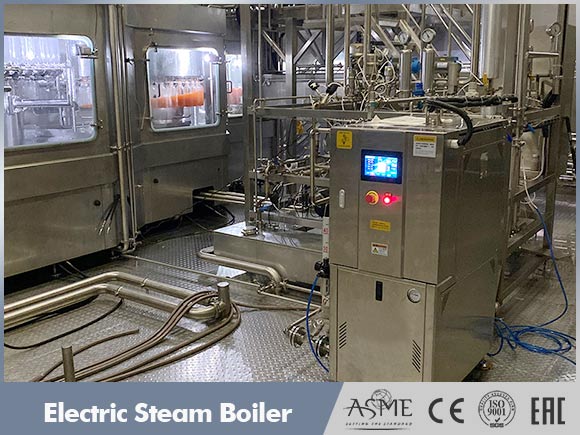

Choose Electric Steam Generator 9kw-700kw 13kg-1000kg. Small Size Vertical steam generating machine, portable with wheels, easy to install & operate. Fast steam & Clean steam generating & low electricity cost.
Choose Horizontal electric heated boiler 0.3ton-10ton 250kw-7000kw. Fully automatic integrated stainless steel tube heating boiler, no pollution no noise, convenient installation, small occupation, high thermal efficiency.
Solution C Biomass Wood Boiler
There are Manual-feeding & Automatic-feeding type boiler. Small Boiler & Large Boiler.
Choose Small Wood Biomass Pellets Boiler. Vertical Biomass Boiler. 100kg-2000kg, 48kw-1400kw.
Choose Horizontal wood biomass boiler 1ton-50ton. Chain Grate Boiler & Reciprocating Grate Boiler & Travelling Grate Boiler & Fixed Grate Boiler. Choose the best suitable boiler according to your requirements.

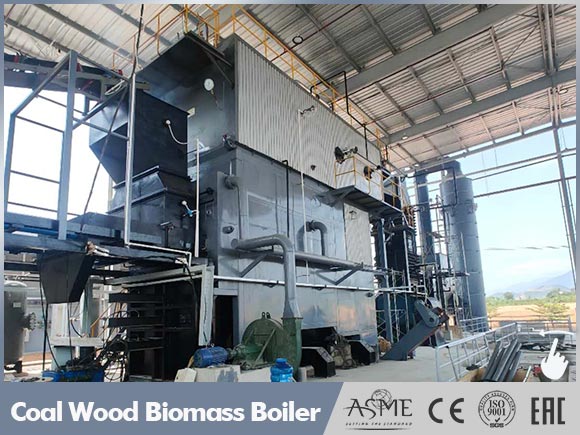

Choose SZL water tube biomass boiler, double-drums show "D" or "A" arrangement. High thermal efficiency that other model. Thermal capacity in 4ton-50ton, 2.8mw-35mw.
Solutuion D Coal (charcoal briquette) boiler
Choose Vertical automatic coal burning boiler, steam generation boiler & heating boiler.

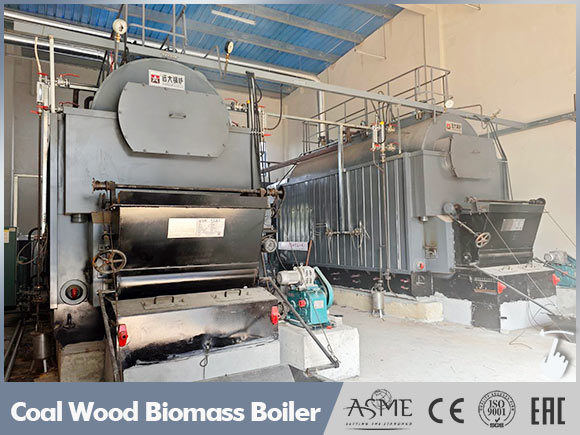

Choose Chain Grate Boiler DZL SZL series Automatic coal burning boiler, water-tube & fire-tube structure, wing shape flue, higher efficiency that traditional type.
Choose Manual feeding coal boiler, use travelling grate stoker. It has advantages of long life span 20Years, It can burn Coal Charcoal Biomass-wood-waste.
Gas Oil Fired Steam Boiler Technical Parameter | ||||||||
---|---|---|---|---|---|---|---|---|
Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Fuel comsumption | max transportation weigh(t) | |
light diesel oil(kg/h) | natural gas(Nm³/h) | |||||||
WNS0.5 | 0.5 | 0.1mpa-3.8mpa | 100°C-450°C | 20°C/104°C | >98 | 32.5 | 35.7 | 3.5 |
WNS1 | 1 | >98 | 64.5 | 70.1 | 5.5 | |||
WNS2 | 2 | >98 | 129.3 | 140.3 | 8 | |||
WNS3 | 3 | >98 | 192.9 | 212.1 | 10.7 | |||
WNS4 | 4 | >98 | 258.2 | 283.4 | 11.6 | |||
WNS6 | 6 | >98 | 388.6 | 424.2 | 17.5 | |||
WNS8 | 8 | >98 | 514.6 | 566.3 | 22.5 | |||
WNS10 | 10 | >98 | 641.7 | 707.8 | 26.8 | |||
WNS15 | 15 | >98 | 960.1 | 1061.7 | 35.2 | |||
WNS20 | 20 | >98 | 1276.2 | 1415.8 | 45.5 | |||
SZS10 | 10 | >98 | 618 | 660 | 36 | |||
SZS15 | 15 | >98 | 927 | 987 | 45 | |||
SZS20 | 20 | >98 | 1256 | 1316 | 52.6 | |||
SZS25 | 25 | >98 | 1545 | 1660 | 55.3 | |||
SZS30 | 30 | >98 | 1856 | 1981 | 63.7 | |||
SZS40 | 40 | >98 | 2470 | 2630 | 77.4 | |||
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
