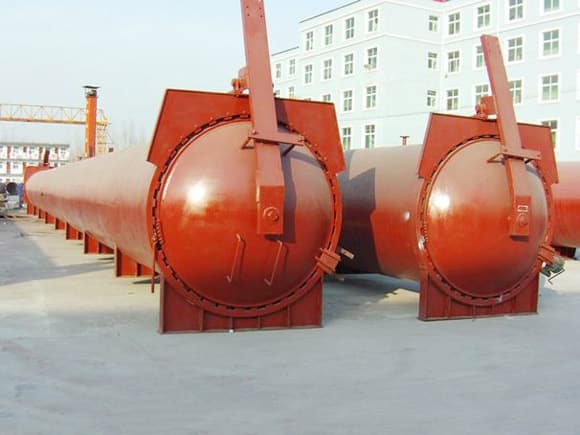

AAC Autoclave
- Internal Diameter:≥1.65m
- Operating Temperature:184-201℃
- Working Pressure:1.0-1.6MPa
- Working Medium:Saturation Steam
- Application:Building Material, AAC Plant, Flyash Block Plant
AAC autoclave produced by Yuanda Boiler fully absorbs the advantages of foreign similar products. The company has the most advanced production line of autoclave, adopts fully automated welding and advanced flaw detection instruments, to ensure the safety and reliable operation of autoclave.
Application:
Widely used in aerated concrete block, concrete pipe pile, high curing gypsum and other building materials, as well as rubber products, wood drying, preservative treatment and other production projects that. require pressure steam curing.
Boiler Characteristics:
1. Autoclave door with quick open structure and safety interlock.
2. Protection device for preventing operation problems.
3. Simple installation, good sealing and long service life and so on.
4. Flexible seat design, adjust to the thermal expansion and cold contraction of kettle body.
5. Good compatibility with the auxiliary equipment, short installation period, low investment cost.
The concrete is a pressure vessel used to sterilize equipment and supplies by subjecting them to high pressure saturated steam at 121 °C (249°F) for around 15–20 minutes depending on the size of the load and the contents. The hydrothermal reactions CaO—SiO2—H2O is completed in the autoclave, to make the steamed products strength and good performance. The autoclave ususlly work with steam boiler, boiler output high temperature steam into the autoclave for use.
Get Quick Quote & Professional Proposal For Your Project, Contact us Now !
Tailor-made machine service, Email us at any time:shirley@yuanda-boiler.com
Model | Axe body size | Thickness mm |
Effective length L1 |
Highest working pressure (Mpa) |
Highest working temperature (°C) | Design pressure (Mpa) | Design temperature (°C) | Working medium | Total length mm | width (mm) | Height (mm) |
---|---|---|---|---|---|---|---|---|---|---|---|
FGZCS1.3-1.65x21x14 | Φ1.65 | 14 | 21 | 1 | 187 | 1.1 | 187 | Saturated steam | 22650 | 2619 | 2695 |
FGZCS1.3-2x21x14 | Φ2.0 | 14 | 21 | 1.3 | 198 | 1.4 | 198 | 23300 | 2980 | 3340 | |
FGZCS1.3-2x21x16 | Φ2.0 | 16 | 21 | 1.3 | 198 | 1.4 | 198 | 23300 | 2980 | 3340 | |
FGZCS1.3-2x26x14 | Φ2.0 | 14 | 26 | 1.3 | 198 | 1.4 | 198 | 29300 | 2980 | 3340 | |
FGZCS1.3-2x26x16 | Φ2.0 | 16 | 26 | 1.3 | 198 | 1.4 | 198 | 29300 | 2980 | 3340 | |
FGZCS1.3-2x31x14/16 | Φ2.0 | 14 or 16 | 31 | 1.3 | 198 | 1.4 | 198 | 33300 | 2980 | 3340 | |
FGZCS1.3-2.2x21x16 | Φ2.2 | 16 | 21 | 1.3 | 198 | 1.4 | 198 | 29560 | 3254 | 4117 | |
FGZCS1.3-2.2x26x16 | Φ2.2 | 16 | 26 | 1.3 | 198 | 1.4 | 198 | 29560 | 3254 | 4117 | |
FGZCS1.3-2.2x31x16 | Φ2.2 | 16 | 31 | 1.3 | 198 | 1.4 | 198 | 33560 | 3254 | 4117 | |
FGZCS1.3-2.5x26x18 | Φ2.5 | 18 | 26 | 1.3 | 198 | 1.4 | 198 | 29560 | 3254 | 4117 | |
FGZCS1.3-2.5x26x20 | Φ2.5 | 20 | 26 | 1.3 | 198 | 1.4 | 198 | 29560 | 3254 | 4117 | |
FGZCS1.3-2.5x31x18 | Φ2.5 | 18 | 31 | 1.3 | 198 | 1.4 | 198 | 33560 | 3254 | 4117 | |
FGZCS1.3-2.5x31x20 | Φ2.5 | 20 | 31 | 1.3 | 198 | 1.4 | 198 | 33560 | 3254 | 4117 |
