Electrically heated generator boiler
- Capacity:50kg-10,000kg 50kw-7000kw
- Pressure:0.1-1.6Mpa
- Steam temperature:0-226℃
- Heating:By electricity
- Application:Food Industry, Brewery, Dairy Products, Laundry, etc
Electric boilers, also said electric heating boiler, that uses electricity as an energy source and converts it to heat energy, output high temperature steam/water/oil.
If you have request, contact us shirley@yuanda-boiler.com whatsapp +8618236986701

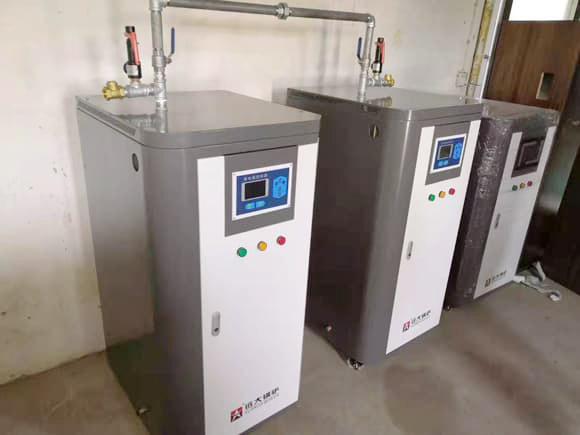

Small Electric Steam Generator 50kg-500kg/50kw-350kw
1. Electric steam generator is small capacity steam output electric power steam generator, design natural circulation model, there are water tubes inside, has high efficiency reach to 98%.
Small size, light weight, complete machine, easy to install
Dual safety guarantee, Electric heating, safety ensure

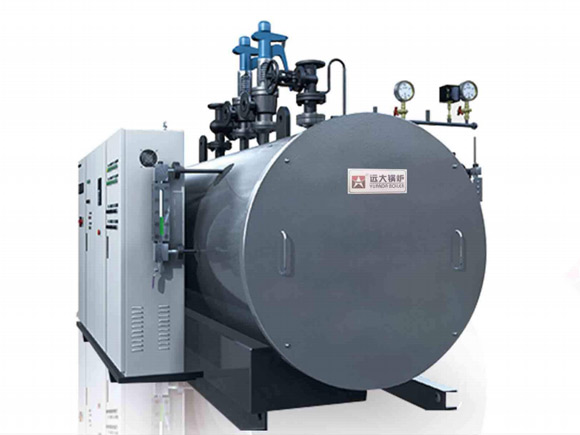

Electric Steam Boiler 500Kg-5000Kg/350kw-3500kw
WDR series full automatic electric heating boiler is a kind of new high technology product which takes electricity as energy. It has the advantages of environmental protection, no pollution, no noise, convenient installation,small occupation, full automatic control and high thermal efficiency.
Automatic control system, stainless steel plate packing
Stainless steel tube type nichrome electric heating tube
Electric Boiler usage
1. Ironing washing industry---Dry cleaning machine, dryer, washing machine, dehydrator, ironing machine, iron, etc.
2. Electroplating cleaning industry---Bath of plating bath, acid bath, cleaning pool heating constant temperature;
3. Food processing industry---Tofu machine, rice noodle machine, steam box, sterilization tank, chartered plane;
4. Hotels, enterprises and institutions canteen and various service stations disinfection, steamed rice and water supply;
5. Biological chemical---Fermentation tank, reaction kettle, interlayer pot, mixer, emulsifying machine, etc;
6. Packaging machinery---The label machine set standard machine supporting use;
7. Other industries---steam cleaning industry, steam heating or hot water supply, etc.
Why Choose Us ?
1. We offer all kinds of boiler machine, customized service for customers' demand, send your specific details to us.
2. 60+Years' experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, Yuanda boilers have been exported to 88 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide.
1. Choose boiler: There are more various boiler model for choose, inquire one you prefer.
2. Technical discussion: Offer professional boiler system solution for your company use.
3. Factory visit: Warmly welcome all customers come to visit the production base
4. Global service: After sale service, arrange engineer for boiler installation, training operators.
5. Whole life service for boiler consult, contact us whenever.
Inquire now: Known about our boiler, Email us at any time: shirley@yuanda-boiler.com
Electric Steam Generator Technical Parameter Table | |||||||
---|---|---|---|---|---|---|---|
Model | Rated evaporation(KG/H) | Rated pressure (Mpa) | Saturation temperature(℃) | Power(KW) | Thermal efficiency(%) | Water capacity(L) | power supply(V) |
LDR0.034-0.4 | 34 | 0.4 | 150 | 24 | 99.9 | 18 | 380 |
LDR0.05-0.4 | 50 | 0.4 | 150 | 36 | 99.9 | 21 | 380 |
LDR0.065-0.4 | 65 | 0.4 | 150 | 48 | 99.9 | 21 | 380 |
LDR0.1-0.4 | 100 | 0.4 | 150 | 72 | 99.9 | 23 | 380 |
LDR0.15-0.4 | 150 | 0.4 | 150 | 108 | 99.9 | 29 | 380 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
WDR Series Steam Boiler Technical Parameter Table | ||||||||
---|---|---|---|---|---|---|---|---|
Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated steam temperature(℃) | Feed-water temperature(℃) | Thermal efficiency(%) | Electric power(KW) | Applicable power supply(V/HZ) | Boiler weigh(t) |
WDR0.2 | 0.2 | 0.7 | 170.4 | 20 | >98 | 150 | 380/50 | 0.86 |
WDR0.5 | 0.5 | 0.7 | 170.4 | 20 | >98 | 390 | 380/50 | 0.95 |
WDR1 | 1 | 1.0 | 184 | 20 | >98 | 760 | 380/50 | 1.73 |
WDR2 | 2 | 1.25 | 195 | 20 | >98 | 1520 | 380/50 | 2.73 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
