Liquid Fuel Oil Bunker Burner Boiler
- Our Products：Steam Boiler, Steam Generator, Hot Water Boiler, Thermal Oil Boiler, Thermic Fluid Heater, Hot Air Furnace
- Capacity：1ton-20ton, 60hp-1200hp
- Pressure：1bar-38bar 0.1mpa-3.8mpa
- Model：Fire Tube Boiler, Water Tube Boiler
- Manufacture Standard：GB, ISO, CE, ASME, DOSH, EAC

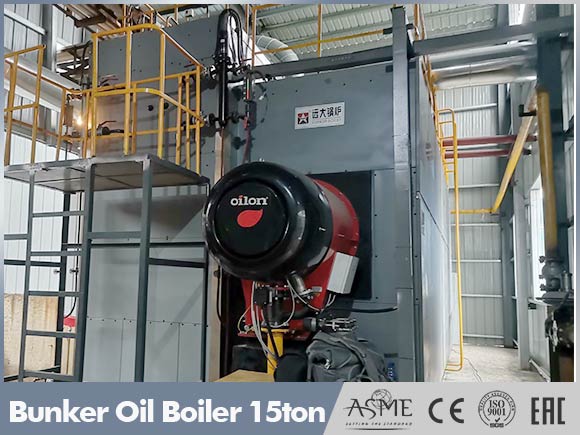

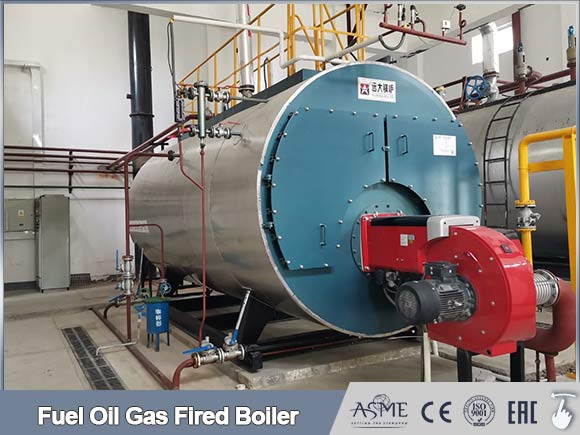

Fuel Oil Bunker Boiler
With advantages of "Automatic" "Environmental" "Easy Install" "Easy Operate" "Clean-energy Boiler". Our products are certified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, ensuring high quality and compliance with international standards.

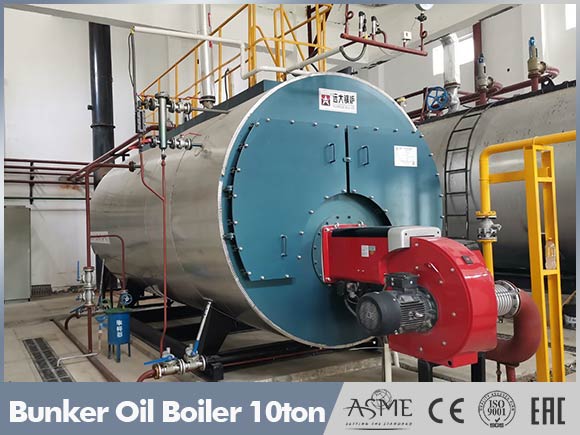

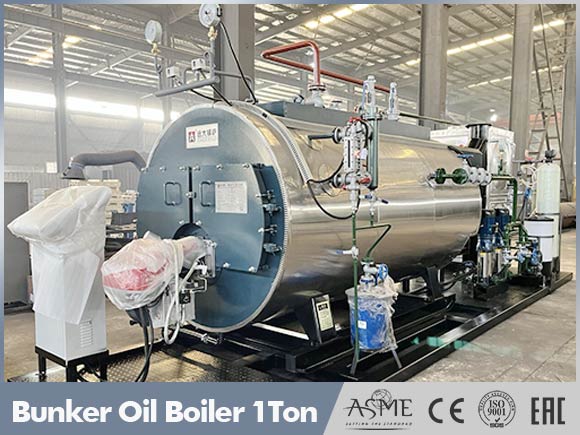

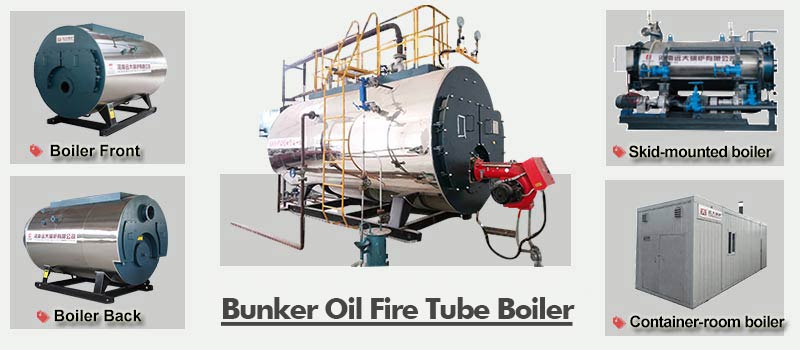

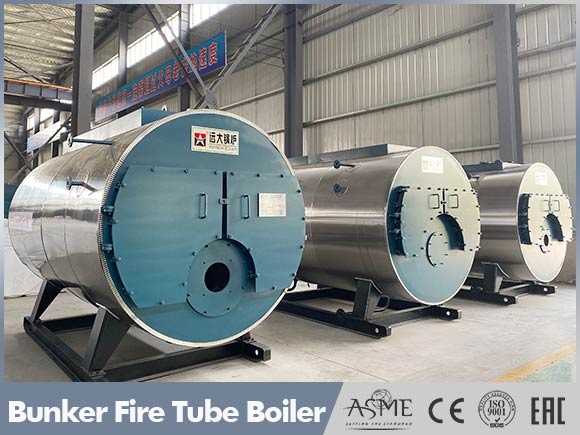

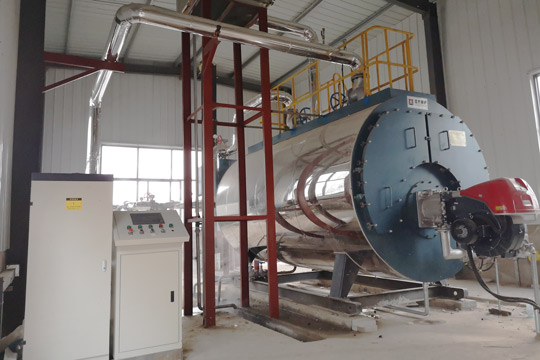

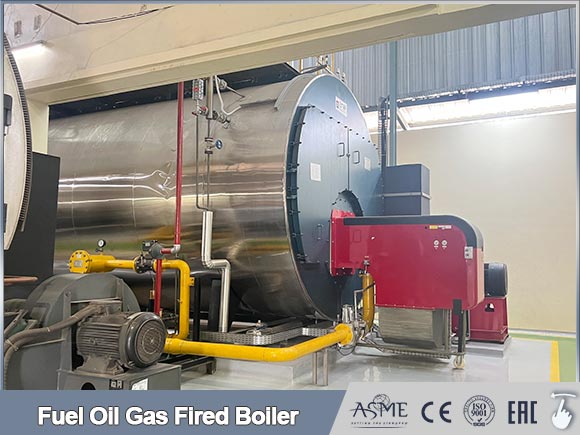

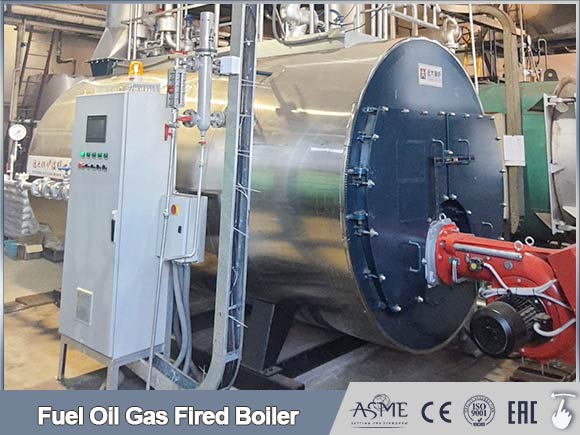

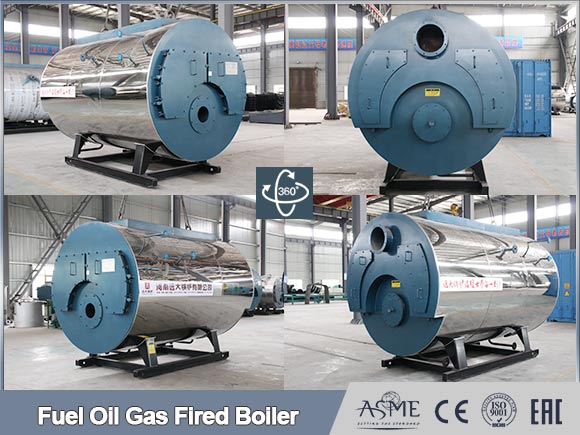

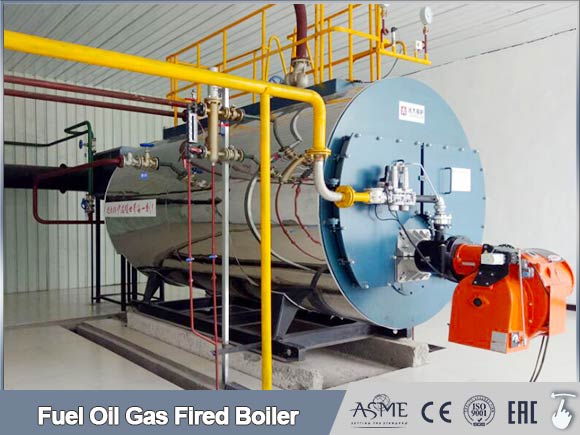

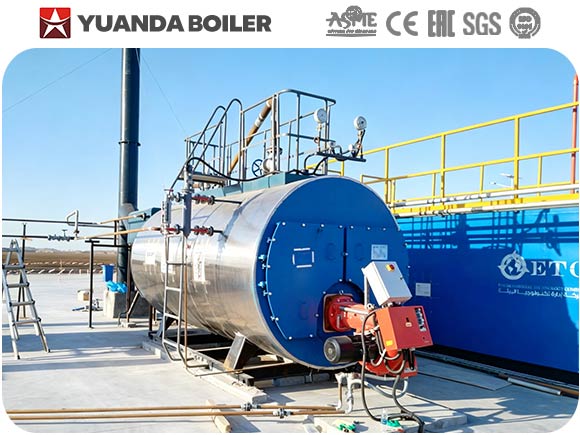

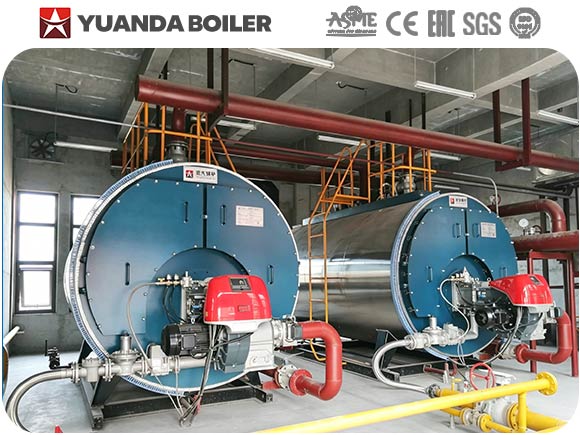

Hot Sell WNS Fire Tube Bunker Oil Boiler
WNS series horizontal three pass fire tube oil gas boiler, packaged boiler, wet back structure, spirally tubes & corrugated furnace. With advantages of Fully automatic control system, High thermal efficiency 99% energy saving, Low emission control (meet internatonal standard).
Advantages WNS boiler features
1. 100% Safety Control Boiler & Strict Boiler Quality Control
1)All welding strictly meet the requirements of China NB/T 47014(JB/T 4708)
2)Anti Dry Heating Control System with double safety valves, double water level gauges, double secure of safe operation
3)With explosion-proof door with fire viewer, If burner failure ignition, this door can release the pressure out, protect the damage to welding parts
2. Energy Saving & High Efficiency
1)Spiral fire tube, the advanced technology, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing
2)Spirally corrugated furnace & Wet back structure, increased 10% heating area, avoid damaged by heat expansion, reduce the back tube sheet temperature and protect it from cracking
3. High Quality Steam-Wetness Below 1%
1) We equip a steam separation under the steam output port.
2)With continuous water feed function,Make the water level is stable instead of big differences
3)Bigger water tank design, boiler with bigger water volume and bigger steam space
Boiler & Accessories
Boiler, Burner, Control Cabinet, Water Softener Device, Water Pumps, Economizer, Steam Header, Chimnery, Valves & Gauges Instruments...

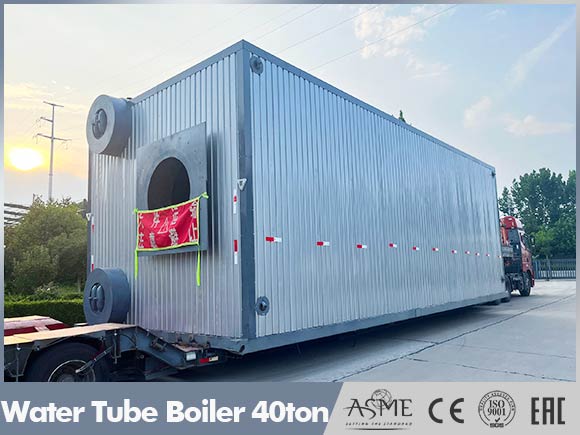

Hot Sell Water Tube Oil Boiler
Thermal Capacity in 8Ton-80Ton 7mw-35mw

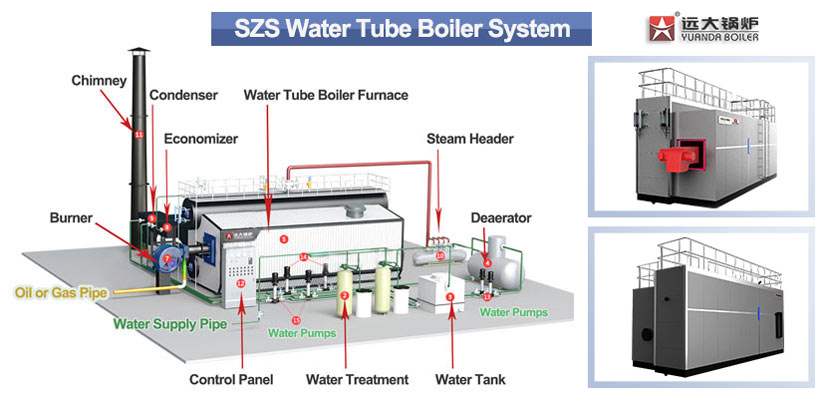

SZS series water tube oil gas boiler, has double drums "D-type" vertical arrangement, full-membrane type wall structure, reasonable and compact layout, realize large-capacity boiler overall quick installation, less investment in boiler house infrasturcture and short installation period.

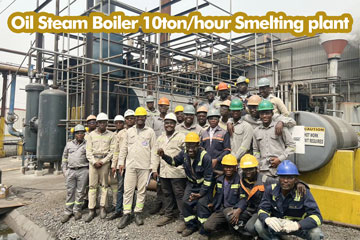

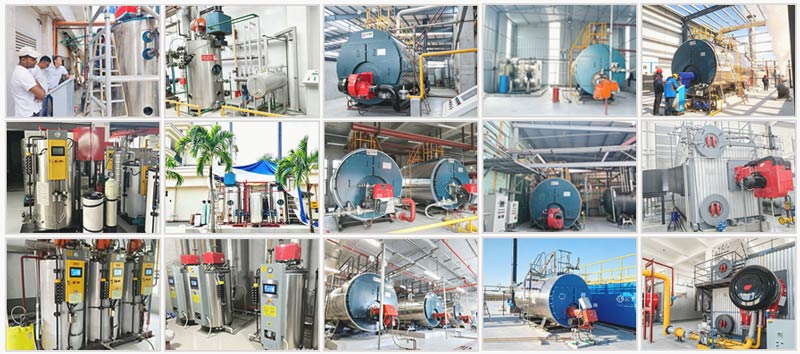

Yuanda Projects

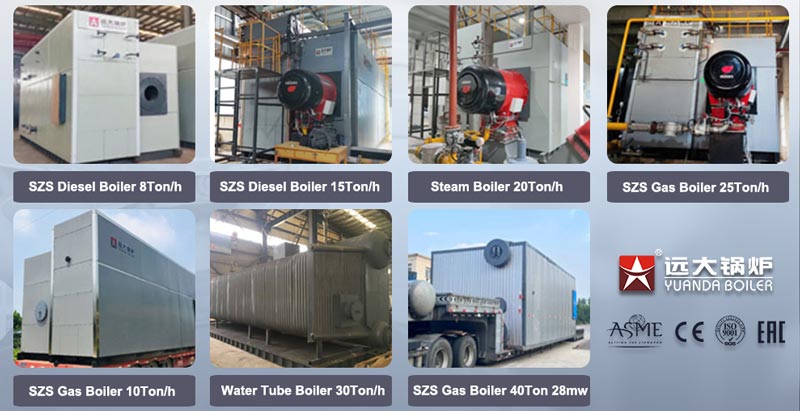

Hot Selling SZS Series Water Tube Steam Generator Boiler & Hot Water Boiler.

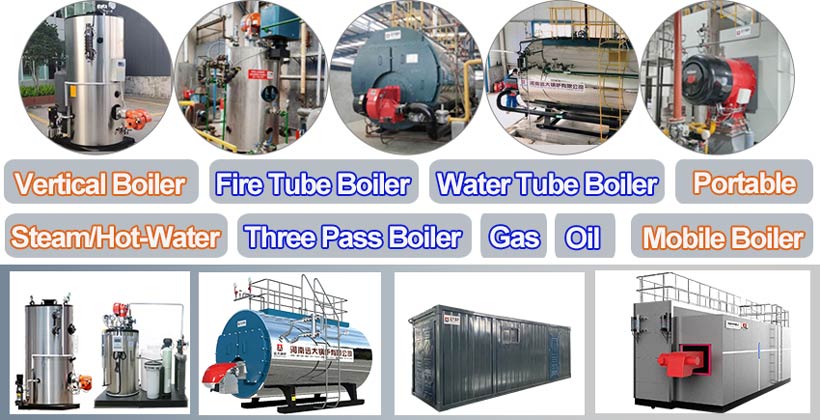

Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
2. Qualified by ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 132 countries all over the world, trustable quality & services for lifespan.
| Model | Rated capacity(t/h) | Rated pressure (Mpa) | Rated temperature(℃) | feed temperature(℃) | Thermal efficiency(%) | Exhaust temperation(℃) | Fuel comsumption | max transportation weigh(t) | |
|---|---|---|---|---|---|---|---|---|---|
| light diesel oil(kg/h) | natural gas(Nm³/h) | ||||||||
| WNS0.5 | 0.5 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 32.5 | 35.7 | 3.5 |
| WNS1 | 1 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 64.5 | 70.1 | 5.5 |
| WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 129.3 | 140.3 | 8 |
| WNS3 | 3 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 192.9 | 212.1 | 10.7 |

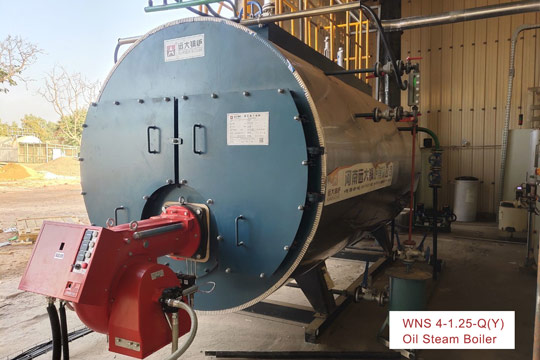

| WNS4 | 4 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 258.2 | 283.4 | 11.6 |
| WNS6 | 6 | 1.0/1.25/1.6 | 184/194/204 | 20/104 | ＞98 | 60-75 | 388.6 | 424.2 | 17.5 |
| WNS8 | 8 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 514.6 | 566.3 | 22.5 |
| WNS10 | 10 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 641.7 | 707.8 | 26.8 |
| WNS15 | 15 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 960.1 | 1061.7 | 35.2 |
| WNS20 | 20 | 1.0/1.25/1.6/2.5 | 184/194/204/226 | 20/104 | ＞98 | 60-75 | 1276.2 | 1415.8 | 45.5 |
| Note: Parameter is for reference only, if any changes should follow the factory technical data. | |||||||||
