Thermal Oil Heater Boiler

  • Capacity:200kw-14000kw; 100000kcal-12000000kcal
  • Heating Temperature:0-360°C
  • Fuel:Gas, diesel, coal, biomass, wood, husk, sawdust, palm shells...
  • Application:Textile, plywood, rubber, bitumen, asphalt, buildings material...
  • Features:horizontal thermal oil boiler / vertical thermal oil boiler / gas diesel fired oil heater / coal wood biomass fired thermal oil boiler
Get price Send Message
Introduction

 ① Gas/Diesel  Thermal Oil Boiler

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

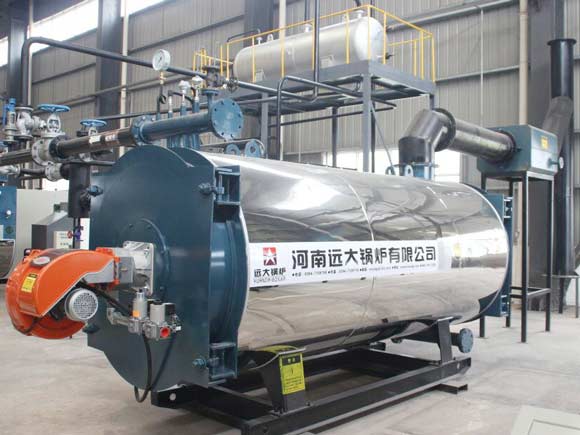

yyqw gas diesel fired thermal oil boiler

Question: How boiler heating oil circulately ?

1. Feeding tansfer oil into boiler through oil-gas seperator powered by oil-pump.

2. Full-oil boiler, cold oil will stay forced circulating for 6-8Hours, sametime exhaust the gas in oil.

3. Then running thermal oil boiler, deliver the heat between heating equipment and boiler. It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

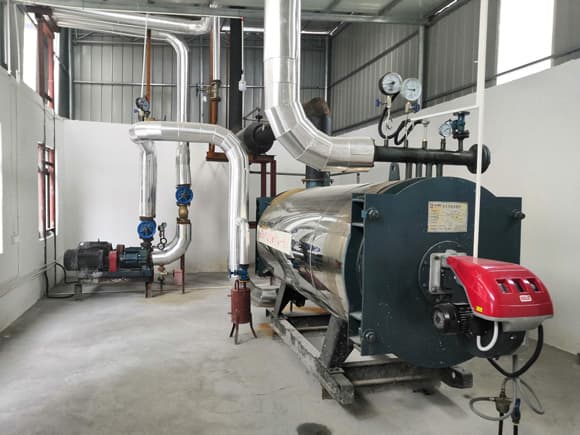

 YYQW hot oil heater boiler

Features of YYQW thermal oil boiler

1. It is easy and convenient to install the boiler, only setting the boiler on the foundation.

2. Heating surface formed by round coils, reducing thermal load of tubes surface, ensure safety.

3. Furnace dimensions matching with combustion flame, positive pressure combustion,high radiation heat efficiency.

4. Coil pipe, thermal oil boiler structure is compact, saving the floor area of boiler room.

5. An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

 ② Wood/Coal/Biomass  Thermal Oil Boiler

Wood/biomass/coal fired thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

coal wood biomass fired thermal oil boiler

Question: How boiler heating oil circulately ?

1. Feeding tansfer oil into boiler through oil-gas seperator powered by oil-pump.

2. Full-oil boiler, cold oil will stay forced circulating for 6-8Hours, sametime exhaust the gas in oil.

3. Then running thermal oil boiler, deliver the heat between heating equipment and boiler. It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.

 YLW thermal oil heater boiler

Features of YLW thermal oil boiler

1. Efficient heating, multi-loop coil design for thermal oil boiler inner structure

2. Energy saving, set up air preheater, waste heat boiler, higher thermal efficiency

3. Superior design, new furnace arch with upside down "α" flue gas flow

4. 100% safety, alarm for over oil temp, over smoke temp, low flow of oil.

5. An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

About us

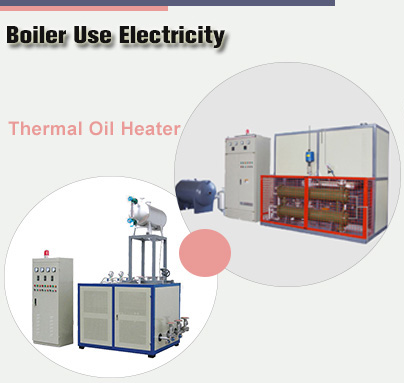

 Related   Electric Thermal Oil Heater

Model: Vertical type, horizontal type, portable type, skid type, containeried type

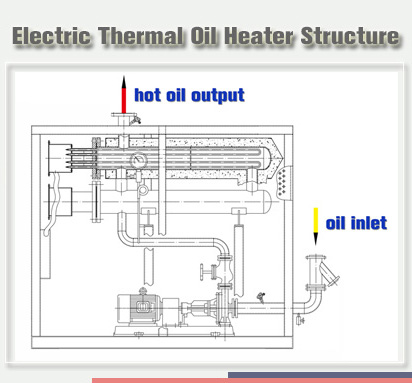

electric thermal oil boiler,electric hot oil heater,electric thermal oil heaterelectric oil heater structure,electric thermal oil boiler diagram,electric thermic fluid heater

Why Choose Us ?

Yuanda Boiler Boilers Sale Service Already Cover 102 countries !

 Henan yuanda boiler company,yuanda boiler service,china yuanda boiler

 About us  Yuanda Boiler

1. Products Certificates Qualifications

Yuanda products comply with international boiler manufacturing inspection standards such as ISO ASME CE SGS DOSH EAC.

2. Professional & Trustable

Yuanda Boiler, has professional technical research and development team, mature production technician team, high-quality raw material suppliers, experienced installation engineer team (have been to more than 50 countries to be responsible for after-sales installation and commissioning services)

3. Yuanda Boiler Since 1956

Till now, Yuanda Boiler has a 66-year history of development, continuous innovation, continuous progress, and never stops. With a large number of loyal boiler users, the good reputation has also driven the promotion of the Yuanda brand, and the market share has been increasing.

4. Reliable Service For Life-time

Before-sale services | on-sale services | after-sale services. We always adhere to the principle of customer-oriented and customer service. Yuanda will provide life service for products forever, keep moving.

Our Boiler Strict Quality Control

1. All materials should be inspected before prodcution and each steel have its ID code which can trace its quality test.

2. 100% Non-Destructive Inspection report of steel plate tube & welding rod.

3. Hydraulic test: make sure strength and tightness of pressure parts.

4. Third part inspection report: By China Henan Boiler Inspection Institute.

Parameter
Gas/Diesel Fired Oil Heater Rated power(KW) Rated pressure (Mpa) Thermal oil temperature(℃) Thermal efficiency(%) Fuel comsumption max transportation weigh(t)
light diesel oil(kg/h) natural gas(Nm³/h)
YY(Q)W-700Y(Q) 700 0.8/1.0 250-320 >96 61.3 73.6 3
YY(Q)W-1400Y(Q) 1400 0.8/1.0 250-320 >96 122.6 147.1 4
YY(Q)W-3000Y(Q) 3000 0.8/1.0 250-320 >96 249.2 296.4 10
YY(Q)W-3500Y(Q) 3500 0.8/1.0 250-320 >96 305.6 366.8 10.2
YY(Q)W-4200Y(Q) 4200 0.8/1.0 250-320 >96 367.5 436.6 16.5
YY(Q)W-5600Y(Q) 5600 0.8/1.0 250-320 >96 489.6 586.8 23.6
YY(Q)W-7000Y(Q) 7000 0.8/1.0 250-320 >96 612.3 726.9 28
Note: Parameter is for reference only, if any changes should follow the factory technical data.

Coal/Wood/Biomass Oil Heater Rated power(KW) Rated pressure (Mpa) Thermal oil temperature(℃) Thermal efficiency(%) Thermal oil circulation flow(m³/h) Fuel comsumption(Kg/h) max transportation weigh(t)
YLW-700 0.7 0.8/1.0 250-320 >83 45.7 187 16.9
YLW-1400 1.4 0.8/1.0 250-320 >83 87.4 373 22
YLW-2400 2.4 0.8/1.0 250-320 >83 149.8 621.3 28.6
YLW-2900 2.9 0.8/1.0 250-320 >83 155 756 24.2
YLW-4200 4.2 0.8/1.0 250-320 >83 225 989.3 30
YLW-5600 5.6 0.8/1.0 250-320 >83 336 1196 33.6
YLW-7000 7 0.8/1.0 250-320 >83 383.5 1657.4 18.2
YLW-8400 8.4 0.8/1.0 250-320 >83 536.2 1926.2 24.3
YLW-10500 10.5 0.8/1.0 250-320 >83 686.6 2442.6 27.5
YLW-14000 14 0.8/1.0 250-320 >83 869.1 3230 31
Note: Parameter is for reference only, if any changes should follow the factory technical data.
