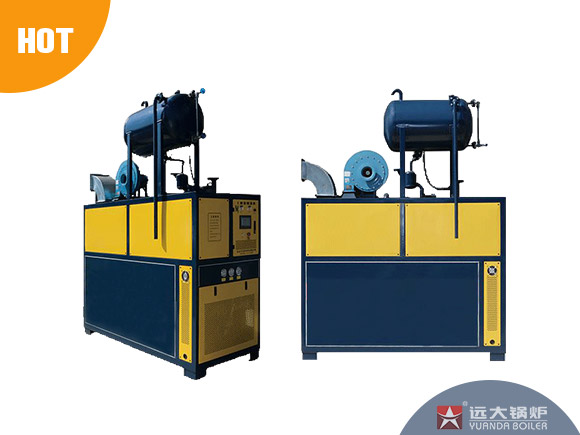

Small Gas Thermal Oil Heater
- Capacity:100kw-450kw, 80000kcal-400000kcal
- Heating temperature:0-300°C
- Fuel:Natural gas, lpg

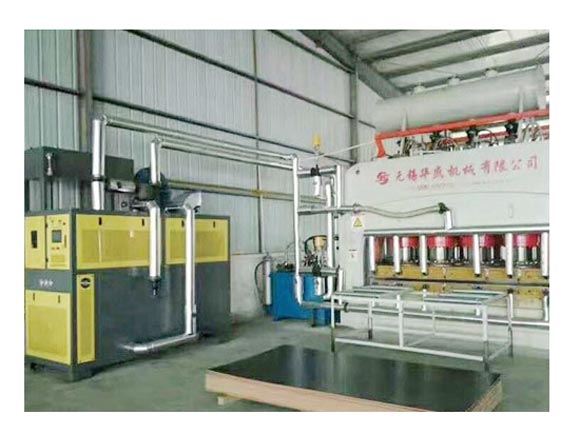

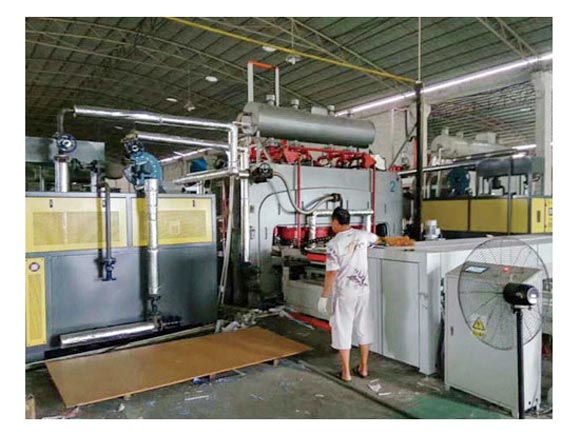

- Usage:Textile, plywood, rubber, bitumen, asphalt, buildings material...
- Features:Small thermal power, High efficiency energy saving, Fully automatic control system, Lower consumption cost

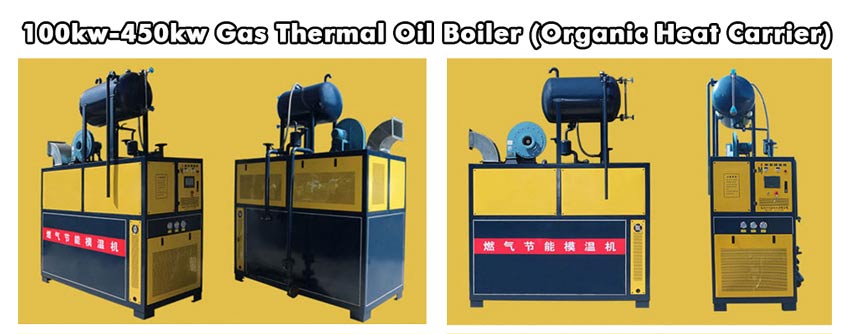

100kw-450kw Gas Thermal Oil Boiler
YD series Small Gas thermal oil boiler, small size thermal oil heating device, max thermal oil temperature up to 300°C. High thermal efficiency & energy saving device, automatic control system & no pollution & safety 100%.
Features & Advantages
1. Energy saving
Low operating costs, No need for complex water treatment equipment, saving water resources, It can replace water boiler heating in water-deficient areas.
2. Accurate temperature control
Stable heating , precse temperature adjustment, high automation.
3. High themal efficiency
Closed-crcuit heating, no waste heat emissions, good load adaptability. It can maintain thermal eficiency under diferent working conditions, high comprehensive thermal efficiency.
4. Safe and reliable
Complele operation control and safely monitoring device. Heating system opening operation, high safety factor.
5. High temperature and low pressure
Able to obtain a higher operating temperature at a lower operating pressure. Liquid phase conveying heat energy, in less than 300 ℃ the pressure of heat carier is about 70-80 times less than the saturated water steam, with thermal equipment pressure conditions can be greatly reduced.
6. International famous brand burner and advanced fully automatic control system make boiler combustion more stable, more convenient operation, more safe and reliable operation.
7. The furnace adopls the dense double coil
The heating surface is well arranged to reduce the heat load of the pipe surface. It makes the heat conduction oil use more safely.
8. The media flow is reasonable, the heat conduction oil from low (imported) to high (outlet), the gas produced by the operation is diffcult to stay in the funace, easily dicharge the system.
9. The furnace size is matched with the combustion flame, and the postive pressure combustion is used. The radiant heat exchange efficiency is high.
10. Design and manuacture of organic heat carier furnace in accordance with TSG G0001-2012《boier salety technical supervision procedures》, TSG G0002-2010 《boler energy-saving technical monitoring and management procedures》and gb/t17410 《Organic heat carrier furnace》 requirements.
Catalogue All Products
1. Gas boiler, Lpg boiler, Diesel boiler, Heavy oil boiler, Dual fuel boiler, Exhaust gas waste heat recovery boiler
2. Coal boiler, Charcoal boiler, Wood boiler, Biomass boiler, Pellet boiler, Ricehusk boiler, Palm shells boiler
3. Electric boiler, Electric steam generator, Electric hot water boiler,
4. Thermal Oil Heater Boiler, Thermic Fluid Heater, Hot Oil Boiler. (Powered by gas, diesel, electric, coal, wood biomass)
5. Steam Boiler, Hot Water Boiler, Steam Generator Boiler, Combined Heat and Power Boiler, Superheated Steam Boiler
About us Yuanda Boiler
1. All products Certified With ASME, CE, ISO, EAC, DOSH, TUV, BUV, Ensuring High Quality and Compliance with International Standards.
2. Our company established since 1956, over 65 years manufactureing experiences, 15 Years export experience.
3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.
4. Until now, our products have been exported to 103 countries all over the world, trustable quality & services for lifespan.
Model | Thermal Capacity) | Thermal Capacity | Gas Consumption(m³/h) | Max Work Temperature | Flow(m³/h) | Pump Lift(m) | Pump Power(kw) | Dimension |
---|---|---|---|---|---|---|---|---|
YD-150 | 150kw | 100,000kcal | 5-8 | 300°C | 12.5 | 32 | 3 | 1980*970*1680 |
YD-230 | 230kw | 200,000kcal | 12-16 | 300°C | 20 | 38 | 5.5 | 2350*1050*2600 |
YD-320 | 320kw | 300,000kcal | 18-22 | 300°C | 40 | 40 | 7.5 | 2680*1250*2800 |
YD-450 | 450kw | 400,000kcal | 26-30 | 300°C | 60 | 38 | 11 | 2680*1360*2800 |
YD-630 | 630kw | 600,000kcal | 42-46 | 300°C | 80 | 40 | 15 | 2960*1520*2800 |
Note: Parameter is for reference only, if any changes should follow the factory technical data. |
