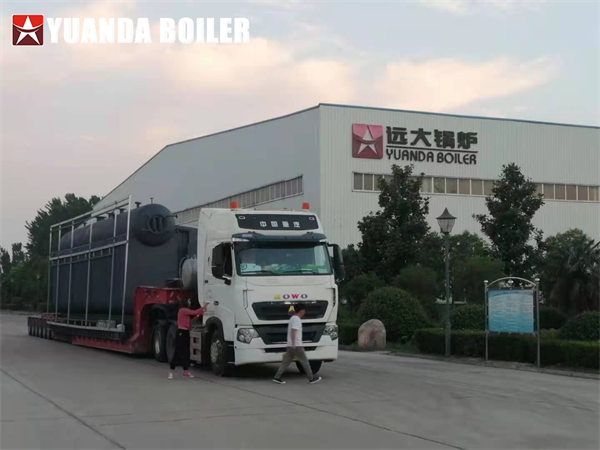

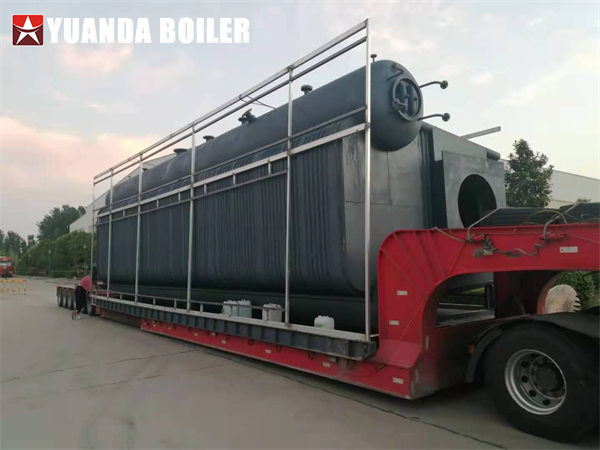

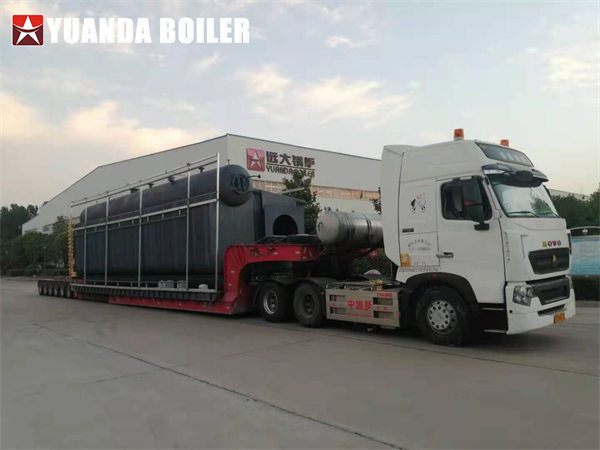

30Ton Water Tube Boiler Gas Powered Boiler Project

horizontal gas oil fired steam boiler, automatic fire tube steam boiler, popular used for all industrial business, high efficiency industrial gas oil boiler, 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 15ton 20ton 30ton.

Gas Lpg Diesel Fired Thermal Oil Boiler Thermal Liquid Fluid Heater in Vertical in Horizontal

YY(Q)W series hot oil boiler is horizontal type boiler with oil or gas as the fuel. Thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier, through the circulating pump to transfer the heat to other required heating equipments

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.High operating temperatures can be achieved under very atmospheric conditions. Greatly reduce operating pressure and safety requirements of the high-temperature heating system, improve the reliability of the system and equipment;
2. Satisfy all different temperature heating and cooling process requirements in a wider temperature range, besides, it can achieve the high-temperature heating and low-temperature cooling process requirements by using same heat-conducting oil in same system and same time. Reduce the complexity of system and operation;
3. The water treatment system and equipment are omitted, improve system thermal efficiency, reduce maintenance workload of equipment and pipelines. So that we can reduce the initial investment and operating costs of the heating system;
4. In the case of accidental system leakage, heat-conducting oil and open flame may burn. This is a problem need to pay attention compared to the water vapor system. However, promise there is no leakage, operating under low pressure, its operation safety is higher than that of water and steam systems.

Experience efficient and reliable hot water heating with the Vertical Gas Hot Water Heater Boiler. Designed specifically for the oil and gas industry, this 700kw central heating boiler delivers powerful performance. With its gas-powered operation, it ensures cost-effectiveness and reduced environmental impact. The vertical design optimizes space utilization, making it ideal for various industrial settings. Trust the Vertical Gas Hot Water Heater Boiler to provide consistent hot water supply, enhancing productivity and comfort within your oil and gas operations.

YY(Q)W series gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.Quick-setting high strength refractory material,have strong power of solidification and long using cycle.it does not shake off.
2.Integrated and wiring device,more convenience for the wire connection,make overhaul more simply,elegant appearance after installation
3.Double-deck aluminum silicate for heat preservation,the surface temperature of the boiler is no higher than 40℃,energy conservation and efficient
4.Design of angular and smooth surface of outsourcing panel,prevent the injury accident when checking the equipment
5.The outer oil collecting box is designed to prevent the slow rate of grease from carbonizing avoid air leakage
6.Double seal groove design, secondary prevent air leakage design, tight seal, avoid air leakage
7.Unique coil tube repair and integration process, the disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
8.Boiler multistage energy saving device design (the tail can set air preheater, wasted heat boiler,economizer),low smoke exhaust temperature, improve boiler efficiency 10%

Advantages
1.Double seal groove design
Secondary prevent air leakage design, tight seal, avoid air leakage
2.Unique tail heating surface design
Boiler rolling chamber wet back structure,small boiler heat loss,avoid overheat caused by over-burning of side panels, and increase thermal efficiency by 2-3%.
3.Unique coil tube repair and integration process
The disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
4.Boiler multistage energy saving device design
The tail can set air preheater, wasted heat boiler,economizer,low smoke exhaust temperature, improve boiler efficiency 10%
5.Design of angular and smooth surface of outsourcing panel
Prevent the injury accident when checking the equipment
6.Triple coil,three-pass smoke,fire wrapped in oil structure design,
Large radiant heating furnace,high thermal efficiency of the boiler,prevent the boiler shell from firing deformation at the high temperature
7.Research PCL control board independently,strong compatibility
PLC intelligent touch screen equipment,10-inch touch screen,fool-type operation,safe and reliable,automatic ignition/flame-out/fire switch,high fired gas,low pressure protection,gas leakage protection
8.Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable
9.60years’precipitation,mature production technicians team,good matching among the set of equipment,technology skilled,stable quality
10.material supplied by large international factory,manufactured by Anyang Iron Steel and Tianjin Seamless Steel Pipe plant,ensure the quality

WNS fire tube boiler, horizontal type furnace combustion boiler with gas/oil burner. Its fire-tube boilers and flue gas three pass boiler, special wet back structure make sure long using lifespan.

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.Quick-setting high strength refractory material,have strong power of solidification and long using cycle.it does not shake off.
2.Integrated and wiring device,more convenience for the wire connection,make overhaul more simply,elegant appearance after installation
3.Double-deck aluminum silicate for heat preservation,the surface temperature of the boiler is no higher than 40℃,energy conservation and efficient
4.Design of angular and smooth surface of outsourcing panel,prevent the injury accident when checking the equipment
5.The outer oil collecting box is designed to prevent the slow rate of grease from carbonizing avoid air leakage
6.Double seal groove design, secondary prevent air leakage design, tight seal, avoid air leakage
7.Unique coil tube repair and integration process, the disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
8.Boiler multistage energy saving device design (the tail can set air preheater, wasted heat boiler,economizer),low smoke exhaust temperature, improve boiler efficiency 10%

Advantages
1.Double seal groove design
Secondary prevent air leakage design, tight seal, avoid air leakage
2.Unique tail heating surface design
Boiler rolling chamber wet back structure,small boiler heat loss,avoid overheat caused by over-burning of side panels, and increase thermal efficiency by 2-3%.
3.Unique coil tube repair and integration process
The disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
4.Boiler multistage energy saving device design
The tail can set air preheater, wasted heat boiler,economizer,low smoke exhaust temperature, improve boiler efficiency 10%
5.Design of angular and smooth surface of outsourcing panel
Prevent the injury accident when checking the equipment
6.Triple coil,three-pass smoke,fire wrapped in oil structure design,
Large radiant heating furnace,high thermal efficiency of the boiler,prevent the boiler shell from firing deformation at the high temperature
7.Research PCL control board independently,strong compatibility
PLC intelligent touch screen equipment,10-inch touch screen,fool-type operation,safe and reliable,automatic ignition/flame-out/fire switch,high fired gas,low pressure protection,gas leakage protection
8.Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable
9.60years’precipitation,mature production technicians team,good matching among the set of equipment,technology skilled,stable quality
10.material supplied by large international factory,manufactured by Anyang Iron Steel and Tianjin Seamless Steel Pipe plant,ensure the quality

700KW 600000kcal Thermal Oil Heater Boiler

Yuanda WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology, equipped with international first-level brand burners and valve groups, and independently developed high-matching PLC control system to realize muitiple linkages. The lock protection function protects the equipment running safely.

8ton 10ton 15ton 20ton 25ton 30ton 40ton 50ton water tube oil gas boiler.

Introduction:
WNS series gas/oil fired steam boiler is horizontal three pass fire tube wet back full automatic steam boiler. It normally suitable for 500kg to 20ton/h capacity, use all kinds of gas and oil fuels,such as natural gas, lpg,lng,cng,city gas,biogas, diesel oil,heavy oil.

Appearance:
1.Professional industrialized packing design
Stainless steel outside,elegant appearance,corrosion prevention.
2.Technology blue hammer paint coating
Antiseptic and rustproof,good industrial quality
3.Double-deck aluminum silicate 12cm for heat preservation
Secondary air leak proof design,seal sealed,avoid air leakage
4.Double door open design about the front and rear smoke box
Elegant appearance,convenience for overhaul

China Yuanda Boiler Qualified with ISO CE ASME DOSH EAC. Industrial diesel gas fired steam generator boiler 4000kg/hour.
Horizontal fire tube wet back structure, high efficiency low cost low emission oil gas fired boiler.

Optimize your asphalt plant operations with the efficient and reliable Thermal Oil Heater. Specifically designed for asphalt plant use, this heater utilizes thermal oil as the heat transfer medium. With a capacity of 1400kw, it provides consistent and precise heat for asphalt production and processing. The Thermal Oil Heater ensures efficient and reliable heat transfer, enabling optimal asphalt quality and production efficiency. Trust this advanced heater to deliver clean and efficient heat, enhancing productivity and meeting the demanding requirements of asphalt plant operations. Experience reliable and high-quality heat transfer for your asphalt production needs.

High efficiency, low back pressure, ultra-low NOx emissions

Experience efficient and portable steam generation with the Container Type Steam Boiler. Specifically designed in China, this containerized boiler is powered by diesel oil, providing flexibility and convenience. With a capacity of 2000kg/hr, it ensures reliable and consistent steam production for various industrial applications. The container type design allows for easy transportation and installation, making it suitable for temporary or remote locations. Trust the Container Type Steam Boiler to deliver efficient and clean steam, enhancing productivity and meeting the unique requirements of your industrial processes.

YY(Q)W series adopting high quality corrugated coil to carry the heat conduction oil, increase the heat transfer area, reasonable gap between coil tubes to fit the hot expansion and cold contraction . Average coil tubes’ working life more than 17years.

WNS series gas oil fired boiler, three pass design fire tube structure boiler, use famous brand burner, high quality design with high thermal efficiency, help saving energy, low fuel consumption.

Enhance the steam generation capabilities of your chemical industry company with the 20Ton Water Tube Steam Boiler. This automatic gas boiler is designed to provide efficient and reliable steam production for chemical industry applications. With its high capacity of 20 tons, it meets the demands of large-scale operations. The water tube design maximizes heat transfer efficiency, ensuring optimal performance and energy utilization. Trust the 20Ton Water Tube Steam Boiler to deliver consistent and clean steam, improving productivity and meeting the specific requirements of the chemical industry. Experience reliable and high-quality steam for your chemical manufacturing processes.

Elevate your heat transfer capabilities with the 1400kw Gas Fired Hot Oil Boiler YYQW Horizontal Boiler. Specifically designed for efficient heat transfer, this horizontal boiler utilizes gas as its fuel source. With a capacity of 1400kw, it provides reliable and consistent heat for various industrial applications. The YYQW design ensures optimal heat transfer efficiency, making it suitable for a wide range of heating processes. Trust the Gas Fired Hot Oil Boiler YYQW Horizontal Boiler to deliver clean and efficient heat, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with this advanced horizontal boiler solution.

textile factory steam boiler, 2ton steam boiler for textile, natural gas fired boiler

Yuanda Industrial hot water boiler supplier manufacturer since 1956, diesel hot water boiler, gas hot water boiler.

Exhaust gas boiler, use waste heat/exhaust gas/high temperature smoke. heating water or generating steam.
Exhaust gas steam geneator boiler, work for diesel engine,gas engine,turbine generator.

15Ton automatic gas burner boiler, generating 15000kg/hr saturated steam, WNS series gas fired steam boiler with high thermal efficiency, energy saving gas steam boiler, low gas consumption boiler.

Large combustion chamber with low heat release for complete combustion. 2ton heavy oil boiler,automatic steam boiler,2000kg fuel oil boiler

1. The small water volume, fast steam generating. LHS Series steam boiler has vertical design and compact structure, just requires small floor space;
2. Adopting large-volume steam chamber, and lay-in steam/water separator can produce high-quality steam stably;
3. The lay-in low water level protection device to detect the change of water level at any time, totally avoid dry-burning and operation accidents;
4. LHS Series vertical type steam boiler is equipped with high-quality pressure relief valve, water level electrode, water level gauge, pressure gauge, pressure controller, and other accessories to ensure boiler’s reliable operation.

industrial gas oil fired hot water boiler, widely used for central heating in hotel, greenhouse, school, warehouse, buildings. High thermal efficiency hot water boiler, offer boiler solutions for heating water usage.

Bangladesh experienced boiler services, lots of boilers used for all industrial, popular used in textile, paper plant, food factory, chemical factory.

Boiler Running Advantages
(1)Our boiler design big size water volume,the steam output is stable and steam quality is good.
(2)Design special steam water separator,reduce steam humidity and improve steam quality.
(3) Adopt bog size whole corrugated furnace,big heating area,satisfy the free expansion of boiler, improve the boiler efficiency.
(4) Explosion proof door design,prevent explosion, reduce the damage to the boiler, improve the safety of boiler.
(5) New type refractory material,solidification strong, long using life,which will not fall off after shaking.
(6) 61 years boiler manufacturing experience, mature design and production team.
(7) Continuous feeding water vertical multistage centrifugal stainless steel pump,no need manual adjustment and at same time, ensure the stable&safety running of boiler.
