Industrial Biomass Burner Boiler 10ton/hr Steam Boiler For Industries

Boiler advantages
1.Design the cyclone chamber inside the chamber of the stove
When the high temperature smoke through the cyclone chamber,smoke rotate with high speed and burn thoroughly.Improve the heat efficiency of boiler,the big dust settle down ,achieve the result of secondary combustion and first dust removal.
Energy conservation,high efficiency,environment friendly.
This design obtains national patient.
2.Separate wind chamber structure
Make air regulation sensitive and make wind uniformly in landscape orientation in the reliable longitudinal wind chamber.
Resolve the wind plug,wind channeled,partial burn phenomenon.
The design obtains national patent.

8Ton biomass fired boiler, the complete system including boiler and burner, biomass burner inner use step grate combustion design, boiler is double drums water tube boiler.

Upgrade your steam boiler system with the efficient and automated SZL Series Automatic Biomass Pellets Boiler. This water tube steam boiler is specifically designed to utilize biomass pellets as a renewable and environmentally friendly fuel source. With its automatic operation, it ensures convenient and hassle-free steam production. The water tube design maximizes heat transfer efficiency and ensures optimal energy utilization. Trust the SZL Series Automatic Biomass Pellets Boiler to deliver consistent and clean steam for a wide range of industrial applications. Enhance your productivity and reduce carbon footprint with this advanced steam boiler system.

DZL boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. The combustion traveling chain grate can feed the fuels automatically, with different rolling speed can adapt different fuels’ burning speed. Also, the small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

dzl biomass steam boiler,chain grate biomass boiler 4ton,china biomass fired boiler

Biomass burning hot air stove, high temperature air generating, use for heating, drying.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

Upgrade your thermal oil heating system with the powerful and efficient 4200kw YLW Biomass Thermal Oil Boiler. Designed for reliable and sustainable heat generation, this boiler utilizes biomass as its fuel source. With its high capacity of 4200kw, it provides ample thermal energy for various industrial applications. The YLW Biomass Thermal Oil Boiler incorporates a steam generator, allowing for the production of both thermal oil and steam. Trust this advanced boiler to deliver consistent and clean heat, enhancing productivity and reducing environmental impact. Experience efficient and eco-friendly heating solutions for your industrial processes.

China high tech design biomass boiler, water tube membrane-walll design, double water drums boiler. It is automatic biomass feeding boiler, with high thermal efficiency >88%. Availbale to burning woodchips, pellets, husk, coconuts waste, palm shells waste, wood logs, agro waste…

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

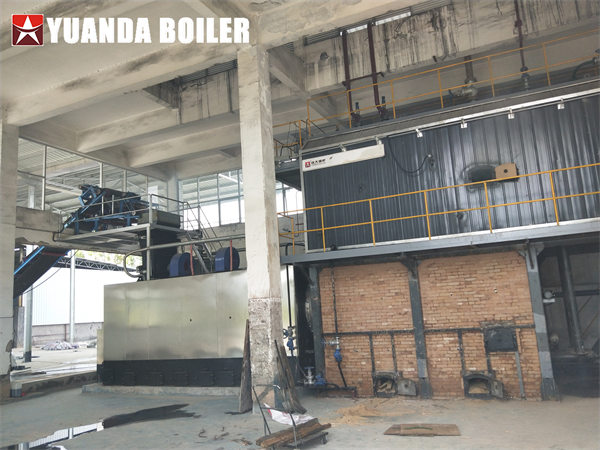

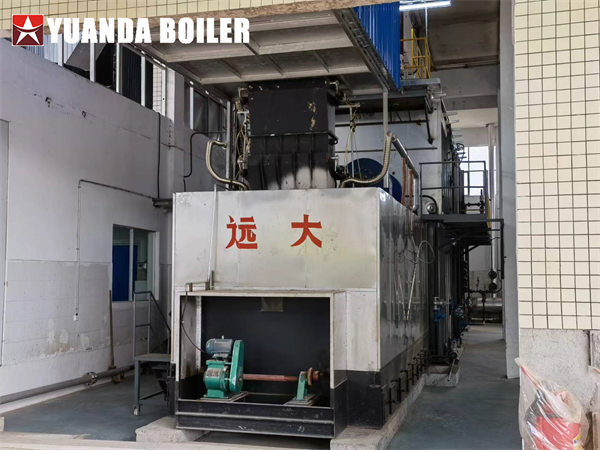

SZS 8ton water tube furnace boiler, with biomass burner. Industrial fire tube biomass fuel fired boiler, automatic type biomass burner boiler.

Biomass Steam Boiler 8Ton/hour In Palm Oil Mill
Site: Indonesia
Boiler Model: SZF8-1.25-SCII
Boiler Fuel: Biomass, Palm Fibre, Palm Kernel Shells

DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.

DZL Biomass Fired Boiler advantages

1. Reliable Operation:
The heating surface of boiler is reasonably settled, the water circulation fluent, to ensure that each heating furnace cool down timely, and ensure the boiler running safety.

2. Easy Maintenance:
The top of boiler barrel set manhole, serviceman can enter to inspect and maintain. The front smoke box easy to open, serviceman can easy and clear inspect, provide excellent conditions for correctly handle.

3. Full Combustion:
In the cooperation of blower, and reasonable design of furnace structure, the fuel can be fully burning, can remove the black smoke effectively.

4. High Efficiency Grate:
Boiler grate use matching coal fuels grate, avoid the problem of air leakage, fuel leakage and uneven ventilation, and easy operation, have lots of advantages compared to traditional grate.

5. Easy to Remove Ash:
Set several remove ash hole on boiler, can remove ash timely and efficiently, to avoid ash deposition in boiler making the boiler running is affected or thermal efficiency is dropped etc. To ensure stability of boiler loading.

6. High Security:
Feed water system adopt computer controlling, automatic feed water. Equip with water lack protection and over pressure protection devices, security and reliable.

7. Long Life and Durable:
Excellent professional design, advanced production processes, strict quality inspection control, is the quality assurance of each boiler, the service life of normal use boiler all above 20 years.

8. Environmental Protection and Low Noise:
The boiler smoke is low emission, and equip with high efficiency dust remove device at boiler end, low noise fans, to make the smoke emission reach to nation environmental protection requirements.

DZH series manual coal/wood/biomass fired boiler, travelling grate boiler. Inner water-tubes & fire-tubes design.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

SZL series high efficiency biomass boiler, inner water tube structure, 2ton 4ton 6ton 8ton 10ton 12ton 15ton 20ton 30ton biomass waste fired boiler, high tech deign double drums & water membrane wall deign.
Yuanda biomass boiler can burn solid waste, biomass pellets, ricehusk, palm shells, palm kernel shells fibre, coconuts shells, peanute shells, sawdust, wood waste, wood pellets, wood log, woodchips, agro forest waste…

Optimize your heat generation in the furniture industry with the Automatic Biomass Thermal Oil Heater. Specifically designed for the furniture industry, this thermal oil heater utilizes biomass as a sustainable and renewable fuel source. With its automatic operation, it ensures convenient and hassle-free heat production. The thermal oil system provides consistent and efficient heat transfer for various furniture manufacturing processes. Trust the Automatic Biomass Thermal Oil Heater to deliver reliable and clean heat, improving productivity and reducing environmental impact in the furniture industry. Experience efficient and eco-friendly heating solutions tailored to your furniture manufacturing needs.

SZL Series Water Tube Boiler Double Drums Chain Grate Coal Fired Boiler For Production Heat & Power

SZL series biomass-fired steam boiler is package or shop-assembled water tube boiler with double steam drum and chain grate stoker structure. 4-6 tph boiler is package boiler and 6-35 tph is shop-assembled structure, which is composed of 2 parts, upper part is heat absorbing surface and lower part is combustion equipment. The former part of boiler body is surrounded by membrane wall, its upper part connects with boiler drum and lower part connects with header, which forms a combustion chamber to absorb the radiated heat from furnace; there are dense convection tube bundle between the back side of upper and lower drum, the high temperature smoke enters a separate economizer after flushing heat absorbing surface then discharge from chimney.

YLW coal fired thermal oil boiler is a kind of new type heating equipment, the fuel could be coal, biomass or flue gas, the heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. It is an safe and low energy consumption boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The boiler medium is working under liquid state, so it is safe and reliable.

DZL biomass fired steam boiler with chain grate device
1.Automatic feeding, automatic ash remove function.
2.Long life time, more than 10 years.
3.62 years experience for manufacturing, mature technology.
4.Big furnace and heating area, advanced design.
5.Full automatic control, Protection devices for overheating, over pressure, lacking water, leak detection, flame out
6.Enough steam output, less heat dissipation, high thermal efficiency.lowest fuel consumption, lower power consumption.
7.with 95% high efficiency dust collector, more Eco-friendly.
8.The featured structure of the boiler: Threaded pipe, Airfoil flue , Convex tube plate , The backwater towards high temperature tube plate, Simple loop circuit, Dust separated chamber, big furnace, compact structure so on.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

YLW Horizontal wood/biomass thermal oil boiler.
Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

Thermal oil boiler could instead steam boiler for industrial production, to improve productivity. Yuanda thermal oil boilers are widely used for petroleum chemical industry, Oleochemical industry, Synthetic fiber industry, textiel printing and dyeing industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food indstry, electrical equipment industry, coking industry, etc.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

SZL Series water tube biomass boiler, is double drums offset furnace structure (“D” type), with Chain Grate Stoker. Boiler with advantages of high technology, environmental and energy saving.
