Automatic Gas Oil Boiler Horizontal Three Pass Fire Tube Boiler 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 15ton 20ton

China popular gas oil fired boiler, it’s horizontal three pass design boiler, fully automatic operation, has high thermal efficiency help saving consumption cost. Suitable thermal capacity 0.5ton-20ton, 0.35mw-14mw. Available fuel: gas diesel lpg heavy-oil dual-fuel exhaust gas.

Rated 4.9/5 based on 563 customer reviews
Share:
Content
Introduction

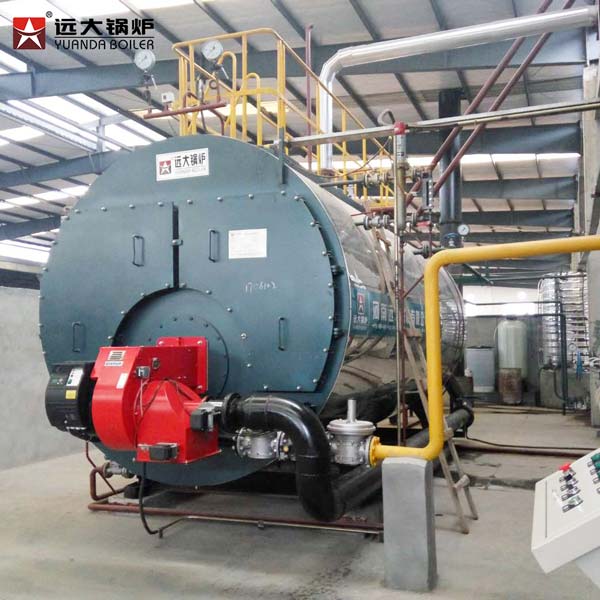

WNS gas oil fired boiler

WNS series fire tube gas (oil) boiler

(use gas, diesel, lpg, heavy oil, dual fuel, exhaust gas)


WNS fire tube boiler, WNS means horizontal type furnace combustion boiler with gas/oil burner. Its fire-tube boilers and flue gas three pass boiler, special wet back structure make sure long using lifespan.

WNS horizontal gas diesel boiler, wns fire tube boiler

 Advantages  WNS boiler features

1. 100% Safety Control Boiler & Strict Boiler Quality Control

1)All welding strictly meet the requirements of China NB/T 47014(JB/T 4708)

2)Anti Dry Heating Control System with double safety valves, double water level gauges, double secure of safe operation

3)With explosion-proof door with fire viewer, If burner failure ignition, this door can release the pressure out, protect the damage to welding parts

2. Energy Saving & High Efficiency

1)Spiral fire tube, the advanced technology, to enhance the boiler thermal power 10-15% higher than normal, and avoid the spiral tube from ash deposition and wearing

2)Spirally corrugated furnace & Wet back structure, increased 10% heating area, avoid damaged by heat expansion, reduce the back tube sheet temperature and protect it from cracking

3. High Quality Steam-Wetness Below 1%

1) We equip a steam separation under the steam output port.

2)With continuous water feed function,Make the water level is stable instead of  big differences

3)Bigger water tank design, boiler with bigger water volume and bigger steam space

WNS gas diesel boiler

Remark  Boiler Auxiliaries

1. Burner: We use stable brand burner, we have closed cooperation with Baltur, Riello, Unigas, Oilon etc.

2. Economizer: Recycle exhausted smoke to heat feed water, increase 40 ℃ to the feed water before boiler, reduce exhausted smoke temperature below 95 ℃, save fuel at least 6% per hour

3. Control panel: PLC program system + 10” Touch Screen | Voice function | Designed with converter to save electricity | With protection devices for overheating, overpressure, lacking water, gas leak detection, flameout etc.

4. Valves & Gauges: Pressure transmitter | Danmark brand Pressure Controller | Pressure Gauge | Electric Connecting Pressure Gauge

5. Feeding Water Pump: Offer 2 sets Vertical stainless type, China Top No. brand of CNP

gas oil boiler accessories

You may like

 Related  Vertical boiler, Thermal oil boiler

vertical gas diesel boiler,thermal oil boiler,industrial oil heater

Why Choose Us ?

1. We offer all kinds of boiler machine, customized service for customers’ demand, send your specific details to us.

2. 60+Years’ experience in boiler design, technique, production, installation and operation. 10+Years export boiler experience.

3. Global service team for boiler solution, boiler design, order contract, boiler delivery, boiler install and commissioning.

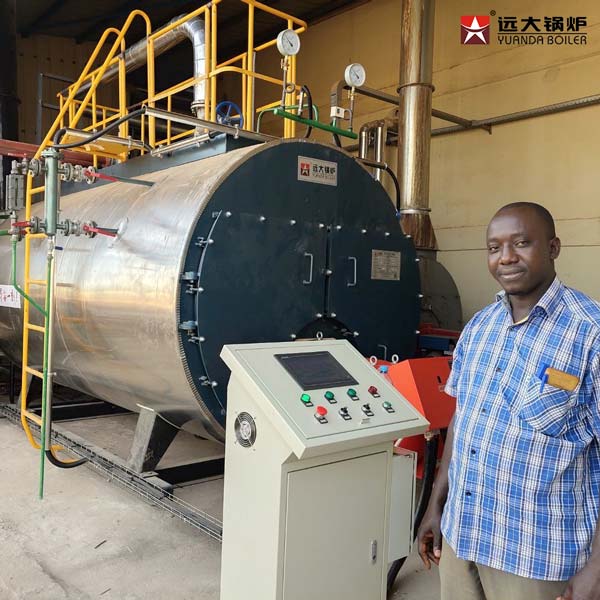

Global Boiler Service

1. Offer catalogue, various boiler model for choose, inquire one you prefer.

2. Technical discussion on boiler system solution for your company use.

3. Warmly welcome all customers come to visit the production base

4. Trustable after sale service, for boiler installation, training operators.

5. Whole life service for boiler consult, contact us whenever.

6. Until 2020, Yuanda products have covered all provinces and cities of China and have been exported to 86 countries and regions such as Bangladesh, Nigeria, Chile, Russia, etc. More than 8000+ boiler projects worldwide !

Parameter
Model Rated capacity(t/h) Rated pressure (Mpa) Rated temperature(℃) feed temperature(℃) Thermal efficiency(%) Exhaust temperation(℃) Fuel comsumption max transportation weigh(t)
light diesel oil(kg/h) natural gas(Nm³/h)
WNS0.5 0.5 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 32.5 35.7 3.5
WNS1 1 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 64.5 70.1 5.5
WNS2 2 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 129.3 140.3 8
WNS3 3 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 192.9 212.1 10.7
WNS4 4 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 258.2 283.4 11.6
WNS6 6 1.0/1.25/1.6 184/194/204 20/104 >98 60-75 388.6 424.2 17.5
WNS8 8 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >98 60-75 514.6 566.3 22.5
WNS10 10 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >98 60-75 641.7 707.8 26.8
WNS15 15 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >98 60-75 960.1 1061.7 35.2
WNS20 20 1.0/1.25/1.6/2.5 184/194/204/226 20/104 >98 60-75 1276.2 1415.8 45.5
Note: Parameter is for reference only, if any changes should follow the factory technical data.
Inquiry
Please feel free to submit your inquiry information to us. We will contact with you as soon as possible
* Your Email : Your name :   Your tel :   Your Country : * Your inquiry :
More Gas Oil Boiler

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.Quick-setting high strength refractory material,have strong power of solidification and long using cycle.it does not shake off.
2.Integrated and wiring device,more convenience for the wire connection,make overhaul more simply,elegant appearance after installation
3.Double-deck aluminum silicate for heat preservation,the surface temperature of the boiler is no higher than 40℃,energy conservation and efficient
4.Design of angular and smooth surface of outsourcing panel,prevent the injury accident when checking the equipment
5.The outer oil collecting box is designed to prevent the slow rate of grease from carbonizing avoid air leakage
6.Double seal groove design, secondary prevent air leakage design, tight seal, avoid air leakage
7.Unique coil tube repair and integration process, the disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
8.Boiler multistage energy saving device design (the tail can set air preheater, wasted heat boiler,economizer),low smoke exhaust temperature, improve boiler efficiency 10%

Advantages
1.Double seal groove design
Secondary prevent air leakage design, tight seal, avoid air leakage
2.Unique tail heating surface design
Boiler rolling chamber wet back structure,small boiler heat loss,avoid overheat caused by over-burning of side panels, and increase thermal efficiency by 2-3%.
3.Unique coil tube repair and integration process
The disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
4.Boiler multistage energy saving device design
The tail can set air preheater, wasted heat boiler,economizer,low smoke exhaust temperature, improve boiler efficiency 10%
5.Design of angular and smooth surface of outsourcing panel
Prevent the injury accident when checking the equipment
6.Triple coil,three-pass smoke,fire wrapped in oil structure design,
Large radiant heating furnace,high thermal efficiency of the boiler,prevent the boiler shell from firing deformation at the high temperature
7.Research PCL control board independently,strong compatibility
PLC intelligent touch screen equipment,10-inch touch screen,fool-type operation,safe and reliable,automatic ignition/flame-out/fire switch,high fired gas,low pressure protection,gas leakage protection
8.Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable
9.60years’precipitation,mature production technicians team,good matching among the set of equipment,technology skilled,stable quality
10.material supplied by large international factory,manufactured by Anyang Iron Steel and Tianjin Seamless Steel Pipe plant,ensure the quality
