Bangladesh 2Ton Coal Feeding Boiler In Garments Factory

Safe Operation
DZH series is equipped with automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, visible system’s working states on screen.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

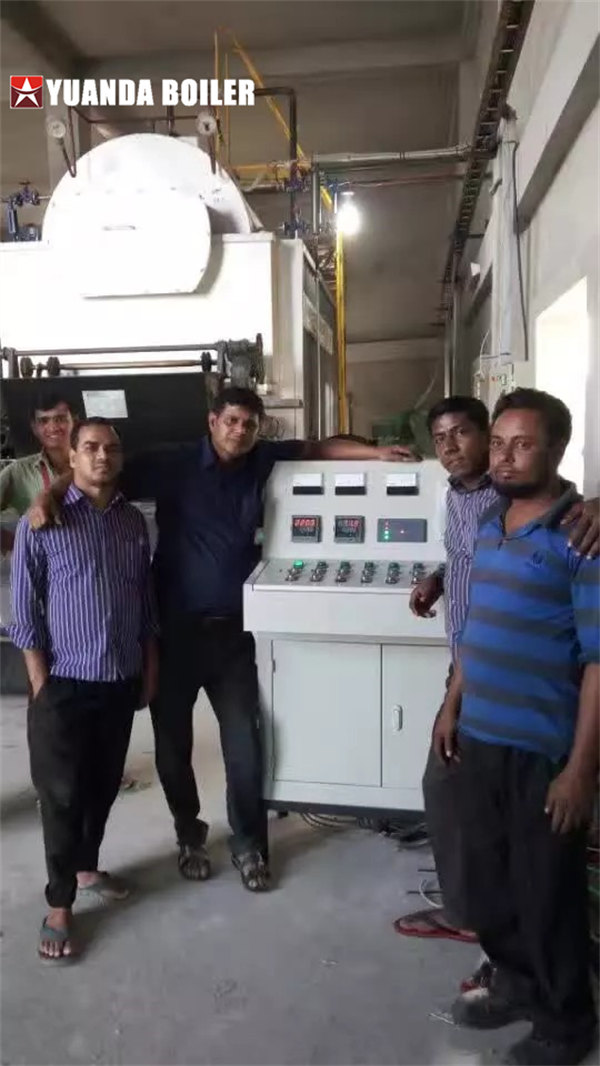

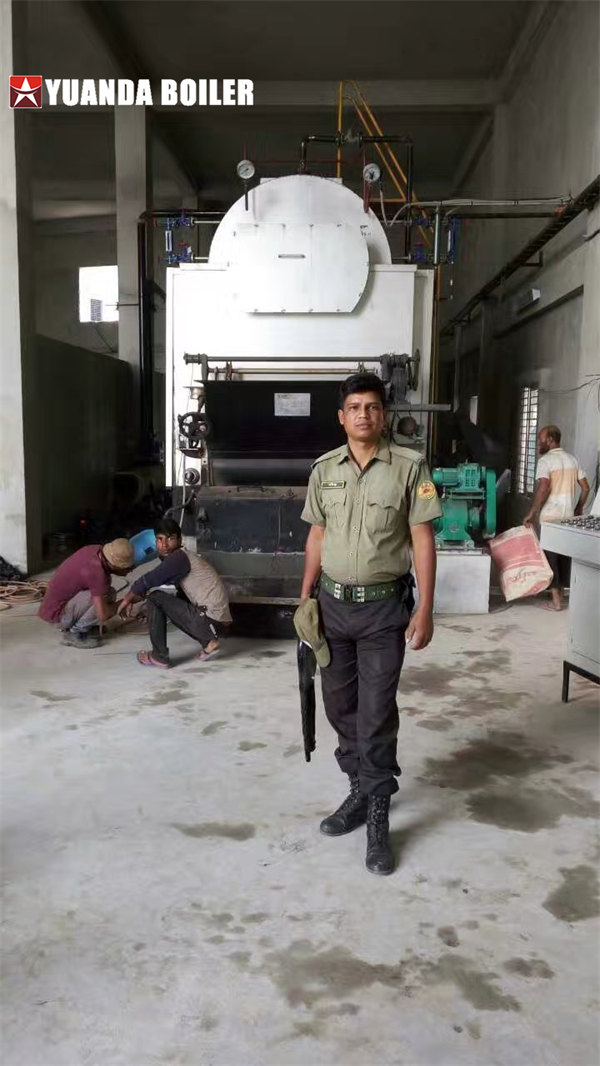

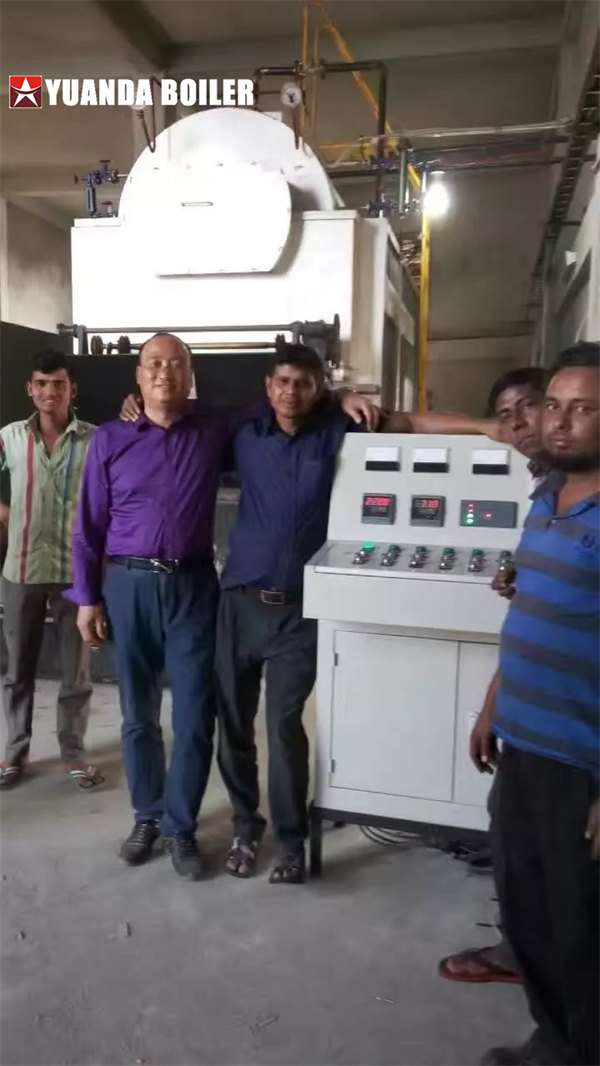

2000kg 2ton manual feeding coal biomass fired steam boiler in bangladesh textile garments factory

DZL series coal fired horizontal type packaged boiler is single drum longitudinal type with natural circulation, the main components are installed within the factory. After installing the large parts, just need to setup pipeline, instrumentation valves, flue duct, and slag extractor, etc, connect water and electricity power, and incorporated into the heating network system, then the boiler could operate.
This boiler is consisted of boiler drum, furnace and convection pass, which are made up of two sides water-cooled tubes, the front smoke box is consisted of four casing pipes and front tube plate, the boiler drum is equipped with thread convection tubes. Chain grate is under the water cooling system, to support the whole boiler body, to form a packaged boiler.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

YLW series thermal oil heater is horizontal type boiler with coal or biomass as the fuel. The combustion equipment is chain grate. Coal or biomass thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier.

The DZL Coal Steam Boiler can be used for the following business: Chemical plant, Textile plant, Food & Beverage,Garment manufacturing, Paper Plant,Printing and dyeing mill, Cement Plant, Fertilizer plant, Feed mills, Rubber factory, Schools, Hotel, Bath Center, Swimming Pool, Hospital, Hotel, etc.
The most important thing is that our boilers are all tailor-made.They are designed all depending on your business,including on the fuel,capacity,pressure and so on you need.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

General introduction
SZL series is a horizontal water-tube large stove biomass boiler, With automatic fuel feeding and chain grate, boiler work efficiently and safety running.
The furnace structure (D) is adopted with double drum, high technical content and energy saving and environmental protection. The series products won the second prize of national science and technology progress, won the golden lion of Singapore new product fair, are the national energy-saving engineering key promotion product.

DZL series chain grate coal hot water boiler 0.7mw 1.4mw 2.8mw 3.5mw 4.2mw 5.6mw

SZL Series water tube biomass boiler, is double drums offset furnace structure (“D” type), with Chain Grate Stoker. Boiler with advantages of high technology, environmental and energy saving.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

General Introduction
1.Automatic feeding, automatic ash remove function.
2.Long life time, more than 10 years.
3.62 years experience for manufacturing, mature technology.
4.Big furnace and heating area, advanced design.
5.Full automatic control, Protection devices for overheating, over pressure, lacking water, leak detection, flame out
6.Enough steam output, less heat dissipation, high thermal efficiency.lowest fuel consumption, lower power consumption.
7.with 95% high efficiency dust collector, more Eco-friendly.
8.The featured structure of the boiler: Threaded pipe, Airfoil flue , Convex tube plate , The backwater towards high temperature tube plate, Simple loop circuit, Dust separated chamber, big furnace, compact structure so on.

DZL series automatic coal fired boiler, popularly used for all industrial. Famous as”automatic chain grate boiler”. Automatic feeding coal stoker boiler, help saving labor work, efficient boiler operation work.
DZL coal steam boiler, with strong burning ability, high thermal efficiency coal burning boiler.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1.The output power remain constant
2.The boiler is heating up quickly and have high heat efficiency
3.Low original dust concentration,environmental protection and energy conservation
4.High quality of steam
5.Strong water quality adaptability
6.Small size appearance, low investment in boiler room
7.Low running cost, safe and reliable (safety and reliability)
8.Short installation time, low installation cost

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

The DZL/DZH new water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and famous Harbin institute of Technology and director of Beijing Institute of Light Boiler.
Boiler advantages
1.The output power remain constant
2.The boiler is heating up quickly and have high heat efficiency
3.Low original dust concentration,environmental protection and energy conservation
4.High quality of steam
5.Strong water quality adaptability
6.Small size appearance, low investment in boiler room
7.Low running cost, safe and reliable (safety and reliability)
8.Short installation time, low installation cost

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler;
Featureas of DZL boiler:
1. Adopting the new-type structure
The new-type structure steam boiler adopts single drum vertical type arrangement, and two sides of the furnace are arranged with water cooled wall. The upper part is welded with the boiler drum, and the lower part is welded with the right and left container. The back arch and the drum space are arranged with convection bank, whose upper part is welded with boiler drum, and whose lower part is connected with all containers. It is the compact structure.
2. Organizing the fire in the furnace reasonably. The furnace adopts double layers anti-burning structure which is formed by the pre-combustion chamber and combustion chamber. As for the boiler design, dividing the furnace into the pre-combustion chamber and combustion chamber, which is good for strengthening the fuel burning, and decreasing flying ash fuel and flying ash content.
3. Among the convection tubes, there are many smoke baffle walls, which can make fire turning-back many times and are good for removing the dust of the furnace. Boiler itself has a dust removal function, so that dust emissions from the boiler to reach the target state environmental regulations. This series of boiler adopts arched tube plate, two-wing flue pipe etc, thread, solve the smoke pot shell boiler tube plate cracking, the bulge, tube boiler water-cooled wall tube, thermal efficiency is low, the coal output, adaptability, etc.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

DZH series manual coal/wood/biomass fired boiler, travelling grate boiler. Inner water-tubes & fire-tubes design.

Yuanda DZL series chain grate stoker boiler & Steam Boiler & Hot Water Boiler.

Introduction of SZL series boiler
SZL series product has a double-drum offset hearth(D-type layout), great apply for biomass fuel, environmental protection and energy conservation,and is a key promoted product of national energy-saving projects. Honor of this boiler:
1.National Scientific and Technological Progress Second Prize
2.Singapore New Product Expo Golden Lion Award

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Details about the boiler:
1.Fuel:Coal,solid fuel,anthracite,bitumite,lignite
2. DZL Chain grate stoker boiler,automatic burning
3. Single drum,water tube and fire tube boiler
4. Sufficient and Steady Capacity
5. Rapid Warming and High Heat Efficiency
6. Low Original Dust Discharge Concentration, Environmental Protection and Energy Conservation
7. High Steam Quality
8. Strong Water Quality Adaptability
9. Small Overall Dimensions and Low Boiler Room Investment Cost
10. Low Operating Cost, Safety and Reliability
11. Short Installation Time, Low Installation Cost.e combustion efficiency.

The DZL Coal Steam Boiler can be used for the following business: Chemical plant, Textile plant, Food & Beverage,Garment manufacturing, Paper Plant,Printing and dyeing mill, Cement Plant, Fertilizer plant, Feed mills, Rubber factory, Schools, Hotel, Bath Center, Swimming Pool, Hospital, Hotel, etc.
The most important thing is that our boilers are all tailor-made.They are designed all depending on your business,including on the fuel,capacity,pressure and so on you need.
