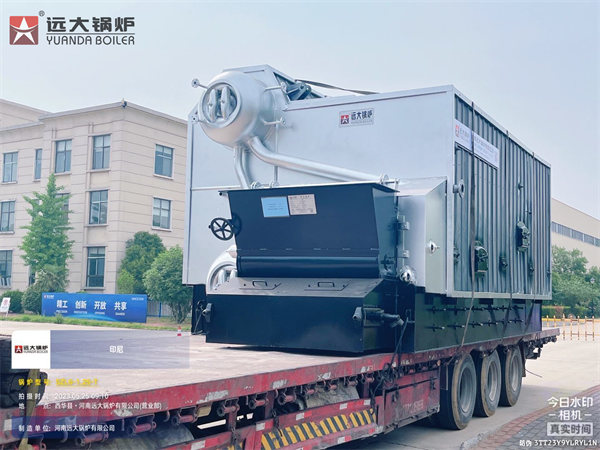

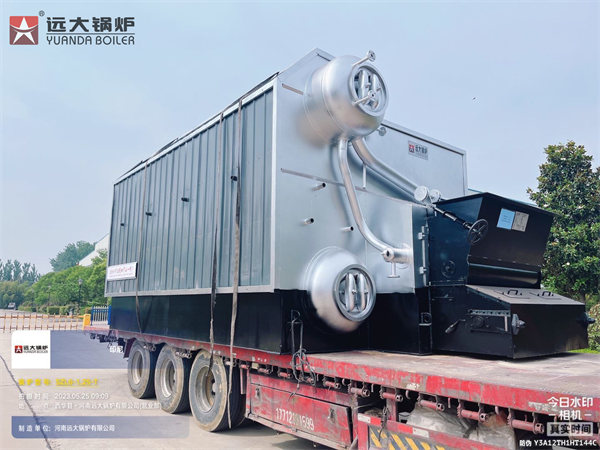

Indonesia Palm Oil Plant Use 6Ton Biomass Boiler For Productions

Upgrade your steam boiler system with the efficient and automated SZL Series Automatic Biomass Pellets Boiler. This water tube steam boiler is specifically designed to utilize biomass pellets as a renewable and environmentally friendly fuel source. With its automatic operation, it ensures convenient and hassle-free steam production. The water tube design maximizes heat transfer efficiency and ensures optimal energy utilization. Trust the SZL Series Automatic Biomass Pellets Boiler to deliver consistent and clean steam for a wide range of industrial applications. Enhance your productivity and reduce carbon footprint with this advanced steam boiler system.

SZL water tube biomass boiler, is double drums offset furnace structure (“D” type boiler or “A” type boiler). Its has advantages of high technology, environmental and energy saving. Thermal capacity in 2ton-50ton.

Boiler advantages
1.Design the cyclone chamber inside the chamber of the stove
When the high temperature smoke through the cyclone chamber,smoke rotate with high speed and burn thoroughly.Improve the heat efficiency of boiler,the big dust settle down ,achieve the result of secondary combustion and first dust removal.
Energy conservation,high efficiency,environment friendly.
This design obtains national patient.
2.Separate wind chamber structure
Make air regulation sensitive and make wind uniformly in landscape orientation in the reliable longitudinal wind chamber.
Resolve the wind plug,wind channeled,partial burn phenomenon.
The design obtains national patent.

DZL biomass fired steam boiler with chain grate device
1.Automatic feeding, automatic ash remove function.
2.Long life time, more than 10 years.
3.62 years experience for manufacturing, mature technology.
4.Big furnace and heating area, advanced design.
5.Full automatic control, Protection devices for overheating, over pressure, lacking water, leak detection, flame out
6.Enough steam output, less heat dissipation, high thermal efficiency.lowest fuel consumption, lower power consumption.
7.with 95% high efficiency dust collector, more Eco-friendly.
8.The featured structure of the boiler: Threaded pipe, Airfoil flue , Convex tube plate , The backwater towards high temperature tube plate, Simple loop circuit, Dust separated chamber, big furnace, compact structure so on.

Upgrade your steam generation capabilities with the 6Ton Water Tube Biomass Fuel Steam Boiler. This high-capacity boiler is specifically designed for efficient and reliable steam production using biomass as its fuel source. With its automatic feeding system, it ensures a continuous and hassle-free operation. The water tube design maximizes heat transfer efficiency and energy utilization. Trust the 6Ton Water Tube Biomass Fuel Steam Boiler to provide consistent and clean steam for various industrial applications. Enhance your productivity and reduce environmental impact with this advanced steam boiler solution.

2000kg 2ton manual feeding coal biomass fired steam boiler in bangladesh textile garments factory

Thermal oil boiler(also called organic heat carrier furnaces) generally use coal, oil, and gas as fuels, take heat-conducting oils as the medium, force liquid to circulate in the liquid medium by using oil circulation pump, transferring heat energy to the heating equipment, then heat-conducting oil return to furnace and reheating.Boiler can reach high temperature at low pressure,control medium operating in high-precision.

SZL double drum water tube steam boiler is horizontal type water tube boiler, the combustion equipment is chain grate. The boiler adopts fast assembly or packaged assembly structure, boiler with steam capacity lower than 4t/h is fast assembly water tube structure, boiler with steam capacity between 6~25t/h is consisted of upper part (boiler heated part) and lower part (combustion equipment). The wood fired hot water boiler has the advantages of compact structure, high steam quality, sufficient output, operate convenient and environmental protection.

High quality control
In manufacturing processes, we has adopting steel strength test, automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test,etc, to make sure all finished products is qualified.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

Biomass burning hot air stove, high temperature air generating, use for heating, drying.

Experience convenient and efficient central heating with the portable container room biomass hot water heater boiler. This innovative boiler is designed to provide reliable hot water heating using biomass as its energy source. With its portable container design, it offers flexibility and ease of installation, making it a perfect choice for various applications. Enjoy sustainable and cost-effective central heating solutions that reduce environmental impact. Trust the portable container room biomass hot water heater boiler to deliver reliable and eco-friendly heating for your home or commercial space.

8Ton biomass fired boiler, the complete system including boiler and burner, biomass burner inner use step grate combustion design, boiler is double drums water tube boiler.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

Enhance the sustainability of your pharmaceutical industry operations with the 10tph Biomass Burner Boiler. Designed specifically for the pharmaceutical industry, this biomass burner boiler utilizes renewable biomass fuel to provide efficient heat and steam generation. With its high capacity, it ensures reliable and consistent performance for your production processes. The biomass burner reduces carbon emissions and promotes eco-friendly energy solutions. Trust the 10tph Biomass Burner Boiler to deliver sustainable and cost-effective heating and steam supply, meeting the specific needs of the pharmaceutical industry and contributing to a greener future.

DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.

Better fuel adaptability
Comparing with DZL boiler, DZH boiler has better adaptability on fuels, it can fire coal, rice husk, nut shell, sawdust, waste wood pieces, also can fire wood logs, straws. But, DZH boiler can only support manual fuel feeding, and manual ash remove.

Upgrade your thermal oil heating system with the powerful and efficient 4200kw YLW Biomass Thermal Oil Boiler. Designed for reliable and sustainable heat generation, this boiler utilizes biomass as its fuel source. With its high capacity of 4200kw, it provides ample thermal energy for various industrial applications. The YLW Biomass Thermal Oil Boiler incorporates a steam generator, allowing for the production of both thermal oil and steam. Trust this advanced boiler to deliver consistent and clean heat, enhancing productivity and reducing environmental impact. Experience efficient and eco-friendly heating solutions for your industrial processes.

SZL series high efficiency biomass boiler, inner water tube structure, 2ton 4ton 6ton 8ton 10ton 12ton 15ton 20ton 30ton biomass waste fired boiler, high tech deign double drums & water membrane wall deign.
Yuanda biomass boiler can burn solid waste, biomass pellets, ricehusk, palm shells, palm kernel shells fibre, coconuts shells, peanute shells, sawdust, wood waste, wood pellets, wood log, woodchips, agro forest waste…

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Yuanda DZL series chain grate stoker boiler & Steam Boiler & Hot Water Boiler.

YLW Horizontal wood/biomass thermal oil boiler.
Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

Thermal oil boiler could instead steam boiler for industrial production, to improve productivity. Yuanda thermal oil boilers are widely used for petroleum chemical industry, Oleochemical industry, Synthetic fiber industry, textiel printing and dyeing industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food indstry, electrical equipment industry, coking industry, etc.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

The DZL/DZH new water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and famous Harbin institute of Technology and director of Beijing Institute of Light Boiler.
1.Boiler model:DZL/DZH
2.Boiler capacity:1-20ton/h
3.Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature:184 °c,194°c, 204°c,226°c(As long as below 226°c,we can do it)
5.Fuel:coal,biomass
6.Structure:horizontal water-fire tube, single drum
7.Type:There are two types.One is DZL chain grate stoker automatic feeding fuel and removing dregs type. Another is DZH hand operated moving grate type which needs labour to feed fuel and remove the dregs.
8.Application:Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

Optimize your heat generation in the furniture industry with the Automatic Biomass Thermal Oil Heater. Specifically designed for the furniture industry, this thermal oil heater utilizes biomass as a sustainable and renewable fuel source. With its automatic operation, it ensures convenient and hassle-free heat production. The thermal oil system provides consistent and efficient heat transfer for various furniture manufacturing processes. Trust the Automatic Biomass Thermal Oil Heater to deliver reliable and clean heat, improving productivity and reducing environmental impact in the furniture industry. Experience efficient and eco-friendly heating solutions tailored to your furniture manufacturing needs.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

SZL Series Water Tube Boiler Double Drums Chain Grate Coal Fired Boiler For Production Heat & Power

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Industrial biomass hot air generator furnace, use for drying clay.
