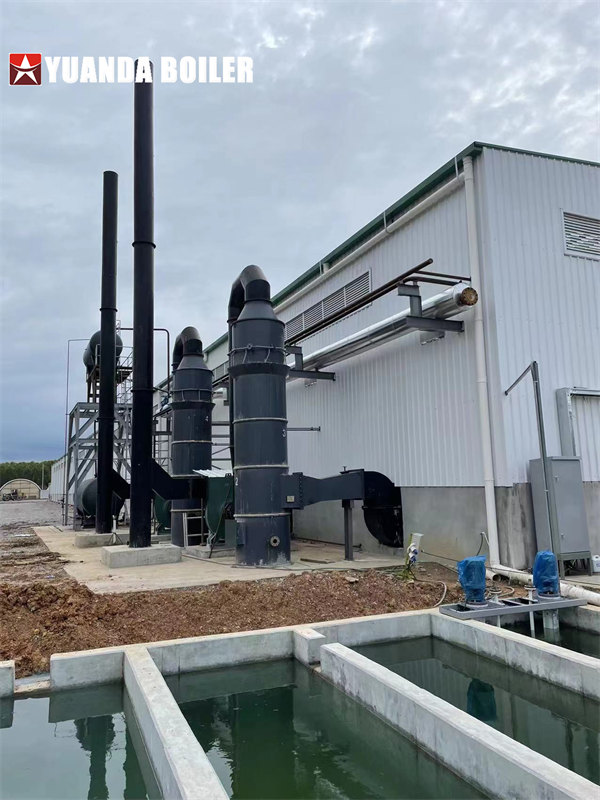

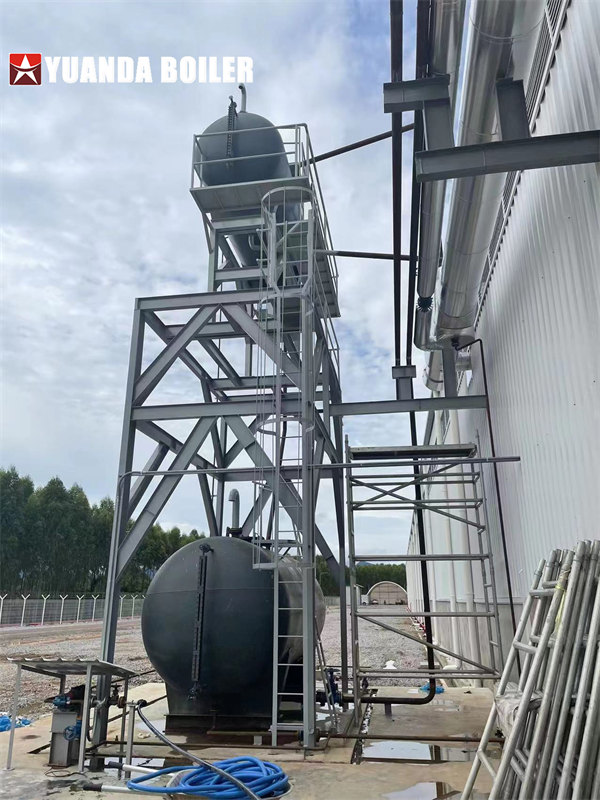

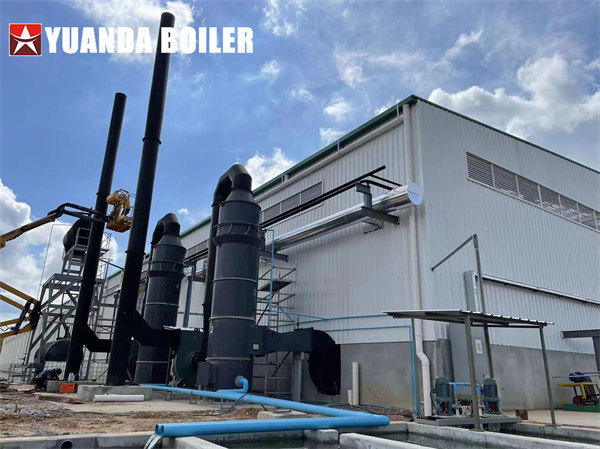

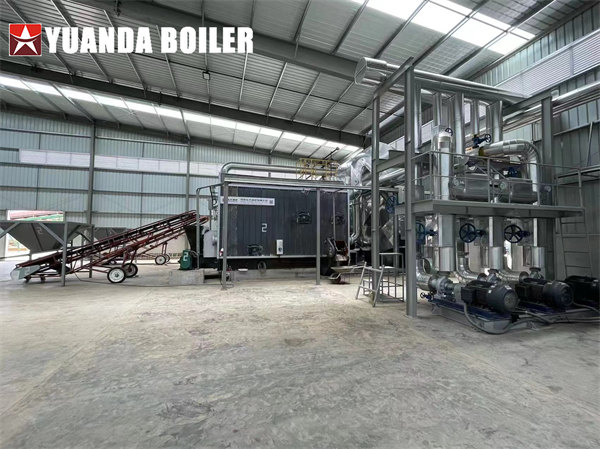

YLW 2900kw Biomass Thermal Oil Boiler For Plywood Plant Laos

Gas/Diesel Thermal Oil Boiler
YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

Thermal oil heater by gas, diesel, lpg.
YYQW horizontal thermal oil heater boiler, high efficiency hot oil heating system.
1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Optimize your asphalt plant operations with the efficient and reliable Thermal Oil Heater. Specifically designed for asphalt plant use, this heater utilizes thermal oil as the heat transfer medium. With a capacity of 1400kw, it provides consistent and precise heat for asphalt production and processing. The Thermal Oil Heater ensures efficient and reliable heat transfer, enabling optimal asphalt quality and production efficiency. Trust this advanced heater to deliver clean and efficient heat, enhancing productivity and meeting the demanding requirements of asphalt plant operations. Experience reliable and high-quality heat transfer for your asphalt production needs.

Optimize your heat transfer capabilities in the food factory with the 700kw Thermal Oil Heater Boiler. Specifically designed for the food industry, this boiler provides efficient and reliable heat transfer using thermal oil as the medium. With its 700kw capacity, it meets the heat requirements of food processing and production. The thermal oil system ensures precise and consistent temperature control for various food manufacturing processes. Trust the 700kw Thermal Oil Heater Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the food industry. Experience reliable and high-quality heat transfer for your food factory operations.

YY(Q)W series of organic heat carrier boiler is quick-fitting forced circulation fuel oil(gas)boiler,this series boiler’s is compact structure,the heating area is constituted by closed coil pipes from inside(or internal and external),inside coil pipes are the radition heating surface.Fuel in inside theinner coil pipe form the combustion chamber,the fuel burn inside and release heat and absorb most of the quantity of heat after radiation heating,high temperature flue gas transfer heat through convection heating surface,then go into the air preheater (or waste heat boiler) to heat the required air(or water) ,the low temperature flue gas from boiler discharge directly to the chimney then to the atmosphere.

Thermal oil heater advantages
1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

YYQL series Vertical gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.Quick-setting high strength refractory material,have strong power of solidification and long using cycle.it does not shake off.
2.Integrated and wiring device,more convenience for the wire connection,make overhaul more simply,elegant appearance after installation
3.Double-deck aluminum silicate for heat preservation,the surface temperature of the boiler is no higher than 40℃,energy conservation and efficient
4.Design of angular and smooth surface of outsourcing panel,prevent the injury accident when checking the equipment
5.The outer oil collecting box is designed to prevent the slow rate of grease from carbonizing avoid air leakage
6.Double seal groove design, secondary prevent air leakage design, tight seal, avoid air leakage
7.Unique coil tube repair and integration process, the disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
8.Boiler multistage energy saving device design (the tail can set air preheater, wasted heat boiler,economizer),low smoke exhaust temperature, improve boiler efficiency 10%

Advantages
1.Double seal groove design
Secondary prevent air leakage design, tight seal, avoid air leakage
2.Unique tail heating surface design
Boiler rolling chamber wet back structure,small boiler heat loss,avoid overheat caused by over-burning of side panels, and increase thermal efficiency by 2-3%.
3.Unique coil tube repair and integration process
The disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
4.Boiler multistage energy saving device design
The tail can set air preheater, wasted heat boiler,economizer,low smoke exhaust temperature, improve boiler efficiency 10%
5.Design of angular and smooth surface of outsourcing panel
Prevent the injury accident when checking the equipment
6.Triple coil,three-pass smoke,fire wrapped in oil structure design,
Large radiant heating furnace,high thermal efficiency of the boiler,prevent the boiler shell from firing deformation at the high temperature
7.Research PCL control board independently,strong compatibility
PLC intelligent touch screen equipment,10-inch touch screen,fool-type operation,safe and reliable,automatic ignition/flame-out/fire switch,high fired gas,low pressure protection,gas leakage protection
8.Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable
9.60years’precipitation,mature production technicians team,good matching among the set of equipment,technology skilled,stable quality
10.material supplied by large international factory,manufactured by Anyang Iron Steel and Tianjin Seamless Steel Pipe plant,ensure the quality

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

Optimize your textile dyeing processes with the efficient and reliable 2100kw Thermic Fluid Heater. Specifically designed for textile dyeing applications, this heater provides efficient heat transfer using thermic fluid as the medium. With its 2100kw capacity, it meets the heat requirements of textile dyeing processes, ensuring precise and consistent temperature control. The Thermic Fluid Heater enhances productivity and efficiency in textile dyeing, delivering clean and efficient heat transfer. Trust this advanced heater to meet the demanding requirements of textile dyeing, ensuring high-quality results. Experience reliable and high-quality heat transfer for your textile dyeing operations.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YY(Q)W series adopting high quality corrugated coil to carry the heat conduction oil, increase the heat transfer area, reasonable gap between coil tubes to fit the hot expansion and cold contraction . Average coil tubes’ working life more than 17years.

Optimize your heat generation in the furniture industry with the Automatic Biomass Thermal Oil Heater. Specifically designed for the furniture industry, this thermal oil heater utilizes biomass as a sustainable and renewable fuel source. With its automatic operation, it ensures convenient and hassle-free heat production. The thermal oil system provides consistent and efficient heat transfer for various furniture manufacturing processes. Trust the Automatic Biomass Thermal Oil Heater to deliver reliable and clean heat, improving productivity and reducing environmental impact in the furniture industry. Experience efficient and eco-friendly heating solutions tailored to your furniture manufacturing needs.

YY(Q)W series gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

Gas/Diesel Thermal Oil Boiler
YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.Quick-setting high strength refractory material,have strong power of solidification and long using cycle.it does not shake off.
2.Integrated and wiring device,more convenience for the wire connection,make overhaul more simply,elegant appearance after installation
3.Double-deck aluminum silicate for heat preservation,the surface temperature of the boiler is no higher than 40℃,energy conservation and efficient
4.Design of angular and smooth surface of outsourcing panel,prevent the injury accident when checking the equipment
5.The outer oil collecting box is designed to prevent the slow rate of grease from carbonizing avoid air leakage
6.Double seal groove design, secondary prevent air leakage design, tight seal, avoid air leakage
7.Unique coil tube repair and integration process, the disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
8.Boiler multistage energy saving device design (the tail can set air preheater, wasted heat boiler,economizer),low smoke exhaust temperature, improve boiler efficiency 10%

Advantages
1.Double seal groove design
Secondary prevent air leakage design, tight seal, avoid air leakage
2.Unique tail heating surface design
Boiler rolling chamber wet back structure,small boiler heat loss,avoid overheat caused by over-burning of side panels, and increase thermal efficiency by 2-3%.
3.Unique coil tube repair and integration process
The disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
4.Boiler multistage energy saving device design
The tail can set air preheater, wasted heat boiler,economizer,low smoke exhaust temperature, improve boiler efficiency 10%
5.Design of angular and smooth surface of outsourcing panel
Prevent the injury accident when checking the equipment
6.Triple coil,three-pass smoke,fire wrapped in oil structure design,
Large radiant heating furnace,high thermal efficiency of the boiler,prevent the boiler shell from firing deformation at the high temperature
7.Research PCL control board independently,strong compatibility
PLC intelligent touch screen equipment,10-inch touch screen,fool-type operation,safe and reliable,automatic ignition/flame-out/fire switch,high fired gas,low pressure protection,gas leakage protection
8.Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable
9.60years’precipitation,mature production technicians team,good matching among the set of equipment,technology skilled,stable quality
10.material supplied by large international factory,manufactured by Anyang Iron Steel and Tianjin Seamless Steel Pipe plant,ensure the quality

YY(Q)W series adopting high quality corrugated coil to carry the heat conduction oil, increase the heat transfer area, reasonable gap between coil tubes to fit the hot expansion and cold contraction . Average coil tubes’ working life more than 17years.

YLW series thermal oil heater is horizontal type boiler with coal or biomass as the fuel. The combustion equipment is chain grate. Coal or biomass thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier.

YLW coal fired thermal oil boiler is a kind of new type heating equipment, the fuel could be coal, biomass or flue gas, the heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. It is an safe and low energy consumption boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The boiler medium is working under liquid state, so it is safe and reliable.

YY(Q)W series gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

YY(Q)W series hot oil boiler is horizontal type boiler with oil or gas as the fuel. Thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier, through the circulating pump to transfer the heat to other required heating equipments

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.High operating temperatures can be achieved under very atmospheric conditions. Greatly reduce operating pressure and safety requirements of the high-temperature heating system, improve the reliability of the system and equipment;
2. Satisfy all different temperature heating and cooling process requirements in a wider temperature range, besides, it can achieve the high-temperature heating and low-temperature cooling process requirements by using same heat-conducting oil in same system and same time. Reduce the complexity of system and operation;
3. The water treatment system and equipment are omitted, improve system thermal efficiency, reduce maintenance workload of equipment and pipelines. So that we can reduce the initial investment and operating costs of the heating system;
4. In the case of accidental system leakage, heat-conducting oil and open flame may burn. This is a problem need to pay attention compared to the water vapor system. However, promise there is no leakage, operating under low pressure, its operation safety is higher than that of water and steam systems.

Thermal oil boiler(also called organic heat carrier furnaces) generally use coal, oil, and gas as fuels, take heat-conducting oils as the medium, force liquid to circulate in the liquid medium by using oil circulation pump, transferring heat energy to the heating equipment, then heat-conducting oil return to furnace and reheating.Boiler can reach high temperature at low pressure,control medium operating in high-precision.

Elevate your heat transfer capabilities in the oil and gas industry with the Portable 2100kw Heater Boiler. Specifically designed for oil and gas industry applications, this portable boiler provides efficient and reliable heat transfer. With its 2100kw capacity, it meets the heat requirements of various oil and gas processes, ensuring precise and consistent temperature control. The portable design allows for easy transportation and installation, making it suitable for temporary or remote locations. Trust the Portable 2100kw Heater Boiler to deliver clean and efficient heat transfer, enhancing productivity and meeting the specific needs of the oil and gas industry. Experience reliable and high-quality heating solutions for your oil and gas operations.

1. High Quality Manufactured Thermal Oil Boiler With ASME Certified, Canada customer use thermal oil heater boiler for sugar making equipment, ciculating high temperature thermal oil through the equipment for indirect heating, gas powered thermal oil boiler at high thermal efficiency, qualification with ISO ASME certificates.
2. Special designed Skid-mounted thermal oil boiler, available to transfer to somewhere for usage. “Plug and Play” Thermal Oil Boiler.

900kw horizontal electric thermal oil heater boiler for plastics industry factory in peru.

YQ(Y)W series gas-fired/oil-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.

This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).

Elevate your heat transfer capabilities with the 1400kw Gas Fired Hot Oil Boiler YYQW Horizontal Boiler. Specifically designed for efficient heat transfer, this horizontal boiler utilizes gas as its fuel source. With a capacity of 1400kw, it provides reliable and consistent heat for various industrial applications. The YYQW design ensures optimal heat transfer efficiency, making it suitable for a wide range of heating processes. Trust the Gas Fired Hot Oil Boiler YYQW Horizontal Boiler to deliver clean and efficient heat, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with this advanced horizontal boiler solution.

Elevate your heat transfer capabilities with the 1400kw Gas Fired Hot Oil Boiler YYQW Horizontal Boiler. Specifically designed for efficient heat transfer, this horizontal boiler utilizes gas as its fuel source. With a capacity of 1400kw, it provides reliable and consistent heat for various industrial applications. The YYQW design ensures optimal heat transfer efficiency, making it suitable for a wide range of heating processes. Trust the Gas Fired Hot Oil Boiler YYQW Horizontal Boiler to deliver clean and efficient heat, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with this advanced horizontal boiler solution.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YYQW series diesel gas fired thermal oil heater boiler, horizontal three pass three coils thermal oil heating system. 7000kw 6million kcal thermal oil boiler for oil gas field.
