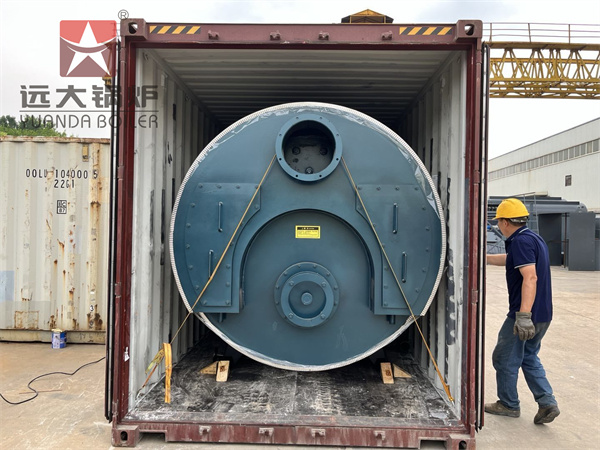

China Fire Tube Boiler 3Ton Steam Boiler Deliver to Bolivia

YQ(Y)W series gas-fired/oil-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.

This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).

YYQL series Vertical gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

Upgrade your steam generation capabilities with the efficient and reliable SZS Series Gas Fired Boiler. This water tube boiler is designed to provide optimal performance for a wide range of applications. With its gas-fired operation, it ensures cost-effectiveness and reduced environmental impact. The 25Tph capacity meets the demands of various industrial processes. The water tube design maximizes heat transfer efficiency, ensuring efficient and reliable steam generation. Trust the SZS Series Gas Fired Boiler to deliver consistent and clean steam, enhancing productivity and efficiency in your operations. Experience reliable and high-quality steam with this advanced water tube boiler solution.

Yuanda WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology, equipped with international first-level brand burners and valve groups, and independently developed high-matching PLC control system to realize muitiple linkages. The lock protection function protects the equipment running safely.

700KW 600000kcal Thermal Oil Heater Boiler

Enhance your heat transfer capabilities with the 600000kcal Thermic Fluid Heater Gas Fired Heaters. Designed for efficient heat transfer, these gas-fired heaters utilize thermic fluid as the heat transfer medium. With a capacity of 600000kcal, they provide reliable and consistent heat for various industrial applications. The gas-fired operation ensures cost-effectiveness and reduced environmental impact. Trust the Thermic Fluid Heater Gas Fired Heaters to deliver clean and efficient heat transfer, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with these advanced gas-fired heaters.

Thermal oil heater by gas, diesel, lpg.
YYQW horizontal thermal oil heater boiler, high efficiency hot oil heating system.
1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

Three pass fire tube boiler, packaged steam boiler 15ton high efficiency low cost steam boiler.

YY(Q)W series of organic heat carrier boiler is quick-fitting forced circulation fuel oil(gas)boiler,this series boiler’s is compact structure,the heating area is constituted by closed coil pipes from inside(or internal and external),inside coil pipes are the radition heating surface.Fuel in inside theinner coil pipe form the combustion chamber,the fuel burn inside and release heat and absorb most of the quantity of heat after radiation heating,high temperature flue gas transfer heat through convection heating surface,then go into the air preheater (or waste heat boiler) to heat the required air(or water) ,the low temperature flue gas from boiler discharge directly to the chimney then to the atmosphere.

Thermal oil heater advantages
1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

Elevate your heat transfer capabilities in the chemical industry with the 1400kw Hot Oil Boiler. Specifically designed for the chemical industry, this boiler provides efficient and reliable heat transfer using hot oil as the medium. With its 1400kw capacity, it meets the heat requirements of various chemical processes and production. The hot oil system ensures precise and consistent temperature control, making it suitable for a wide range of chemical manufacturing processes. Trust the 1400kw Hot Oil Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the chemical industry. Experience reliable and high-quality heat transfer for your chemical industry operations.

Industrial steam boiler in thailand, gas fired boiler in thailand, complete boiler system services for industries use.

Enhance the efficiency of your chicken processing factory in Burundi with the LHS 300kg Gas Steam Boiler. Designed to meet the unique demands of poultry processing, this high-performance boiler delivers reliable and consistent steam supply. With its gas-powered operation, it ensures cost-effectiveness and reduced environmental impact. The compact design and robust construction make it ideal for limited space installations. Trust the LHS 300kg Gas Steam Boiler to optimize your chicken processing operations, improving productivity and ensuring the highest quality output.

China popular gas oil fired boiler, it’s horizontal three pass design boiler, fully automatic operation, has high thermal efficiency help saving consumption cost. Suitable thermal capacity 0.5ton-20ton, 0.35mw-14mw. Available fuel: gas diesel lpg heavy-oil dual-fuel exhaust gas.

YY(Q)W series hot oil boiler is horizontal type boiler with oil or gas as the fuel. Thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier, through the circulating pump to transfer the heat to other required heating equipments

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.High operating temperatures can be achieved under very atmospheric conditions. Greatly reduce operating pressure and safety requirements of the high-temperature heating system, improve the reliability of the system and equipment;
2. Satisfy all different temperature heating and cooling process requirements in a wider temperature range, besides, it can achieve the high-temperature heating and low-temperature cooling process requirements by using same heat-conducting oil in same system and same time. Reduce the complexity of system and operation;
3. The water treatment system and equipment are omitted, improve system thermal efficiency, reduce maintenance workload of equipment and pipelines. So that we can reduce the initial investment and operating costs of the heating system;
4. In the case of accidental system leakage, heat-conducting oil and open flame may burn. This is a problem need to pay attention compared to the water vapor system. However, promise there is no leakage, operating under low pressure, its operation safety is higher than that of water and steam systems.

Introducing our cutting-edge portable diesel boiler containerized steam boiler, specially designed for the oilfield industry. With advanced technology and unrivaled efficiency, our solution provides reliable and versatile heating for oilfield equipment. Experience rapid steam production and on-site power generation with our compact and easily transportable system. Benefit from high-pressure steam generation and customizable output, ensuring optimal performance for your oilfield operations. Our fuel-efficient diesel burner and durable construction make it perfect for rugged environments. Discover the ultimate heating solution for the oilfield industry with our portable diesel boiler containerized steam boiler.

WNS series gas oil steam fire tube boiler is a kind of safe and high efficiency heating equipment with full automatic control system. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.

Experience efficient and reliable hot water heating with the Vertical Gas Hot Water Heater Boiler. Designed specifically for the oil and gas industry, this 700kw central heating boiler delivers powerful performance. With its gas-powered operation, it ensures cost-effectiveness and reduced environmental impact. The vertical design optimizes space utilization, making it ideal for various industrial settings. Trust the Vertical Gas Hot Water Heater Boiler to provide consistent hot water supply, enhancing productivity and comfort within your oil and gas operations.

Elevate your heat transfer capabilities with the 1400kw Gas Fired Hot Oil Boiler YYQW Horizontal Boiler. Specifically designed for efficient heat transfer, this horizontal boiler utilizes gas as its fuel source. With a capacity of 1400kw, it provides reliable and consistent heat for various industrial applications. The YYQW design ensures optimal heat transfer efficiency, making it suitable for a wide range of heating processes. Trust the Gas Fired Hot Oil Boiler YYQW Horizontal Boiler to deliver clean and efficient heat, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with this advanced horizontal boiler solution.

Palm oil mill use steam boiler, 2ton diesel oil fired steam boiler.

15Ton automatic gas burner boiler, generating 15000kg/hr saturated steam, WNS series gas fired steam boiler with high thermal efficiency, energy saving gas steam boiler, low gas consumption boiler.

industrial gas oil fired hot water boiler, widely used for central heating in hotel, greenhouse, school, warehouse, buildings. High thermal efficiency hot water boiler, offer boiler solutions for heating water usage.

Horizontal 500kg gas steam boiler, automatic gas burner boiler, fire tube boiler 500kg.

Natural gas steam boiler, simple structure three pass boiler, wet back design. High Efficiency industrial gas boiler, widely used for all industrial productions.

Elegant design with low surface temperature and low heat dissipation

Optimize your heat transfer capabilities in the food factory with the 700kw Thermal Oil Heater Boiler. Specifically designed for the food industry, this boiler provides efficient and reliable heat transfer using thermal oil as the medium. With its 700kw capacity, it meets the heat requirements of food processing and production. The thermal oil system ensures precise and consistent temperature control for various food manufacturing processes. Trust the 700kw Thermal Oil Heater Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the food industry. Experience reliable and high-quality heat transfer for your food factory operations.

WNS series gas oil steam fire tube boiler is a kind of safe and high efficiency heating equipment with full automatic control system. This series oil gas fired boiler is horizontal type fast assembly fire tube boiler with three pass structure, it has compact structure, small volume, strong load adaptability and low water quality requirement. This boiler adopts wet wet back structure, it can adapt to the high temperature, has a good sealing, increase the radiation heat transfer area and improve the heat transfer efficiency.

Elevate your bitumen plant operations with the efficient and reliable Gas Fired Thermal Oil Boiler. Specifically designed for bitumen plants, this boiler utilizes gas as its fuel source to provide precise and consistent heat. With a capacity of 120,0000Kcal, it ensures optimal heat transfer for bitumen production and processing. The Gas Fired Thermal Oil Boiler enhances productivity and efficiency in bitumen plants, delivering clean and efficient heat. Trust this advanced boiler to meet the demanding requirements of bitumen production, ensuring high-quality output. Experience reliable and high-quality heat transfer for your bitumen plant operations.

Industrial gas fired steam boiler 500kg, automatic high efficiency gas fired boiler, environmental friendly.
Qualified by ASME certificate, design, manufacturing.

Greenhouse central heating boiler, 100kw-35000kw hot water boiler for hot water system. Industrial water heating boiler, widely use for hotel, school, greenhouse, warehouse, buildings.
