Chinese Yuanda Travelling Grate Biomass Wood Boiler 4Ton/Hour Steam Boiler

dzl biomass steam boiler,chain grate biomass boiler 4ton,china biomass fired boiler

Industrial biomass pellet boiler, small scale hot water boiler 70kw 150kw 200kw 300kw 350kw 500kw 700kw 1000kw 1400kw.

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

DZL boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. The combustion traveling chain grate can feed the fuels automatically, with different rolling speed can adapt different fuels’ burning speed. Also, the small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

WNS fire tube biomass hot water / steam boiler with biomass burner, automatic combustion low consumption cost boiler.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

DZH series Manual feeding Travelling Grate Wood Biomass Boiler 1ton 2ton 3ton 4ton 6ton 8ton.

Elevate the central heating system in your villages project with the powerful 4200kw and 7000kw Biomass Hot Water Boiler. Designed specifically for central heating applications, this boiler utilizes biomass as a sustainable and renewable energy source. With its high capacity, it ensures efficient and reliable hot water supply for large-scale projects. The biomass fuel option reduces carbon emissions and promotes eco-friendly heating solutions. Trust the 4200kw and 7000kw Biomass Hot Water Boiler to deliver consistent and environmentally conscious heating, improving comfort and sustainability in your villages project.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

Enhance the sustainability of your pharmaceutical industry operations with the 10tph Biomass Burner Boiler. Designed specifically for the pharmaceutical industry, this biomass burner boiler utilizes renewable biomass fuel to provide efficient heat and steam generation. With its high capacity, it ensures reliable and consistent performance for your production processes. The biomass burner reduces carbon emissions and promotes eco-friendly energy solutions. Trust the 10tph Biomass Burner Boiler to deliver sustainable and cost-effective heating and steam supply, meeting the specific needs of the pharmaceutical industry and contributing to a greener future.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

Industrial water tube coal fired steam boiler 40ton/hour, automatic chain grate coal boiler, high efficiency steam boiler for flour plant.

China industrial biomass wood fired boiler, with reciprocating grate stoker. 1ton-75ton biomass fired boiler for all industries production heat and power generation.

Boiler design advantages
1. Adopting automatic screw feeding, with reasonable second air technology and half gasification structure
helping fuel combust completely, the thermal efficiency can reach more than 90%. Stable flame, producing
steam cautiously.
2. Primordial dust emissions density is low:The volume of the coal biomass-fired steam boiler is large and there is a dust
separation device, so the primordial dust emissions density will be controlled much lower than the standard allowed.
3. Control system: Installing microcomputer to operate with one-button, people just set the process, and it can
work automatically during the operating time. Once any abnormal situation to happen, stopping automatically
with sound-light alarm, and pointing to the failure code, so it saves time to maintain.
4. Our protected device is safe and reliable. Selecting superior pressure controller, safety valve, low water alarm,
overpressure alarm, over-temperature alarm, in order to make boilers operate safely.
5. Heating fast:There are many spiral gas tubes in the boiler and almost half of the coal fired steam boiler shell
can be heated, so the temperature can up soon.
6. It is simple to clean slag only after burning completing.

SZL series high efficiency biomass boiler, inner water tube structure, 2ton 4ton 6ton 8ton 10ton 12ton 15ton 20ton 30ton biomass waste fired boiler, high tech deign double drums & water membrane wall deign.
Yuanda biomass boiler can burn solid waste, biomass pellets, ricehusk, palm shells, palm kernel shells fibre, coconuts shells, peanute shells, sawdust, wood waste, wood pellets, wood log, woodchips, agro forest waste…

Better fuel adaptability
Comparing with DZL boiler, DZH boiler has better adaptability on fuels, it can fire coal, rice husk, nut shell, sawdust, waste wood pieces, also can fire wood logs, straws. But, DZH boiler can only support manual fuel feeding, and manual ash remove.

Yuanda DZL series chain grate stoker boiler & Steam Boiler & Hot Water Boiler.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

Power up your industrial processes with the Industrial Biomass Burner Boiler. This high-capacity steam boiler is specifically designed for industries, offering reliable and efficient steam generation. With its biomass burner, it utilizes renewable biomass fuel, reducing environmental impact and promoting sustainability. With a 10ton/hr capacity, it meets the demands of large-scale industrial operations. Trust the Industrial Biomass Burner Boiler to deliver consistent and clean steam, enhancing productivity and efficiency in a wide range of industries. Experience sustainable energy solutions for your industrial needs.

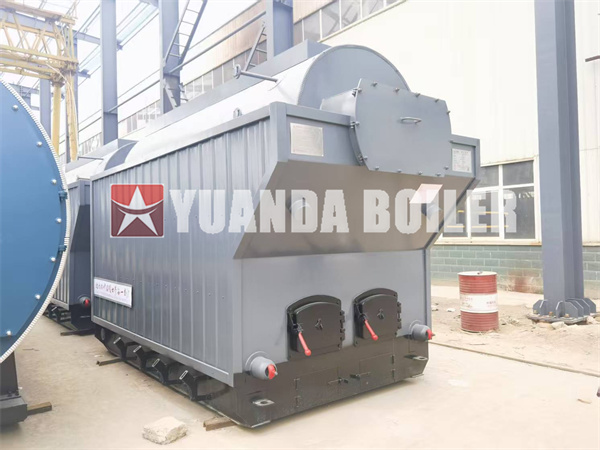

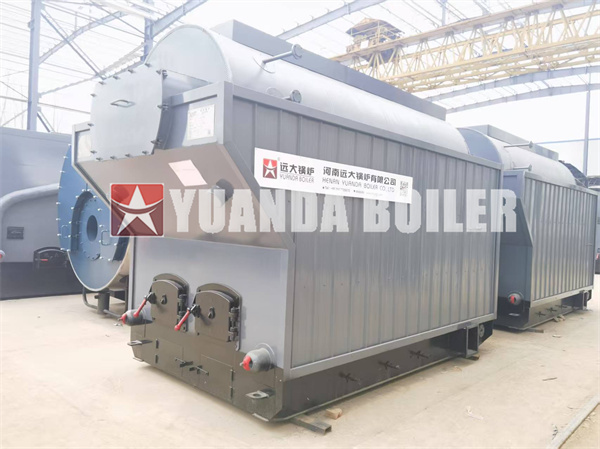

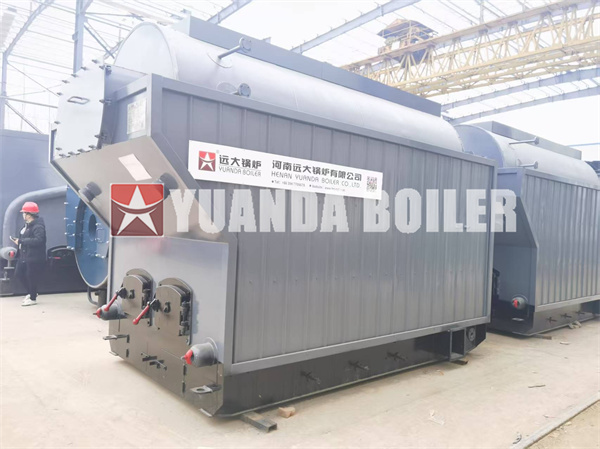

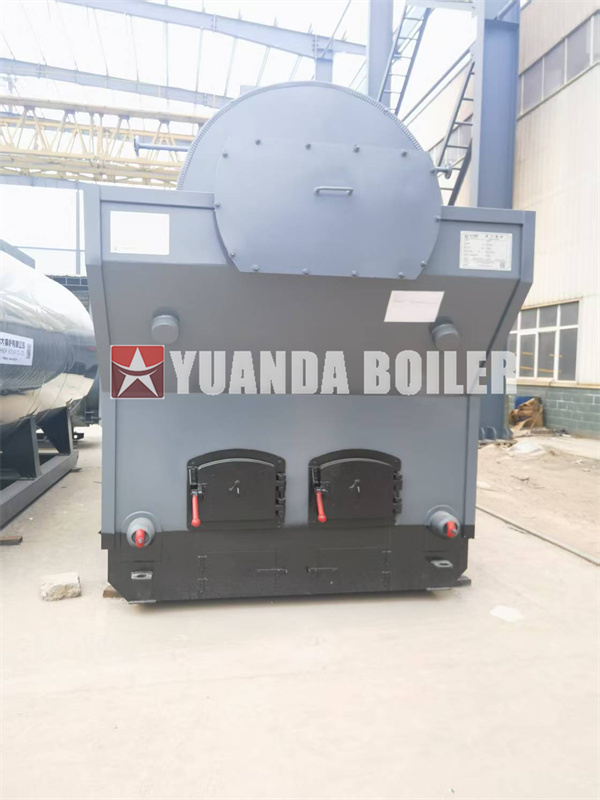

DZH series wood biomass coal fired steam boiler 4ton/hour travelling grate boiler, single drum water-tube fire-tube boiler.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

SZS 8ton water tube furnace boiler, with biomass burner. Industrial fire tube biomass fuel fired boiler, automatic type biomass burner boiler.

Thermal oil boiler(also called organic heat carrier furnaces) generally use coal, oil, and gas as fuels, take heat-conducting oils as the medium, force liquid to circulate in the liquid medium by using oil circulation pump, transferring heat energy to the heating equipment, then heat-conducting oil return to furnace and reheating.Boiler can reach high temperature at low pressure,control medium operating in high-precision.

8ton industrial biomass fired steam boiler with reciprocating grate combustion stoker. SZW series water tube biomass boiler 4ton 6ton 8ton 10ton 15ton 20ton.

YGL vertical wood biomass thermal oil heater boiler, manual feeding type, low consumption cost thermal oil heater boiler for plywood industry indonesia.

SZL water tube biomass boiler, is double drums offset furnace structure (“D” type boiler or “A” type boiler). Its has advantages of high technology, environmental and energy saving. Thermal capacity in 2ton-50ton.

DZL Chain Grate Boiler, Burn coal wood biomass pellet. 1ton 2ton 4ton 6ton 8ton 10ton solid fuel steam boiler. Automatic feeding biomass coal boiler.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.
