Russia Project Industrial Coal Boiler 1000kg 1ton Steam Boiler Delivery

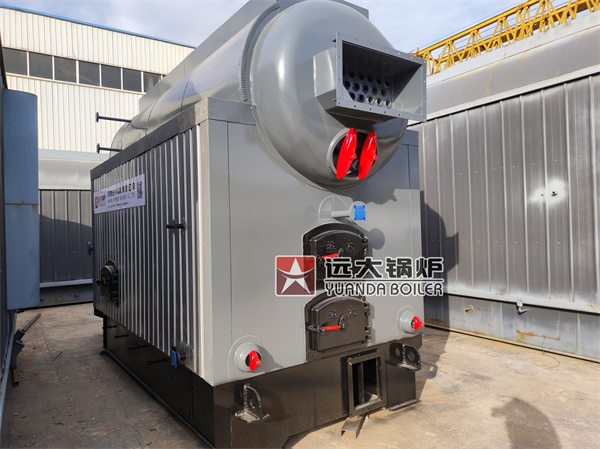

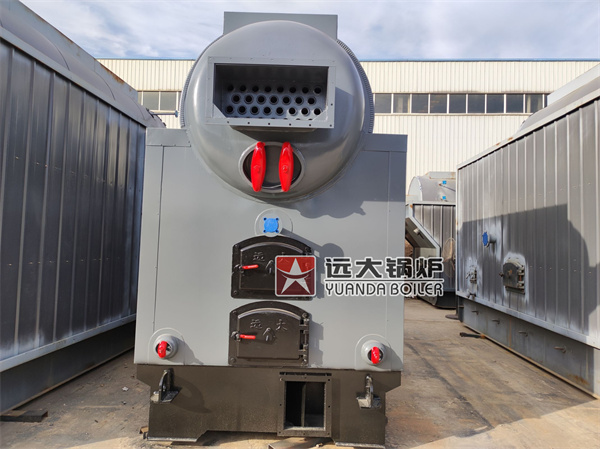

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

China DZL Series Automatic Chain Grate Stoker Boiler, Steam/Hot Water Boiler. High Efficiency Low Cost Coal Fired Boiler.

Features of DZL coal boiler
1. With the novel furnace structure, the boiler can tackle the deformation of bulge caused by directly heating the bottom of the drum.
2. The boiler can avoid the crackles happening in the plates.
3. the drum adopt single pass threaded pipe, so it can not only strengthen the heat transfer effect but also has the function of self-cleaning gray at the same time
4. Novel arch design makes coal combustion and coal adaptability strong.
5. Grate side sealing structure avoids the shortcomings of uneven ventilation and burning out side sealing.
6. Separate adjustable wind chamber under the fire grate is equipped and wind is fed from two sides. It adopts new type crack screw wind adjustment structure so that the wind adjustment and ventilation cross section proportion is 100%. Thus, it is easy to adjust and the wind is distributed symmetrically.

Industrial water tube coal fired steam boiler 40ton/hour, automatic chain grate coal boiler, high efficiency steam boiler for flour plant.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

Industrial Coal Fired Hot Water Boiler 0.35mw-35mw, automatic feeding chain grate coal boiler.

China DZL Series Automatic Chain Grate Stoker Boiler, Steam/Hot Water Boiler. High Efficiency Low Cost Coal Fired Boiler.

Industrial water tube coal fired steam boiler 40ton/hour, automatic chain grate coal boiler, high efficiency steam boiler for flour plant.

Introduction of SZL series boiler
SZL series product has a double-drum offset hearth(D-type layout), great apply for biomass fuel, environmental protection and energy conservation,and is a key promoted product of national energy-saving projects. Honor of this boiler:
1.National Scientific and Technological Progress Second Prize
2.Singapore New Product Expo Golden Lion Award

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

The DZL/DZH new water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and famous Harbin institute of Technology and director of Beijing Institute of Light Boiler.
Boiler advantages
1.The output power remain constant
2.The boiler is heating up quickly and have high heat efficiency
3.Low original dust concentration,environmental protection and energy conservation
4.High quality of steam
5.Strong water quality adaptability
6.Small size appearance, low investment in boiler room
7.Low running cost, safe and reliable (safety and reliability)
8.Short installation time, low installation cost

General Introduction
1.Automatic feeding, automatic ash remove function.
2.Long life time, more than 10 years.
3.62 years experience for manufacturing, mature technology.
4.Big furnace and heating area, advanced design.
5.Full automatic control, Protection devices for overheating, over pressure, lacking water, leak detection, flame out
6.Enough steam output, less heat dissipation, high thermal efficiency.lowest fuel consumption, lower power consumption.
7.with 95% high efficiency dust collector, more Eco-friendly.
8.The featured structure of the boiler: Threaded pipe, Airfoil flue , Convex tube plate , The backwater towards high temperature tube plate, Simple loop circuit, Dust separated chamber, big furnace, compact structure so on.

The DZL Coal Steam Boiler can be used for the following business: Chemical plant, Textile plant, Food & Beverage,Garment manufacturing, Paper Plant,Printing and dyeing mill, Cement Plant, Fertilizer plant, Feed mills, Rubber factory, Schools, Hotel, Bath Center, Swimming Pool, Hospital, Hotel, etc.
The most important thing is that our boilers are all tailor-made.They are designed all depending on your business,including on the fuel,capacity,pressure and so on you need.

DZL series chain grate coal hot water boiler 0.7mw 1.4mw 2.8mw 3.5mw 4.2mw 5.6mw

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Industrial Coal Heating Steam/Hot Water Boiler 6000kg 4.2mw Thermal Capacity, Automatic Chain Grate Stoker Boiler, High Efficiency Low Cost Coal Fired Boiler.

2000kg 2ton manual feeding coal biomass fired steam boiler in bangladesh textile garments factory

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

The DZL Coal Steam Boiler can be used for the following business: Chemical plant, Textile plant, Food & Beverage,Garment manufacturing, Paper Plant,Printing and dyeing mill, Cement Plant, Fertilizer plant, Feed mills, Rubber factory, Schools, Hotel, Bath Center, Swimming Pool, Hospital, Hotel, etc.
The most important thing is that our boilers are all tailor-made.They are designed all depending on your business,including on the fuel,capacity,pressure and so on you need.

Automatic Coal Fired Steam Boiler 1ton-75ton/hour. China water tube double drums A type layout steam boiler, coal fired water tube boiler 40ton per hour Steam Boiler Made in China.

Yuanda DZL series chain grate stoker boiler & Steam Boiler & Hot Water Boiler.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

DZL series coal fired horizontal type packaged boiler is single drum longitudinal type with natural circulation, the main components are installed within the factory. After installing the large parts, just need to setup pipeline, instrumentation valves, flue duct, and slag extractor, etc, connect water and electricity power, and incorporated into the heating network system, then the boiler could operate.
This boiler is consisted of boiler drum, furnace and convection pass, which are made up of two sides water-cooled tubes, the front smoke box is consisted of four casing pipes and front tube plate, the boiler drum is equipped with thread convection tubes. Chain grate is under the water cooling system, to support the whole boiler body, to form a packaged boiler.

DZH series manual coal/wood/biomass fired boiler, travelling grate boiler. Inner water-tubes & fire-tubes design.

SZL Series water tube biomass boiler, is double drums offset furnace structure (“D” type), with Chain Grate Stoker. Boiler with advantages of high technology, environmental and energy saving.

YLW series thermal oil heater is horizontal type boiler with coal or biomass as the fuel. The combustion equipment is chain grate. Coal or biomass thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier.

General introduction
SZL series is a horizontal water-tube large stove biomass boiler, With automatic fuel feeding and chain grate, boiler work efficiently and safety running.
The furnace structure (D) is adopted with double drum, high technical content and energy saving and environmental protection. The series products won the second prize of national science and technology progress, won the golden lion of Singapore new product fair, are the national energy-saving engineering key promotion product.

Industrial coal fired steam boiler 1000kg/hour 1ton/hour for industrial production line, for drying heating process.
