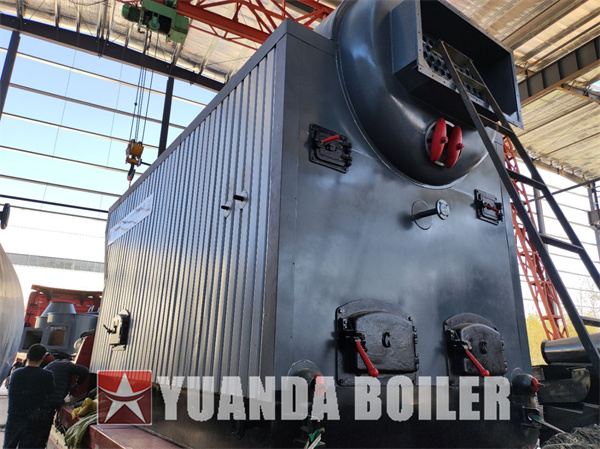

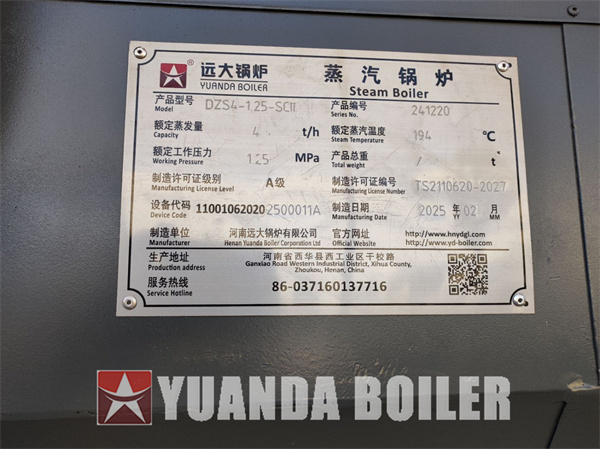

DZS Wood Biomass Steam Boiler 4Ton Made in China

DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.

Chaudière à vapeur alimentée au charbon et à la biomasse de bois de la série DZH, chaudière à grille mobile de 3 tonnes/heure, chaudière à tubes d’eau et à tubes de fumée à tambour unique.

Upgrade your steam boiler system with the efficient and automated SZL Series Automatic Biomass Pellets Boiler. This water tube steam boiler is specifically designed to utilize biomass pellets as a renewable and environmentally friendly fuel source. With its automatic operation, it ensures convenient and hassle-free steam production. The water tube design maximizes heat transfer efficiency and ensures optimal energy utilization. Trust the SZL Series Automatic Biomass Pellets Boiler to deliver consistent and clean steam for a wide range of industrial applications. Enhance your productivity and reduce carbon footprint with this advanced steam boiler system.

Upgrade your steam generation capabilities with the 6Ton Water Tube Biomass Fuel Steam Boiler. This high-capacity boiler is specifically designed for efficient and reliable steam production using biomass as its fuel source. With its automatic feeding system, it ensures a continuous and hassle-free operation. The water tube design maximizes heat transfer efficiency and energy utilization. Trust the 6Ton Water Tube Biomass Fuel Steam Boiler to provide consistent and clean steam for various industrial applications. Enhance your productivity and reduce environmental impact with this advanced steam boiler solution.

Solid Fuel Coal Wood Biomass Waste Fuel Steam Boiler 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 15ton 20ton 25ton 30ton

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

Better fuel adaptability
Comparing with DZL boiler, DZH boiler has better adaptability on fuels, it can fire coal, rice husk, nut shell, sawdust, waste wood pieces, also can fire wood logs, straws. But, DZH boiler can only support manual fuel feeding, and manual ash remove.

Elevate the central heating system in your villages project with the powerful 4200kw and 7000kw Biomass Hot Water Boiler. Designed specifically for central heating applications, this boiler utilizes biomass as a sustainable and renewable energy source. With its high capacity, it ensures efficient and reliable hot water supply for large-scale projects. The biomass fuel option reduces carbon emissions and promotes eco-friendly heating solutions. Trust the 4200kw and 7000kw Biomass Hot Water Boiler to deliver consistent and environmentally conscious heating, improving comfort and sustainability in your villages project.

SZL Water tube steam boiler 6ton for food factory uganda

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

China manufacture Vertical Biomass/Wood Thermic Fluid Heater (Thermal Oil Heater Boiler) , application in wood drying, wood industry

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

High quality control
In manufacturing processes, we has adopting steel strength test, automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test,etc, to make sure all finished products is qualified.

YLW Horizontal wood/biomass thermal oil boiler.
Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

Thermal oil boiler could instead steam boiler for industrial production, to improve productivity. Yuanda thermal oil boilers are widely used for petroleum chemical industry, Oleochemical industry, Synthetic fiber industry, textiel printing and dyeing industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food indstry, electrical equipment industry, coking industry, etc.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

SZL Series water tube biomass boiler, is double drums offset furnace structure (“D” type), with Chain Grate Stoker. Boiler with advantages of high technology, environmental and energy saving.

25ton/hour Biomass steam boiler for electricity generation, rice husk fired boiler for rice mill production heat & power generation in Guyana.

DZH series manual coal/wood/biomass fired boiler, travelling grate boiler. Inner water-tubes & fire-tubes design.

Upgrade your steam boiler system with the Automatic SZS Water Tube Type Biomass Burner Boiler. This innovative boiler combines water tube technology with an efficient biomass burner, providing reliable steam generation. With its automatic operation, it ensures convenient and hassle-free steam production. The water tube design maximizes heat transfer efficiency, while the biomass burner offers sustainable and eco-friendly fuel options. Trust the Automatic SZS Water Tube Type Biomass Burner Boiler to deliver consistent and clean steam for various industrial applications. Enhance your productivity and reduce environmental impact with this advanced steam boiler system.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

Wood Fired Boiler, Wood Steam Boiler, Wood Hot Water Boiler
(1) Use wood log, wood chips, woodwaste, sawdust, wood pellets, firewood, biomass waste.
(2) We supply kinds of models boiler for wood burning. Wood fired boiler suitable capacity in 0.3ton-50ton, 200kw to 35000kw.
(3) Most popular is horizontal type wood boiler, widely named DZL wood boiler, DZH wood boiler, DZG wood boiler.

Popular DZL DZH series wood boiler, is water-tube and fire-tube boiler, a new eco-friendly and energy-saving product co-developed by our company and china famous boiler export Li Zhiguang. It is called as “Revolution of industrial boilers”. This type boiler can burn many kinds of fuels, specially furnace design for wood, coal and biomass.

DZH wood biomass boiler, is manual type biomass feeding boiler.

8ton industrial biomass fired steam boiler with reciprocating grate combustion stoker. SZW series water tube biomass boiler 4ton 6ton 8ton 10ton 15ton 20ton.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Optimize your heat generation in the furniture industry with the Automatic Biomass Thermal Oil Heater. Specifically designed for the furniture industry, this thermal oil heater utilizes biomass as a sustainable and renewable fuel source. With its automatic operation, it ensures convenient and hassle-free heat production. The thermal oil system provides consistent and efficient heat transfer for various furniture manufacturing processes. Trust the Automatic Biomass Thermal Oil Heater to deliver reliable and clean heat, improving productivity and reducing environmental impact in the furniture industry. Experience efficient and eco-friendly heating solutions tailored to your furniture manufacturing needs.

Power up your industrial processes with the Industrial Biomass Burner Boiler. This high-capacity steam boiler is specifically designed for industries, offering reliable and efficient steam generation. With its biomass burner, it utilizes renewable biomass fuel, reducing environmental impact and promoting sustainability. With a 10ton/hr capacity, it meets the demands of large-scale industrial operations. Trust the Industrial Biomass Burner Boiler to deliver consistent and clean steam, enhancing productivity and efficiency in a wide range of industries. Experience sustainable energy solutions for your industrial needs.

DZL boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. The combustion traveling chain grate can feed the fuels automatically, with different rolling speed can adapt different fuels’ burning speed. Also, the small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

Boiler design advantages
1. Adopting automatic screw feeding, with reasonable second air technology and half gasification structure
helping fuel combust completely, the thermal efficiency can reach more than 90%. Stable flame, producing
steam cautiously.
2. Primordial dust emissions density is low:The volume of the coal biomass-fired steam boiler is large and there is a dust
separation device, so the primordial dust emissions density will be controlled much lower than the standard allowed.
3. Control system: Installing microcomputer to operate with one-button, people just set the process, and it can
work automatically during the operating time. Once any abnormal situation to happen, stopping automatically
with sound-light alarm, and pointing to the failure code, so it saves time to maintain.
4. Our protected device is safe and reliable. Selecting superior pressure controller, safety valve, low water alarm,
overpressure alarm, over-temperature alarm, in order to make boilers operate safely.
5. Heating fast:There are many spiral gas tubes in the boiler and almost half of the coal fired steam boiler shell
can be heated, so the temperature can up soon.
6. It is simple to clean slag only after burning completing.
