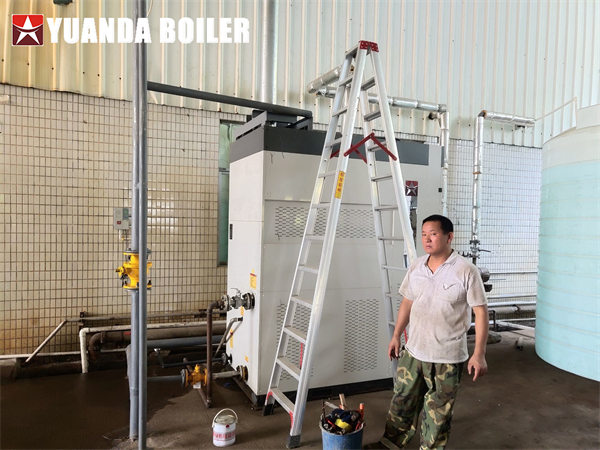

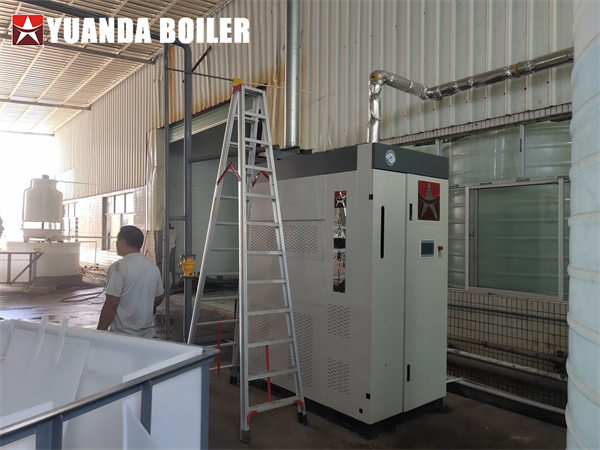

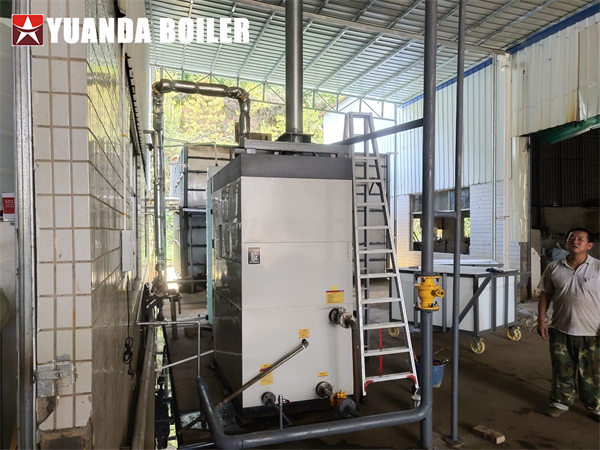

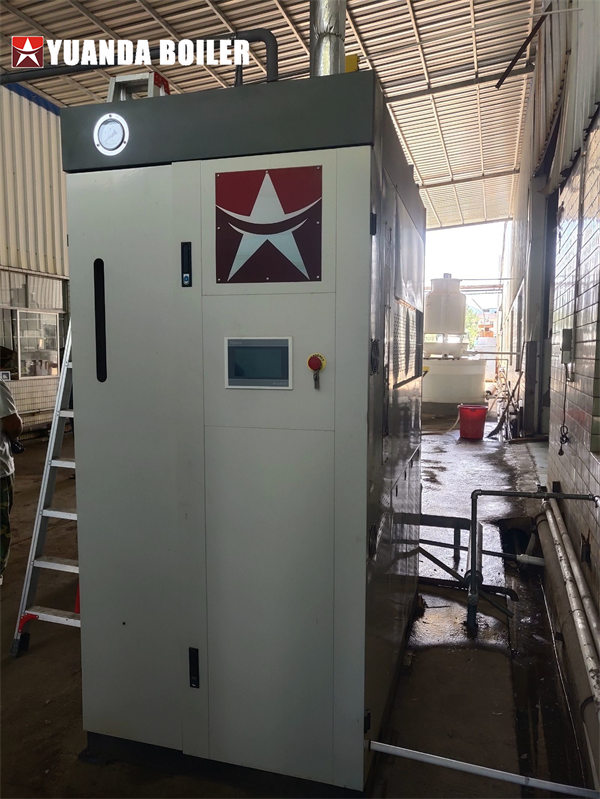

LSS 500kg Water Tube Once Through Boiler Gas Fired Steam Generator Boiler

1. The small water volume, fast steam generating. LHS Series steam boiler has vertical design and compact structure, just requires small floor space;
2. Adopting large-volume steam chamber, and lay-in steam/water separator can produce high-quality steam stably;
3. The lay-in low water level protection device to detect the change of water level at any time, totally avoid dry-burning and operation accidents;
4. LHS Series vertical type steam boiler is equipped with high-quality pressure relief valve, water level electrode, water level gauge, pressure gauge, pressure controller, and other accessories to ensure boiler’s reliable operation.

High Efficiency Low Cost Clean Steam Generation 75kg 85kg 100kg 150kg 200kg 300kg 400kg 500kg Electric Steam Generator Boiler

Yuanda WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology, equipped with international first-level brand burners and valve groups, and independently developed high-matching PLC control system to realize muitiple linkages. The lock protection function protects the equipment running safely.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler;
Featureas of DZL boiler:
1. Adopting the new-type structure
The new-type structure steam boiler adopts single drum vertical type arrangement, and two sides of the furnace are arranged with water cooled wall. The upper part is welded with the boiler drum, and the lower part is welded with the right and left container. The back arch and the drum space are arranged with convection bank, whose upper part is welded with boiler drum, and whose lower part is connected with all containers. It is the compact structure.
2. Organizing the fire in the furnace reasonably. The furnace adopts double layers anti-burning structure which is formed by the pre-combustion chamber and combustion chamber. As for the boiler design, dividing the furnace into the pre-combustion chamber and combustion chamber, which is good for strengthening the fuel burning, and decreasing flying ash fuel and flying ash content.
3. Among the convection tubes, there are many smoke baffle walls, which can make fire turning-back many times and are good for removing the dust of the furnace. Boiler itself has a dust removal function, so that dust emissions from the boiler to reach the target state environmental regulations. This series of boiler adopts arched tube plate, two-wing flue pipe etc, thread, solve the smoke pot shell boiler tube plate cracking, the bulge, tube boiler water-cooled wall tube, thermal efficiency is low, the coal output, adaptability, etc.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1.The output power remain constant
2.The boiler is heating up quickly and have high heat efficiency
3.Low original dust concentration,environmental protection and energy conservation
4.High quality of steam
5.Strong water quality adaptability
6.Small size appearance, low investment in boiler room
7.Low running cost, safe and reliable (safety and reliability)
8.Short installation time, low installation cost

High efficiency oil gas fired boiler, low emission NOx, low consumption cost.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

Experience efficient and reliable steam generation with the LSS 500kg Water Tube Once Through Boiler Gas Fired Steam Generator Boiler. This high-performance boiler is designed to provide on-demand steam for a variety of applications. With its gas-fired operation, it offers cost-effectiveness and reduced environmental impact. The water tube design ensures quick heat transfer and optimal energy efficiency. Trust the LSS 500kg Water Tube Once Through Boiler to deliver consistent and high-quality steam, making it an ideal choice for industrial processes requiring reliable steam generation.

WNS seires automatic gas oil fired boiler, With high thermal efficiency & fully-automatic runing & low consumption cost. Long life span 20Years. Thermal Capacity: 0.5ton-20ton, 300kw-14000kw.

High Efficiency Low Cost Clean Steam Generation 25kg 35kg 50kg 75kg 85kg 100kg 150kg 200kg 300kg 400kg 500kg Electric Steam Generator Boiler

Industrial water tube coal fired steam boiler 40ton/hour, automatic chain grate coal boiler, high efficiency steam boiler for flour plant.

SZS water tube steam boiler, double drums boiler with water membrane wall structure.

YYQL series Vertical gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

SZL double drum water tube steam boiler is horizontal type water tube boiler, the combustion equipment is chain grate. The boiler adopts fast assembly or packaged assembly structure, boiler with steam capacity lower than 4t/h is fast assembly water tube structure, boiler with steam capacity between 6~25t/h is consisted of upper part (boiler heated part) and lower part (combustion equipment). The wood fired hot water boiler has the advantages of compact structure, high steam quality, sufficient output, operate convenient and environmental protection.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

DZL boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. The combustion traveling chain grate can feed the fuels automatically, with different rolling speed can adapt different fuels’ burning speed. Also, the small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

China Yuanda Boiler Qualified with ISO CE ASME DOSH EAC. Industrial diesel gas fired steam generator boiler 4000kg/hour.
Horizontal fire tube wet back structure, high efficiency low cost low emission oil gas fired boiler.

DZL biomass fired steam boiler with chain grate device
1.Automatic feeding, automatic ash remove function.
2.Long life time, more than 10 years.
3.62 years experience for manufacturing, mature technology.
4.Big furnace and heating area, advanced design.
5.Full automatic control, Protection devices for overheating, over pressure, lacking water, leak detection, flame out
6.Enough steam output, less heat dissipation, high thermal efficiency.lowest fuel consumption, lower power consumption.
7.with 95% high efficiency dust collector, more Eco-friendly.
8.The featured structure of the boiler: Threaded pipe, Airfoil flue , Convex tube plate , The backwater towards high temperature tube plate, Simple loop circuit, Dust separated chamber, big furnace, compact structure so on.

Yuanda promises the top quality of every set machine and best after-sales service as followings :
Service Criteria:
First,solve the problem, finally determine responsibility.
Service Policy:
1. Three all : all the process, all-round, all-weather service
2. Two fast: fast in place,trouble shooting quickly
3. Make sure:be compliant to customer satisfaction
Boiler body warranty for 24 months, auxiliary warranty for 12 months
Provide life-long maintenance, maintenance services

Our nigeria customer use 6ton husk steam boiler, invest in rice mill.

High Efficiency Low Cost Clean Steam Generation 50kg 65kg 75kg 85kg 100kg 150kg 200kg 300kg 400kg 500kg Electric Steam Generator Boiler

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

2ton steam generation boiler, saturated steam capacity 2000kg per hour. Automatic running & efficient work, help saving energy.

Industrial fire tube boiler, powered by diesel, gas, lpg, heavy oil, hydrogen, exhaust gas.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.
