Horizontal Biomass Thermic Fluid Heater For Plywood Factory

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

YYQL series Vertical gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

YY(Q)W series of organic heat carrier boiler is quick-fitting forced circulation fuel oil(gas)boiler,this series boiler’s is compact structure,the heating area is constituted by closed coil pipes from inside(or internal and external),inside coil pipes are the radition heating surface.Fuel in inside theinner coil pipe form the combustion chamber,the fuel burn inside and release heat and absorb most of the quantity of heat after radiation heating,high temperature flue gas transfer heat through convection heating surface,then go into the air preheater (or waste heat boiler) to heat the required air(or water) ,the low temperature flue gas from boiler discharge directly to the chimney then to the atmosphere.

Thermal oil heater advantages
1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.

YYQW series diesel gas fired thermal oil heater boiler, horizontal three pass three coils thermal oil heating system. 7000kw 6million kcal thermal oil boiler for oil gas field.

Optimize your textile dyeing processes with the efficient and reliable 2100kw Thermic Fluid Heater. Specifically designed for textile dyeing applications, this heater provides efficient heat transfer using thermic fluid as the medium. With its 2100kw capacity, it meets the heat requirements of textile dyeing processes, ensuring precise and consistent temperature control. The Thermic Fluid Heater enhances productivity and efficiency in textile dyeing, delivering clean and efficient heat transfer. Trust this advanced heater to meet the demanding requirements of textile dyeing, ensuring high-quality results. Experience reliable and high-quality heat transfer for your textile dyeing operations.

YQ(Y)W series gas-fired/oil-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.

This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).

The Thermic Fluid Heater enhances productivity and efficiency in rubber products productions, delivering clean and efficient heat transfer. Trust this advanced heater to meet the demanding requirements of heating, ensuring high-quality results. Experience reliable and high-quality heat transfer for yourrubber products productions process.

Enhance your heat transfer capabilities with the 600000kcal Thermic Fluid Heater Gas Fired Heaters. Designed for efficient heat transfer, these gas-fired heaters utilize thermic fluid as the heat transfer medium. With a capacity of 600000kcal, they provide reliable and consistent heat for various industrial applications. The gas-fired operation ensures cost-effectiveness and reduced environmental impact. Trust the Thermic Fluid Heater Gas Fired Heaters to deliver clean and efficient heat transfer, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with these advanced gas-fired heaters.

Elevate your heat transfer capabilities in the chemical industry with the 1400kw Hot Oil Boiler. Specifically designed for the chemical industry, this boiler provides efficient and reliable heat transfer using hot oil as the medium. With its 1400kw capacity, it meets the heat requirements of various chemical processes and production. The hot oil system ensures precise and consistent temperature control, making it suitable for a wide range of chemical manufacturing processes. Trust the 1400kw Hot Oil Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the chemical industry. Experience reliable and high-quality heat transfer for your chemical industry operations.

Elevate your heat transfer capabilities with the 1400kw Gas Fired Hot Oil Boiler YYQW Horizontal Boiler. Specifically designed for efficient heat transfer, this horizontal boiler utilizes gas as its fuel source. With a capacity of 1400kw, it provides reliable and consistent heat for various industrial applications. The YYQW design ensures optimal heat transfer efficiency, making it suitable for a wide range of heating processes. Trust the Gas Fired Hot Oil Boiler YYQW Horizontal Boiler to deliver clean and efficient heat, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with this advanced horizontal boiler solution.

YYQW horizontal thermal oil boiler / 200kw-14000kw boiler / three-coil oil heater, high efficiency thermal oil boiler, 100% safety ensurance.
most used in textile, bitumen, plywood, gloves, textile, asphalt, foods, heating tanks, heating crude oil, oil refinery…..

Small diesel gas fired thermal oil heater boiler, also named thermic fluid heater. 200000kcal thermal capacity 240kw thermal oil boiler for oil mill. Thermal oil heating system, temperature in 250degree.

Thermal oil boiler(also called organic heat carrier furnaces) generally use coal, oil, and gas as fuels, take heat-conducting oils as the medium, force liquid to circulate in the liquid medium by using oil circulation pump, transferring heat energy to the heating equipment, then heat-conducting oil return to furnace and reheating.Boiler can reach high temperature at low pressure,control medium operating in high-precision.

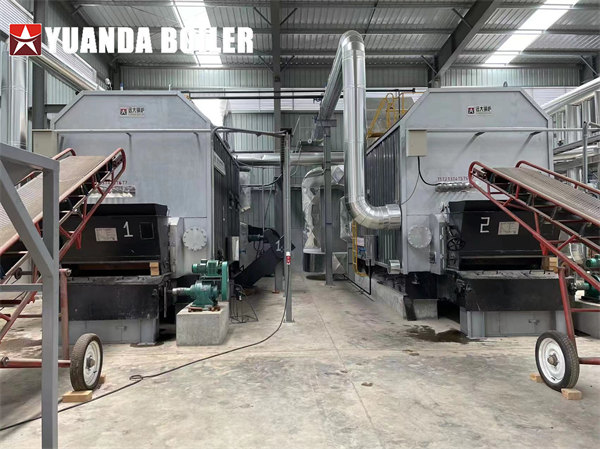

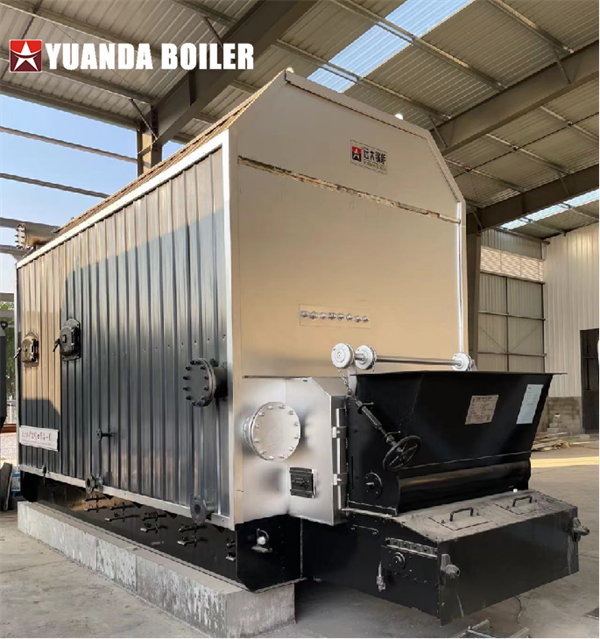

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YLW series thermal oil heater is horizontal type boiler with coal or biomass as the fuel. The combustion equipment is chain grate. Coal or biomass thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier.

900kw horizontal electric thermal oil heater boiler for plastics industry factory in peru.

YY(Q)W series gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

Elevate your heat transfer capabilities in the oil and gas industry with the Portable 2100kw Heater Boiler. Specifically designed for oil and gas industry applications, this portable boiler provides efficient and reliable heat transfer. With its 2100kw capacity, it meets the heat requirements of various oil and gas processes, ensuring precise and consistent temperature control. The portable design allows for easy transportation and installation, making it suitable for temporary or remote locations. Trust the Portable 2100kw Heater Boiler to deliver clean and efficient heat transfer, enhancing productivity and meeting the specific needs of the oil and gas industry. Experience reliable and high-quality heating solutions for your oil and gas operations.

1. High Quality Manufactured Thermal Oil Boiler With ASME Certified, Canada customer use thermal oil heater boiler for sugar making equipment, ciculating high temperature thermal oil through the equipment for indirect heating, gas powered thermal oil boiler at high thermal efficiency, qualification with ISO ASME certificates.
2. Special designed Skid-mounted thermal oil boiler, available to transfer to somewhere for usage. “Plug and Play” Thermal Oil Boiler.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Optimize your heat transfer capabilities in the food factory with the 700kw Thermal Oil Heater Boiler. Specifically designed for the food industry, this boiler provides efficient and reliable heat transfer using thermal oil as the medium. With its 700kw capacity, it meets the heat requirements of food processing and production. The thermal oil system ensures precise and consistent temperature control for various food manufacturing processes. Trust the 700kw Thermal Oil Heater Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the food industry. Experience reliable and high-quality heat transfer for your food factory operations.

Industrial electric thermal oil heater boiler 10kw-1000kw

Industrial electric thermal oil heater boiler 10kw-1000kw

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YLW coal fired thermal oil boiler is a kind of new type heating equipment, the fuel could be coal, biomass or flue gas, the heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. It is an safe and low energy consumption boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The boiler medium is working under liquid state, so it is safe and reliable.

Gas/Diesel Thermal Oil Boiler
YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

Optimize your asphalt plant operations with the efficient and reliable Thermal Oil Heater. Specifically designed for asphalt plant use, this heater utilizes thermal oil as the heat transfer medium. With a capacity of 1400kw, it provides consistent and precise heat for asphalt production and processing. The Thermal Oil Heater ensures efficient and reliable heat transfer, enabling optimal asphalt quality and production efficiency. Trust this advanced heater to deliver clean and efficient heat, enhancing productivity and meeting the demanding requirements of asphalt plant operations. Experience reliable and high-quality heat transfer for your asphalt production needs.

YY(Q)W series hot oil boiler is horizontal type boiler with oil or gas as the fuel. Thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier, through the circulating pump to transfer the heat to other required heating equipments

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.High operating temperatures can be achieved under very atmospheric conditions. Greatly reduce operating pressure and safety requirements of the high-temperature heating system, improve the reliability of the system and equipment;
2. Satisfy all different temperature heating and cooling process requirements in a wider temperature range, besides, it can achieve the high-temperature heating and low-temperature cooling process requirements by using same heat-conducting oil in same system and same time. Reduce the complexity of system and operation;
3. The water treatment system and equipment are omitted, improve system thermal efficiency, reduce maintenance workload of equipment and pipelines. So that we can reduce the initial investment and operating costs of the heating system;
4. In the case of accidental system leakage, heat-conducting oil and open flame may burn. This is a problem need to pay attention compared to the water vapor system. However, promise there is no leakage, operating under low pressure, its operation safety is higher than that of water and steam systems.

Elevate your bitumen plant operations with the efficient and reliable Gas Fired Thermal Oil Boiler. Specifically designed for bitumen plants, this boiler utilizes gas as its fuel source to provide precise and consistent heat. With a capacity of 120,0000Kcal, it ensures optimal heat transfer for bitumen production and processing. The Gas Fired Thermal Oil Boiler enhances productivity and efficiency in bitumen plants, delivering clean and efficient heat. Trust this advanced boiler to meet the demanding requirements of bitumen production, ensuring high-quality output. Experience reliable and high-quality heat transfer for your bitumen plant operations.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.
