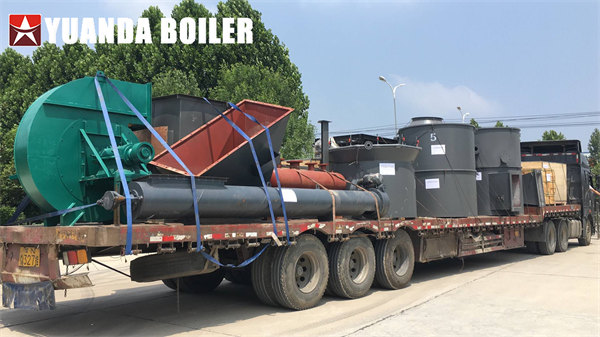

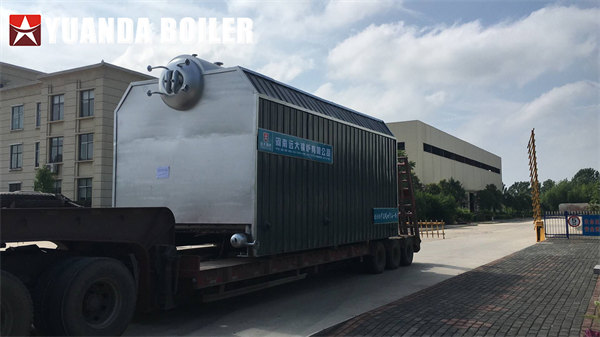

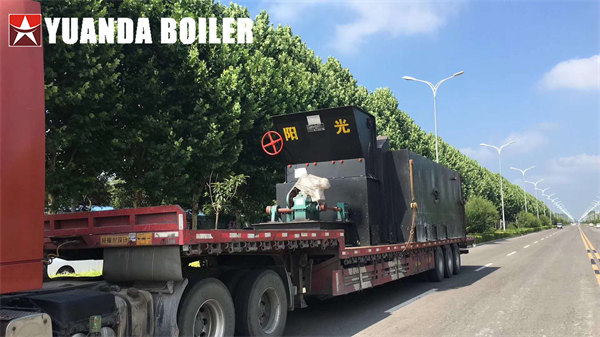

Pakistan 8Ton Water Tube Biomass Boiler Delivery

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

Thermal oil boiler(also called organic heat carrier furnaces) generally use coal, oil, and gas as fuels, take heat-conducting oils as the medium, force liquid to circulate in the liquid medium by using oil circulation pump, transferring heat energy to the heating equipment, then heat-conducting oil return to furnace and reheating.Boiler can reach high temperature at low pressure,control medium operating in high-precision.

China industrial biomass wood fired boiler, with reciprocating grate stoker. 1ton-75ton biomass fired boiler for all industries production heat and power generation.

DZL series coal/biomass fired steam boiler is single drum, and adopt three-pass fire and water tubes. Both sides of the wall around the furnace are radiation heating surface.Two wings of furnace are convective heating surface.

4000kg biomass pellets boiler,4ton biomass fired boiler,dzl wood biomass boiler

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

YLW Horizontal wood/biomass thermal oil boiler.
Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

Thermal oil boiler could instead steam boiler for industrial production, to improve productivity. Yuanda thermal oil boilers are widely used for petroleum chemical industry, Oleochemical industry, Synthetic fiber industry, textiel printing and dyeing industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food indstry, electrical equipment industry, coking industry, etc.

SZL series high efficiency biomass boiler, inner water tube structure, 2ton 4ton 6ton 8ton 10ton 12ton 15ton 20ton 30ton biomass waste fired boiler, high tech deign double drums & water membrane wall deign.
Yuanda biomass boiler can burn solid waste, biomass pellets, ricehusk, palm shells, palm kernel shells fibre, coconuts shells, peanute shells, sawdust, wood waste, wood pellets, wood log, woodchips, agro forest waste…

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

The DZL/DZH new water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and famous Harbin institute of Technology and director of Beijing Institute of Light Boiler.
1.Boiler model:DZL/DZH
2.Boiler capacity:1-20ton/h
3.Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature:184 °c,194°c, 204°c,226°c(As long as below 226°c,we can do it)
5.Fuel:coal,biomass
6.Structure:horizontal water-fire tube, single drum
7.Type:There are two types.One is DZL chain grate stoker automatic feeding fuel and removing dregs type. Another is DZH hand operated moving grate type which needs labour to feed fuel and remove the dregs.
8.Application:Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Yuanda DZL series chain grate stoker boiler & Steam Boiler & Hot Water Boiler.

SZL double drum water tube steam boiler is horizontal type water tube boiler, the combustion equipment is chain grate. The boiler adopts fast assembly or packaged assembly structure, boiler with steam capacity lower than 4t/h is fast assembly water tube structure, boiler with steam capacity between 6~25t/h is consisted of upper part (boiler heated part) and lower part (combustion equipment). The wood fired hot water boiler has the advantages of compact structure, high steam quality, sufficient output, operate convenient and environmental protection.

DZL series biomass boiler, it is horizontal three-pass water & fire tube boilers with grate combustion device. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides from a radiation heating surface in the furnace.

SZL Series water tube biomass boiler, is double drums offset furnace structure (“D” type), with Chain Grate Stoker. Boiler with advantages of high technology, environmental and energy saving.

YLW coal fired thermal oil boiler is a kind of new type heating equipment, the fuel could be coal, biomass or flue gas, the heat carrier is heat conduction oil, the circulating pump force heat transfer medium circulating in liquid phrase, and transfer heat to heat user equipment, then return to the heating furnace for reheating. It is an safe and low energy consumption boiler with working characteristics of low pressure (1.0 MPa) and high temperature (350℃). The boiler medium is working under liquid state, so it is safe and reliable.

DZL series package boilers are horizontal three-pass water & fire tube boilers with a chain grate stoker structure. Threaded pyrotechnic tubes are arranged in the drum to form a convection heating surface, while the drum and the water walls on both sides form a radiation heating surface in the furnace. Each package system is fully installed and wired before being transported to site and is electrically controlled to provide functions such as stepless speed regulation for the stoker, threshold parameter alert and interlock protection.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

Optimize your heat generation in the furniture industry with the Automatic Biomass Thermal Oil Heater. Specifically designed for the furniture industry, this thermal oil heater utilizes biomass as a sustainable and renewable fuel source. With its automatic operation, it ensures convenient and hassle-free heat production. The thermal oil system provides consistent and efficient heat transfer for various furniture manufacturing processes. Trust the Automatic Biomass Thermal Oil Heater to deliver reliable and clean heat, improving productivity and reducing environmental impact in the furniture industry. Experience efficient and eco-friendly heating solutions tailored to your furniture manufacturing needs.

DZL 4200kw biomass hot water boiler 4200kw, widely used for central heating, water heating system in wood drying, heating & drying in wood pellets productions line.

Boiler advantages
1.Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2.Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3.Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4.Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5.Self support
Cancel the steel frame, save steel material.
6.New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

DZH coal/ biomass fired fixed chain grate boiler realizes zero pollution with the use of special dust collector solution (water film dust collector, bag type static electricity dust collector, double towers desulfurization, etc.). Because its steady performance and low fuel consumption, make it is popular in market.

DZH series manual coal/wood/biomass fired boiler, travelling grate boiler. Inner water-tubes & fire-tubes design.

Enhance the sustainability of your pharmaceutical industry operations with the 10tph Biomass Burner Boiler. Designed specifically for the pharmaceutical industry, this biomass burner boiler utilizes renewable biomass fuel to provide efficient heat and steam generation. With its high capacity, it ensures reliable and consistent performance for your production processes. The biomass burner reduces carbon emissions and promotes eco-friendly energy solutions. Trust the 10tph Biomass Burner Boiler to deliver sustainable and cost-effective heating and steam supply, meeting the specific needs of the pharmaceutical industry and contributing to a greener future.

Boiler advantages
1.Design the cyclone chamber inside the chamber of the stove
When the high temperature smoke through the cyclone chamber,smoke rotate with high speed and burn thoroughly.Improve the heat efficiency of boiler,the big dust settle down ,achieve the result of secondary combustion and first dust removal.
Energy conservation,high efficiency,environment friendly.
This design obtains national patient.
2.Separate wind chamber structure
Make air regulation sensitive and make wind uniformly in landscape orientation in the reliable longitudinal wind chamber.
Resolve the wind plug,wind channeled,partial burn phenomenon.
The design obtains national patent.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.
