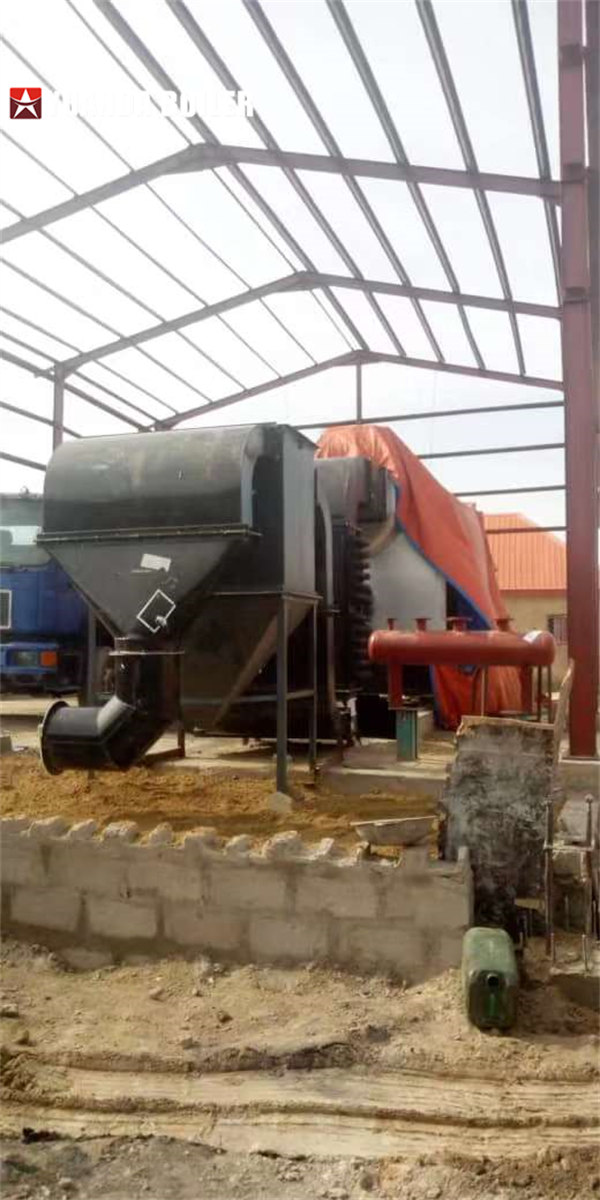

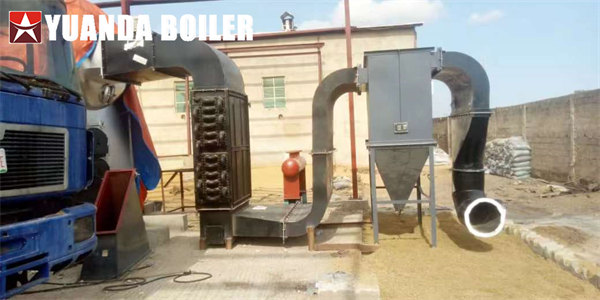

4Ton Ricehusk Boiler For Parboiling Drying In Rice Mill

DZL boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. The combustion traveling chain grate can feed the fuels automatically, with different rolling speed can adapt different fuels’ burning speed. Also, the small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

Yuanda WNS series oil/gas fired boiler adopts horizontal three-pass wet-back structure,large corrugated furnace and patented thread pipe technology, equipped with international first-level brand burners and valve groups, and independently developed high-matching PLC control system to realize muitiple linkages. The lock protection function protects the equipment running safely.

Industrial fire tube boiler, horizontal three pass wet back boiler.
Automatic high efficiency low consumption oil gas fired boiler.
Steam Generator. Hot Water Boiler. Steam Boiler.

SZL Series water tube biomass boiler, is double drums offset furnace structure (“D” type), with Chain Grate Stoker. Boiler with advantages of high technology, environmental and energy saving.

DZH boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. Most important, the combustion fixed chain grate can also suit any kind of biomass. The small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

SZL Series Water Tube Boiler Double Drums Chain Grate Coal Fired Boiler For Production Heat & Power

Portable skid mounted oil gas fired steam generator boiler 500kg 1000kg 1500kg 2000kg 3000kg 5000kg 6000kg

High quality control
In manufacturing processes, we has adopting steel strength test, automatic steel cutting/ plate rolling/ welding, 100% x-ray welding check, magnetic particle check c-scan ultrasonography check, fluorescent penetrating check, hydraulic (water) pressure test, boiler thermal efficiency test,etc, to make sure all finished products is qualified.

WNS fire tube boiler, horizontal type furnace combustion boiler with gas/oil burner. Its fire-tube boilers and flue gas three pass boiler, special wet back structure make sure long using lifespan.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

Industrial gas oil boiler, widely used for all kinds industries, such as foods, beverage, milk, feedmill, garments, textile, plywood, paper plant, chemical industry, laundry, rice mill, refinery oil plant, etc.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

Horizontal gas oil burner boiler, WNS series horizontal steam boiler hot water boiler services, global sale services cover 108 countries. With ISO CE ASME certificates, reliable quality lifespan service.

Optimize your heat transfer capabilities in the food factory with the 700kw Thermal Oil Heater Boiler. Specifically designed for the food industry, this boiler provides efficient and reliable heat transfer using thermal oil as the medium. With its 700kw capacity, it meets the heat requirements of food processing and production. The thermal oil system ensures precise and consistent temperature control for various food manufacturing processes. Trust the 700kw Thermal Oil Heater Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the food industry. Experience reliable and high-quality heat transfer for your food factory operations.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

WNS seires automatic gas oil fired boiler, With high thermal efficiency & fully-automatic runing & low consumption cost. Long life span 20Years. Thermal Capacity: 0.5ton-20ton, 300kw-14000kw.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

Horizontal Electric Boiler Steam Boiler 500kg 1000kg 2000kg 3000kg 4000kg 5000kg

DZL biomass fired steam boiler with chain grate device
1.Automatic feeding, automatic ash remove function.
2.Long life time, more than 10 years.
3.62 years experience for manufacturing, mature technology.
4.Big furnace and heating area, advanced design.
5.Full automatic control, Protection devices for overheating, over pressure, lacking water, leak detection, flame out
6.Enough steam output, less heat dissipation, high thermal efficiency.lowest fuel consumption, lower power consumption.
7.with 95% high efficiency dust collector, more Eco-friendly.
8.The featured structure of the boiler: Threaded pipe, Airfoil flue , Convex tube plate , The backwater towards high temperature tube plate, Simple loop circuit, Dust separated chamber, big furnace, compact structure so on.

Industrial fire tube boiler 0.5ton 1ton 2ton 3ton 4ton 5ton 6ton 8ton 10ton 15ton 20ton 30ton.

Automatic oil gas fired steam boiler, fire tube structure, wet back structure, high efficiency low cost boiler.

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

Boiler introduction
1.Boiler model: SZL
2.Boiler capacity: 1-20ton/h
3.Pressure: 1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature: 184 °c,194°c, 204°c,226°c (As long as below 226°c,we can do it)
5.Fuel: wood,rice husk,coconut shell,bagasse,peanut shell,biomass pellet
SZL series water tube boiler is a new design offset hearth (D-type layout), great apply for biomass fuel, environmental protection and energy conservation, and is a key promoted product of national energy-saving projects.

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

ASME code steam boiler, burning wood, biomass, solid waste.
Yuanda Boiler 6Ton Boiler Deliver to South Africa.
DZL chain grate biomass boiler, automatic feeding system, water-tube fire-tube structure single drum boiler.

Safe Operation
DZH series is equipped with automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, visible system’s working states on screen.

The production process of liquid dairy products mainly includes: raw milk acceptance, milk cleaning, refrigeration, preheating, homogenization sterilization, cooling, aseptic filling, fermentation, final product storage etc. Steam boiler is used for fermentation, disinfection, drying, etc., The sterilization of liquid dairy products and the fermentation process of sour milk are the main uses of the boilers in dairy plants. According to the experience from working with many dairy companies in the past, fermentation, disinfection and sterilization of dairy products is the main steam consumption sections. If heating and bathing heat are added, steam demand will be higher.

500kg 1000kg 1500kg 2000kg 3000kg 4000kg 5000kg 6000kg 8000kg 10000kg 12000kg 15000kg 20000kg Industrial Oil Gas Fired Steam Boiler, High efficiency low consumption cost boiler.
