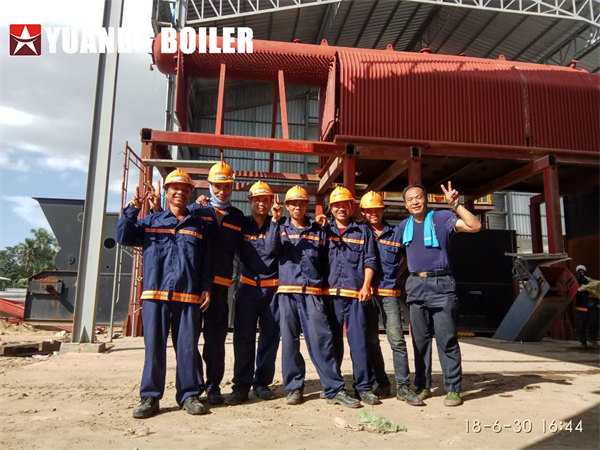

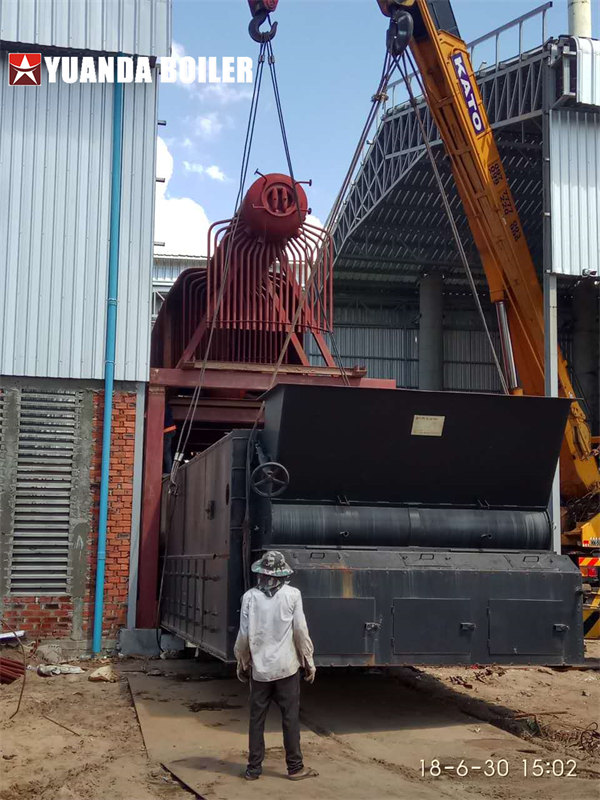

20Ton SZL Series Biomass Steam Boiler Installation in Cambodia

1. Popular ricehusk boiler used in rice mill,steam boiler capacity in 1ton-20ton/hr, for parboiling rice, dryer use.

2. Our husk fired boilers, have been used in oil mills, food factory, rice mills, beverage factory……in worldwide, such as Nepal, Pakistan, Uganda, Nigeria, Bangladesh, Colombia, South Africa, Myanmar, Vietnam. Global service for boiler installation guiding, training operators, we offer whole life service for customes’ boiler.

Safe Operation
DZH series is equipped with automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, visible system’s working states on screen.

DZH series coal boiler, is manual coal feeding boiler. Different with DZL automatic coal chain grate boiler, dzh series coal boiler use travelling grate combustion device, larbor work hand-feeding coal fired boiler.

dzl biomass steam boiler,chain grate biomass boiler 4ton,china biomass fired boiler

China industrial biomass wood fired boiler, with reciprocating grate stoker. 1ton-75ton biomass fired boiler for all industries production heat and power generation.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

4000kg biomass pellets boiler,4ton biomass fired boiler,dzl wood biomass boiler

ASME code steam boiler, burning wood, biomass, solid waste.
Yuanda Boiler 6Ton Boiler Deliver to South Africa.
DZL chain grate biomass boiler, automatic feeding system, water-tube fire-tube structure single drum boiler.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Boiler advantages
1.Design the cyclone chamber inside the chamber of the stove
When the high temperature smoke through the cyclone chamber,smoke rotate with high speed and burn thoroughly.Improve the heat efficiency of boiler,the big dust settle down ,achieve the result of secondary combustion and first dust removal.
Energy conservation,high efficiency,environment friendly.
This design obtains national patient.
2.Separate wind chamber structure
Make air regulation sensitive and make wind uniformly in landscape orientation in the reliable longitudinal wind chamber.
Resolve the wind plug,wind channeled,partial burn phenomenon.
The design obtains national patent.

DZL biomass fired steam boiler with chain grate device
1.Automatic feeding, automatic ash remove function.
2.Long life time, more than 10 years.
3.62 years experience for manufacturing, mature technology.
4.Big furnace and heating area, advanced design.
5.Full automatic control, Protection devices for overheating, over pressure, lacking water, leak detection, flame out
6.Enough steam output, less heat dissipation, high thermal efficiency.lowest fuel consumption, lower power consumption.
7.with 95% high efficiency dust collector, more Eco-friendly.
8.The featured structure of the boiler: Threaded pipe, Airfoil flue , Convex tube plate , The backwater towards high temperature tube plate, Simple loop circuit, Dust separated chamber, big furnace, compact structure so on.

Biomass burning hot air stove, high temperature air generating, use for heating, drying.

China high tech design biomass boiler, water tube membrane-walll design, double water drums boiler. It is automatic biomass feeding boiler, with high thermal efficiency >88%. Availbale to burning woodchips, pellets, husk, coconuts waste, palm shells waste, wood logs, agro waste…

Thermal oil boiler(also called organic heat carrier furnaces) generally use coal, oil, and gas as fuels, take heat-conducting oils as the medium, force liquid to circulate in the liquid medium by using oil circulation pump, transferring heat energy to the heating equipment, then heat-conducting oil return to furnace and reheating.Boiler can reach high temperature at low pressure,control medium operating in high-precision.

The DZL/DZH new water-fire tube boiler is a new eco-friendly and energy-saving product co-developed by our company and famous Harbin institute of Technology and director of Beijing Institute of Light Boiler.
1.Boiler model:DZL/DZH
2.Boiler capacity:1-20ton/h
3.Pressure:1.0Mpa(10bar),1.25Mpa(13bar),1.6Mpa(16bar),2.5Mpa(25bar)
4.Steam temperature:184 °c,194°c, 204°c,226°c(As long as below 226°c,we can do it)
5.Fuel:coal,biomass
6.Structure:horizontal water-fire tube, single drum
7.Type:There are two types.One is DZL chain grate stoker automatic feeding fuel and removing dregs type. Another is DZH hand operated moving grate type which needs labour to feed fuel and remove the dregs.
8.Application:Medicine, chemical, light industry, textile, building material, cultivation, food and beverage, plastic foam, printing, dyeing and washing, rubber processing, paper products,wood processing, hotel, clothing and leather manufacturer etc.

8Ton biomass fired boiler, the complete system including boiler and burner, biomass burner inner use step grate combustion design, boiler is double drums water tube boiler.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

Manual wood/biomass waste burning boiler, DZH biomass boiler capacity in 1ton 2ton 4ton 6ton 8ton.

Safe Operation
DZH series is equipped with automatic water-level control, automatic pressure control, automatic interlock chain stop protection, free settable working pressure, visible system’s working states on screen.

DZL boiler adopting threaded fire tubes, single water drum, horizontal shell type boiler with 3 fire-passes structure, water-tube fire-tube mix design. The combustion traveling chain grate can feed the fuels automatically, with different rolling speed can adapt different fuels’ burning speed. Also, the small flakes chain grate can reduce fuel leakage, and also let the broken chain grate flakes is convenience of replace.

Optimize your heat generation in the furniture industry with the Automatic Biomass Thermal Oil Heater. Specifically designed for the furniture industry, this thermal oil heater utilizes biomass as a sustainable and renewable fuel source. With its automatic operation, it ensures convenient and hassle-free heat production. The thermal oil system provides consistent and efficient heat transfer for various furniture manufacturing processes. Trust the Automatic Biomass Thermal Oil Heater to deliver reliable and clean heat, improving productivity and reducing environmental impact in the furniture industry. Experience efficient and eco-friendly heating solutions tailored to your furniture manufacturing needs.

Experience convenient and efficient central heating with the portable container room biomass hot water heater boiler. This innovative boiler is designed to provide reliable hot water heating using biomass as its energy source. With its portable container design, it offers flexibility and ease of installation, making it a perfect choice for various applications. Enjoy sustainable and cost-effective central heating solutions that reduce environmental impact. Trust the portable container room biomass hot water heater boiler to deliver reliable and eco-friendly heating for your home or commercial space.

SZS 8ton water tube furnace boiler, with biomass burner. Industrial fire tube biomass fuel fired boiler, automatic type biomass burner boiler.

Power up your industrial processes with the Industrial Biomass Burner Boiler. This high-capacity steam boiler is specifically designed for industries, offering reliable and efficient steam generation. With its biomass burner, it utilizes renewable biomass fuel, reducing environmental impact and promoting sustainability. With a 10ton/hr capacity, it meets the demands of large-scale industrial operations. Trust the Industrial Biomass Burner Boiler to deliver consistent and clean steam, enhancing productivity and efficiency in a wide range of industries. Experience sustainable energy solutions for your industrial needs.

SZL Series water tube biomass boiler, is double drums offset furnace structure (“D” type), with Chain Grate Stoker. Boiler with advantages of high technology, environmental and energy saving.

SZL series chain grate boiler is the horizontal type double drum Longitudinal type chain grate water tube steam boiler and hot water boiler.This series boiler has reached the international advanced level at technology, performance, environmental-friendly.

DZL series steam boiler is the kind of automatic, horizontal, three-pass, and fire tube boiler; water wall tubes are arranged along both sides of the inner furnace; it is equipped with high efficiency cyclone, and dust concentration can meet the environmental requirements of second-class area; equipped with Induced Draft Fan and Forced Draft Fan.

Boiler advantages
1. Smoke and dust separator chamber
Separate smoke and dust according to inertia,reduce the original effluent concentration of soot.
2. Optimized design CAD
Choose the best furnace from dozens of options,improve economical efficiency.
3. Convex tube plate
improve tube plate flexibility, so as to reduce the heating stress of welded sew at the pipe end.
Prevent tube plate cracking, cancel bracing,simplify the structure.
4. Large size of simple circulation loop drop pipe and lower set box
Increase the flow rate of water on water cooling wall in order to prevent subcooled boiling. To prevent pipe explosion,Increase the reliability of water cycle
5. Self support
Cancel the steel frame, save steel material.
6. New pattern of furnace arch
Strengthen the combustion ,strong adaptability of coal quality,improve combustion efficiency.

Better fuel adaptability
Comparing with DZL boiler, DZH boiler has better adaptability on fuels, it can fire coal, rice husk, nut shell, sawdust, waste wood pieces, also can fire wood logs, straws. But, DZH boiler can only support manual fuel feeding, and manual ash remove.
