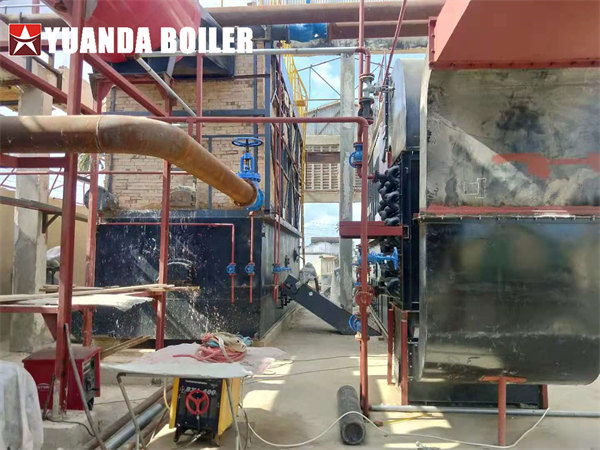

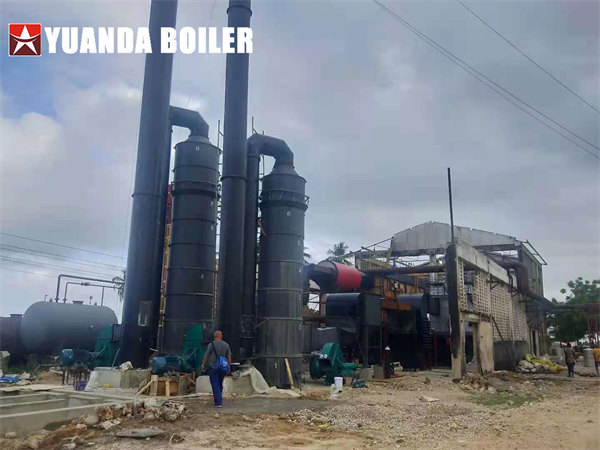

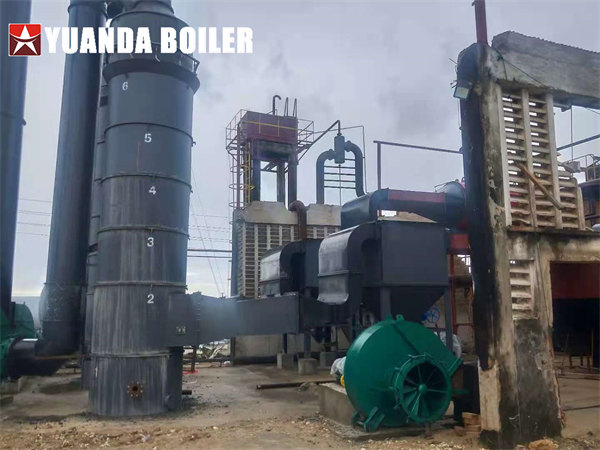

YLW 7000KW Biomass Thermal Oil Heater Boiler For Oil Refinery Tanazia

Gas/Diesel Thermal Oil Boiler
YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

YQ(Y)W series gas-fired/oil-fired thermal oil boilers have a three-pass round coil structure. A conical coil is used for the effective protection of the furnace wall at the boiler end. This product is equipped with an advanced combustion device and is fully automated in operation. After the burner ignites the fuel, flame fills the round coil tubes and transfers heat by radiation through the tube wall (first pass). The high temperature flue gas gathers at the back door and then turns to the convection tubes section (second pass), where heat transfer takes place by convection. The flue gas gradually cools down here and flows to the front door, where it is reversed and goes into the third pass. After that, it enters into the chimney through the economizer and is released into the atmosphere.

This type of heater is delivered as a whole, and is installed on site, it only needs to connect thermal gas(oil) piping and electricity to start operation. The heater has four heating areas: furnace radiation heating area, the first convection tube bundle heating area, the second convection tube bundle heating area and economizer (waste heat boiler).

YYQW horizontal thermal oil boiler / 200kw-14000kw boiler / three-coil oil heater
YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

Elevate your heat transfer capabilities in the oil and gas industry with the Portable 2100kw Heater Boiler. Specifically designed for oil and gas industry applications, this portable boiler provides efficient and reliable heat transfer. With its 2100kw capacity, it meets the heat requirements of various oil and gas processes, ensuring precise and consistent temperature control. The portable design allows for easy transportation and installation, making it suitable for temporary or remote locations. Trust the Portable 2100kw Heater Boiler to deliver clean and efficient heat transfer, enhancing productivity and meeting the specific needs of the oil and gas industry. Experience reliable and high-quality heating solutions for your oil and gas operations.

YY(Q)W series hot oil boiler is horizontal type boiler with oil or gas as the fuel. Thermal oil boiler is a new type heating equipment with heat conduction oil as the heat carrier, through the circulating pump to transfer the heat to other required heating equipments

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipments and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.High operating temperatures can be achieved under very atmospheric conditions. Greatly reduce operating pressure and safety requirements of the high-temperature heating system, improve the reliability of the system and equipment;
2. Satisfy all different temperature heating and cooling process requirements in a wider temperature range, besides, it can achieve the high-temperature heating and low-temperature cooling process requirements by using same heat-conducting oil in same system and same time. Reduce the complexity of system and operation;
3. The water treatment system and equipment are omitted, improve system thermal efficiency, reduce maintenance workload of equipment and pipelines. So that we can reduce the initial investment and operating costs of the heating system;
4. In the case of accidental system leakage, heat-conducting oil and open flame may burn. This is a problem need to pay attention compared to the water vapor system. However, promise there is no leakage, operating under low pressure, its operation safety is higher than that of water and steam systems.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

Optimize your heat transfer capabilities in the food factory with the 700kw Thermal Oil Heater Boiler. Specifically designed for the food industry, this boiler provides efficient and reliable heat transfer using thermal oil as the medium. With its 700kw capacity, it meets the heat requirements of food processing and production. The thermal oil system ensures precise and consistent temperature control for various food manufacturing processes. Trust the 700kw Thermal Oil Heater Boiler to deliver clean and efficient heat, enhancing productivity and meeting the stringent quality standards of the food industry. Experience reliable and high-quality heat transfer for your food factory operations.

YLW Horizontal wood/biomass thermal oil boiler.
Wood/Biomass thermal oil boiler, horizontal three pass coil structure, use circulating pump to force the liquid thermal oil circulation,and then transporting the heat to the thermal equipment.

Thermal oil boiler could instead steam boiler for industrial production, to improve productivity. Yuanda thermal oil boilers are widely used for petroleum chemical industry, Oleochemical industry, Synthetic fiber industry, textiel printing and dyeing industry, plastic and rubber industry, paper industry, wood industry, building materials industry, machinery industry, food indstry, electrical equipment industry, coking industry, etc.

Elevate your heat transfer capabilities with the 1400kw Gas Fired Hot Oil Boiler YYQW Horizontal Boiler. Specifically designed for efficient heat transfer, this horizontal boiler utilizes gas as its fuel source. With a capacity of 1400kw, it provides reliable and consistent heat for various industrial applications. The YYQW design ensures optimal heat transfer efficiency, making it suitable for a wide range of heating processes. Trust the Gas Fired Hot Oil Boiler YYQW Horizontal Boiler to deliver clean and efficient heat, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with this advanced horizontal boiler solution.

Enhance your heat transfer capabilities with the 600000kcal Thermic Fluid Heater Gas Fired Heaters. Designed for efficient heat transfer, these gas-fired heaters utilize thermic fluid as the heat transfer medium. With a capacity of 600000kcal, they provide reliable and consistent heat for various industrial applications. The gas-fired operation ensures cost-effectiveness and reduced environmental impact. Trust the Thermic Fluid Heater Gas Fired Heaters to deliver clean and efficient heat transfer, enhancing productivity and energy efficiency in your operations. Experience reliable and high-quality heat transfer with these advanced gas-fired heaters.

YLW thermal oil heater is square coil horizontal chain grate shop-assembled heater, chain grate and heater proper are transferred separately. It adapts chain grate to realize mechanical feeding coal, mechanical venting by blower and induced draft fan, and mechanical discharging by slag machine.

Fuel falls on the grate from coal bucket during operating and burning, high temperature smoke enters furnace by passing combustion arch, after radiation heat exchange, smoke enters convection heating surface for convection heat exchange, then goes to waste heat boiler and air heater, at last enters dust collector then is vented into the atmosphere through chimney by induced draft fan.

YY(Q)W series gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

1. High Quality Manufactured Thermal Oil Boiler With ASME Certified, Canada customer use thermal oil heater boiler for sugar making equipment, ciculating high temperature thermal oil through the equipment for indirect heating, gas powered thermal oil boiler at high thermal efficiency, qualification with ISO ASME certificates.
2. Special designed Skid-mounted thermal oil boiler, available to transfer to somewhere for usage. “Plug and Play” Thermal Oil Boiler.

Full automatic PLC ON/OFF controller, free settable thermal operation temperature and working time, automatic temperature control, automatic over-pressure/ over temperature interlock chain stop protection, visible system’s working states (burner’s states, system working pressure/ oil temperature) on screen etc.

Optimize your rubber gloves production line with the efficient and reliable 3M Kcal Thermal Oil Boiler. Specifically designed for rubber gloves production, this boiler utilizes thermal oil as the heat transfer medium. With a capacity of 3M Kcal, it provides precise and consistent heat for various stages of the production process. The Thermal Oil Boiler ensures efficient and reliable heat transfer, enabling optimal quality and production efficiency in rubber gloves manufacturing. Trust this advanced boiler to deliver clean and efficient heat, enhancing productivity and meeting the specific requirements of the rubber gloves production line. Experience reliable and high-quality heat transfer for your rubber gloves production operations.

Gas Lpg Diesel Fired Thermal Oil Boiler Thermal Liquid Fluid Heater in Vertical in Horizontal

YYQL series Vertical gas oil fired thermal oil boiler is packed and full automatic thermal oil boiler, adopts three-pass structure, full corrugated coil. The heat carrier is heat conduction oil, rated working pressure 1.1MPa, working temperature ≤350℃. After boiler arriving at users’ site, only need to consider to fill the heat conduction oil, connect fuel (gas or oil) and electricity source.

Elevate your bitumen plant operations with the efficient and reliable Gas Fired Thermal Oil Boiler. Specifically designed for bitumen plants, this boiler utilizes gas as its fuel source to provide precise and consistent heat. With a capacity of 120,0000Kcal, it ensures optimal heat transfer for bitumen production and processing. The Gas Fired Thermal Oil Boiler enhances productivity and efficiency in bitumen plants, delivering clean and efficient heat. Trust this advanced boiler to meet the demanding requirements of bitumen production, ensuring high-quality output. Experience reliable and high-quality heat transfer for your bitumen plant operations.

YY(Q)W series adopting high quality corrugated coil to carry the heat conduction oil, increase the heat transfer area, reasonable gap between coil tubes to fit the hot expansion and cold contraction . Average coil tubes’ working life more than 17years.

YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

Optimize your textile dyeing processes with the efficient and reliable 2100kw Thermic Fluid Heater. Specifically designed for textile dyeing applications, this heater provides efficient heat transfer using thermic fluid as the medium. With its 2100kw capacity, it meets the heat requirements of textile dyeing processes, ensuring precise and consistent temperature control. The Thermic Fluid Heater enhances productivity and efficiency in textile dyeing, delivering clean and efficient heat transfer. Trust this advanced heater to meet the demanding requirements of textile dyeing, ensuring high-quality results. Experience reliable and high-quality heat transfer for your textile dyeing operations.

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.Quick-setting high strength refractory material,have strong power of solidification and long using cycle.it does not shake off.
2.Integrated and wiring device,more convenience for the wire connection,make overhaul more simply,elegant appearance after installation
3.Double-deck aluminum silicate for heat preservation,the surface temperature of the boiler is no higher than 40℃,energy conservation and efficient
4.Design of angular and smooth surface of outsourcing panel,prevent the injury accident when checking the equipment
5.The outer oil collecting box is designed to prevent the slow rate of grease from carbonizing avoid air leakage
6.Double seal groove design, secondary prevent air leakage design, tight seal, avoid air leakage
7.Unique coil tube repair and integration process, the disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
8.Boiler multistage energy saving device design (the tail can set air preheater, wasted heat boiler,economizer),low smoke exhaust temperature, improve boiler efficiency 10%

Advantages
1.Double seal groove design
Secondary prevent air leakage design, tight seal, avoid air leakage
2.Unique tail heating surface design
Boiler rolling chamber wet back structure,small boiler heat loss,avoid overheat caused by over-burning of side panels, and increase thermal efficiency by 2-3%.
3.Unique coil tube repair and integration process
The disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
4.Boiler multistage energy saving device design
The tail can set air preheater, wasted heat boiler,economizer,low smoke exhaust temperature, improve boiler efficiency 10%
5.Design of angular and smooth surface of outsourcing panel
Prevent the injury accident when checking the equipment
6.Triple coil,three-pass smoke,fire wrapped in oil structure design,
Large radiant heating furnace,high thermal efficiency of the boiler,prevent the boiler shell from firing deformation at the high temperature
7.Research PCL control board independently,strong compatibility
PLC intelligent touch screen equipment,10-inch touch screen,fool-type operation,safe and reliable,automatic ignition/flame-out/fire switch,high fired gas,low pressure protection,gas leakage protection
8.Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable
9.60years’precipitation,mature production technicians team,good matching among the set of equipment,technology skilled,stable quality
10.material supplied by large international factory,manufactured by Anyang Iron Steel and Tianjin Seamless Steel Pipe plant,ensure the quality

YYQW horizontal thermal oil boiler / 200kw-14000kw boiler / three-coil oil heater, high efficiency thermal oil boiler, 100% safety ensurance.
most used in textile, bitumen, plywood, gloves, textile, asphalt, foods, heating tanks, heating crude oil, oil refinery…..

Small diesel gas fired thermal oil heater boiler, also named thermic fluid heater. 200000kcal thermal capacity 240kw thermal oil boiler for oil mill. Thermal oil heating system, temperature in 250degree.

YYQW series diesel gas fired thermal oil heater boiler, horizontal three pass three coils thermal oil heating system. 7000kw 6million kcal thermal oil boiler for oil gas field.

Gas/Diesel Thermal Oil Boiler
YYQW series thermal oil boiler, adopt horizontal chamber combustion three-coil structure, its body is composed of outer oil, middle oil, inner oil and rear oil.

YY (Q) W series thermal oil boiler is a kind of boiler which uses gas(oil) as fuel ,thermic oil as medium, hot oil circulation pump to make the medium to forced circulation, deliver the heat to heating need equipment and then go back to the heating furnace.It can obtain a high operating temperature at low pressure and can do high-precision control on the medium.
1.Quick-setting high strength refractory material,have strong power of solidification and long using cycle.it does not shake off.
2.Integrated and wiring device,more convenience for the wire connection,make overhaul more simply,elegant appearance after installation
3.Double-deck aluminum silicate for heat preservation,the surface temperature of the boiler is no higher than 40℃,energy conservation and efficient
4.Design of angular and smooth surface of outsourcing panel,prevent the injury accident when checking the equipment
5.The outer oil collecting box is designed to prevent the slow rate of grease from carbonizing avoid air leakage
6.Double seal groove design, secondary prevent air leakage design, tight seal, avoid air leakage
7.Unique coil tube repair and integration process, the disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
8.Boiler multistage energy saving device design (the tail can set air preheater, wasted heat boiler,economizer),low smoke exhaust temperature, improve boiler efficiency 10%

Advantages
1.Double seal groove design
Secondary prevent air leakage design, tight seal, avoid air leakage
2.Unique tail heating surface design
Boiler rolling chamber wet back structure,small boiler heat loss,avoid overheat caused by over-burning of side panels, and increase thermal efficiency by 2-3%.
3.Unique coil tube repair and integration process
The disk is compact and no gap,there is no smoke short circuit,long gas flow, heated fully, high efficiency
4.Boiler multistage energy saving device design
The tail can set air preheater, wasted heat boiler,economizer,low smoke exhaust temperature, improve boiler efficiency 10%
5.Design of angular and smooth surface of outsourcing panel
Prevent the injury accident when checking the equipment
6.Triple coil,three-pass smoke,fire wrapped in oil structure design,
Large radiant heating furnace,high thermal efficiency of the boiler,prevent the boiler shell from firing deformation at the high temperature
7.Research PCL control board independently,strong compatibility
PLC intelligent touch screen equipment,10-inch touch screen,fool-type operation,safe and reliable,automatic ignition/flame-out/fire switch,high fired gas,low pressure protection,gas leakage protection
8.Large load imported burner configuration
80% configuration ratio,light load drive,enough thermal energy import,guaranteed output,reduce equipment use fatigue,extend the service life,the quality of inlet valve group is steady and reliable
9.60years’precipitation,mature production technicians team,good matching among the set of equipment,technology skilled,stable quality
10.material supplied by large international factory,manufactured by Anyang Iron Steel and Tianjin Seamless Steel Pipe plant,ensure the quality

YY(Q)W series of organic heat carrier boiler is quick-fitting forced circulation fuel oil(gas)boiler,this series boiler’s is compact structure,the heating area is constituted by closed coil pipes from inside(or internal and external),inside coil pipes are the radition heating surface.Fuel in inside theinner coil pipe form the combustion chamber,the fuel burn inside and release heat and absorb most of the quantity of heat after radiation heating,high temperature flue gas transfer heat through convection heating surface,then go into the air preheater (or waste heat boiler) to heat the required air(or water) ,the low temperature flue gas from boiler discharge directly to the chimney then to the atmosphere.

Thermal oil heater advantages
1.It is easy and convenient to install the boiler,only setting the boiler on the foundation.
2.Heating surface is formed by round coilers, sufficient arrangement, reducing thermal load of tubes surface to ensure safety.
3.Furnace dimensions is matching with the combustion flame,positive pressure combustion,high radiation heat exchange efficiency.
4.Boiler structure is compact,saving the floor area of boiler room.
5.An air pre-heater or heat recovery boiler is placed behind the boiler to improve the thermal efficiency.
